Hot Air Biomass Type Veneer Dryers Press Machine
The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.
Price
$60,000.00
Product Details
Hot Air Biomass Type Veneer Dryers Press Machine

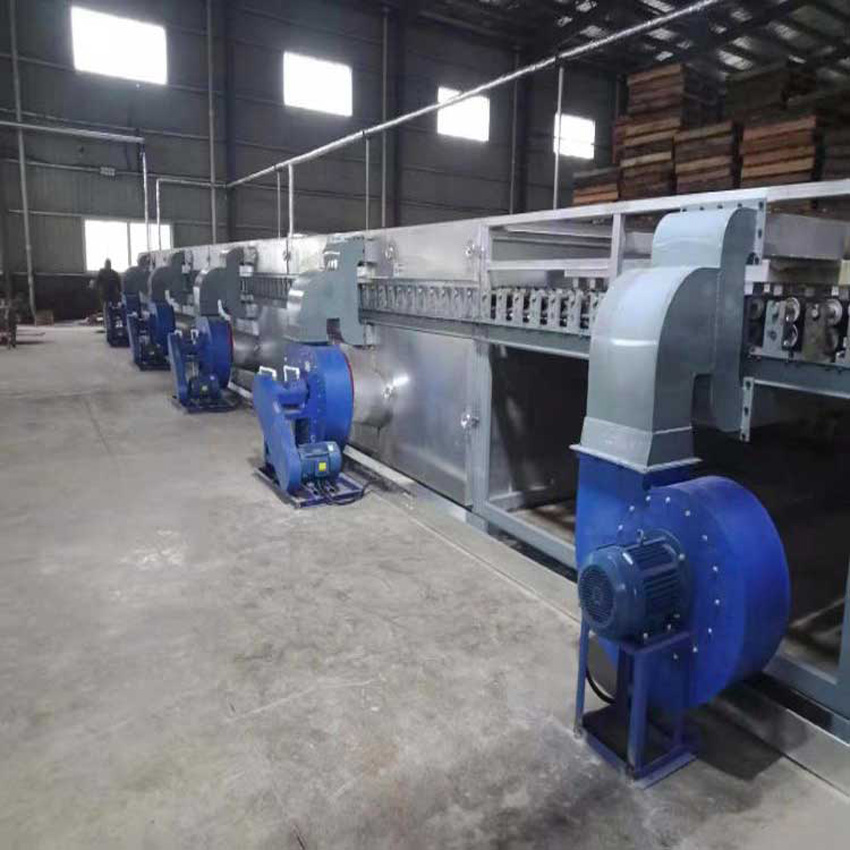

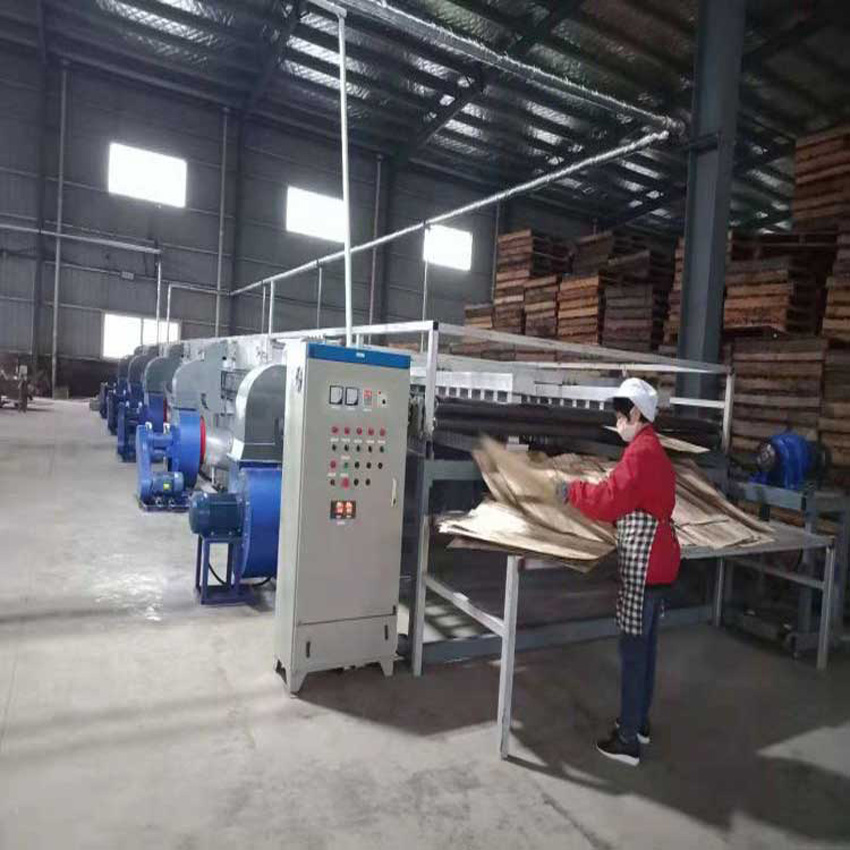

Shine Veneer Roller Dryer is continuous roller veneer dryer for core veneer and face veneer. After veneers are peeled from fresh logs by the peeling machine, the veneer dryer is responsible for reducing the moisture content to a proper condition before gluing for plywood making. The working width and working length of the wood Veneer Drying machine can be customized according to the specific drying capacity requirement needed by the different customers.
Advantages of veneer drying machine
1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
2.The veneer after drying is free of splits and the surface is in good condition for gluing.
3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Parameter Model |
DHS20M
| DHS24M | DHS28M | DHS32M | DHS36M | DHS40M |
Work width（m） | 3 | 3 | 3 | 3 | 3 | 3 |
Deck | 1 | 1 | 1 | 1 | 1 | 1 |
Veneer thickness（mm） | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Heating area （m）
| 16 | 20 | 24 | 28 | 32 | 36 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 0.5-0.65 | 0.65-0.8 | 0.8-1 | 1-1.2 | 1.15-1.35 | 1.3-1.5 |
Heat exhaustion（10000 kcal） | 17.5-23 | 23-28.5 | 28-35 | 35-42 | 40.25-47.25 | 45.5-52.5 |
Total power (kw) | 45 | 50 | 58 | 65 | 73 | 80 |
Overall size LxW（m） | 25*4.5 | 29*4.5 | 33*4.5 | 37*4.5 | 41*4.5 | 45*4.5 |
