Save-energy And High-efficiency Veneer Dryer For Hot Sale
Save-energy ：Optimized structure design and power-customiziable.
Low-carbon ：Diverse heat source and no-smoke.
Safe conduct ：Biomass burner with no pressure.
Cost-effective ：Patent design and low power consumption.
High-quality ：Smooth surface and uniform moisture content.
Product Details

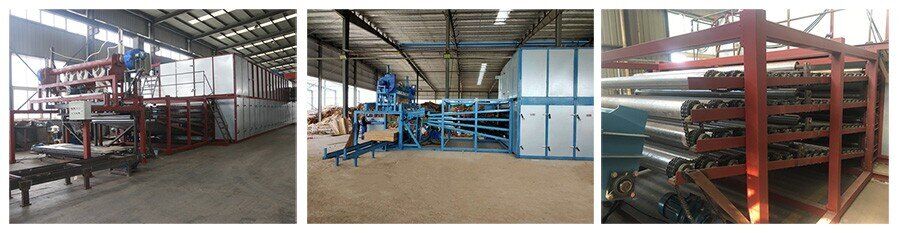

SHINE machinery is the first enterprise to propose the concept of "Green Veneer Production" in China. Established in 1999, specializing in the R&D of core veneer roller type dryer machine, especially veneer production line incluiding wood veneer peeling line to veneer drying line. SHINE veneer roller dryer 0.8-8mm could make sure the uniform moisture of the veneers and smooth surface. SHINE has veneer dryer machine factory which could provide automatic feeder for veneer dryer, professional after-sales services with professional techinic worker to install and guid the operating till the workers could operate the dryer at optimal efficiency and proficiency.
Our mission is to Ensure Your Veneer Quality.

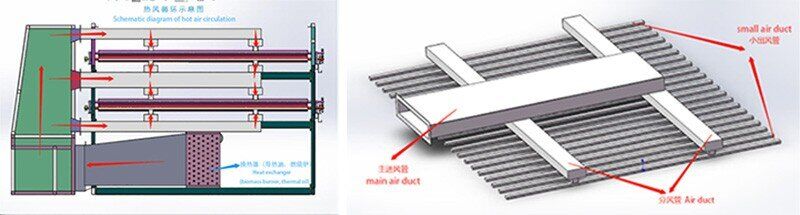

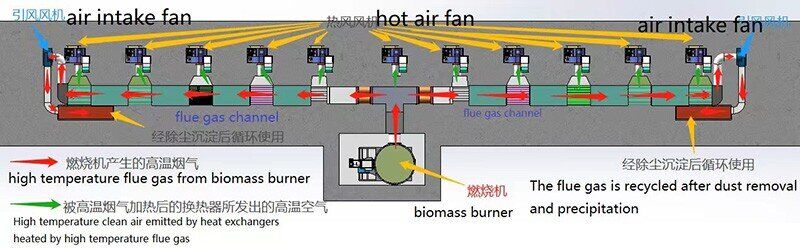

Principle Diagram:
Parameter：
| Model No. | GTH30-40 | Working Width (m) | 3 |
| Deck | 4 | Drying Capacity （m³/day-8 hous） | About126 |
| Heating Area Length (m) | 36 | Cooling Area Length (m) | 4 |
| Applicable Thickness (mm) | 0.8 - 4 | Final Veneer Water Moisture | 0-15% |
| Power of Hot Air Blower (kw) | 4* 18 pcs | Power of Cold Air Blower | 4 * 2 pcs |
| Power of Traction Motoer (kw) | 5.5 * 4 pcs | Power of Air Intake Fan (kw) | 15 * 2 pcs |
| Total Power (kw) | 132 | Actual Electricity Consumption (°) | 79.2 |
| Overal Dimension (m · L * W) | 42 * 4.5 |
Customer：SHINE has a fabulous reputation with our customer base and also gained regular customers. SHINE's equipments have been exported to more than 20 countries, e.g.Latvia, Romania, Brazil, Russia, Thailand, Laos, Malaysia, Indonesia, Cambodia etc.

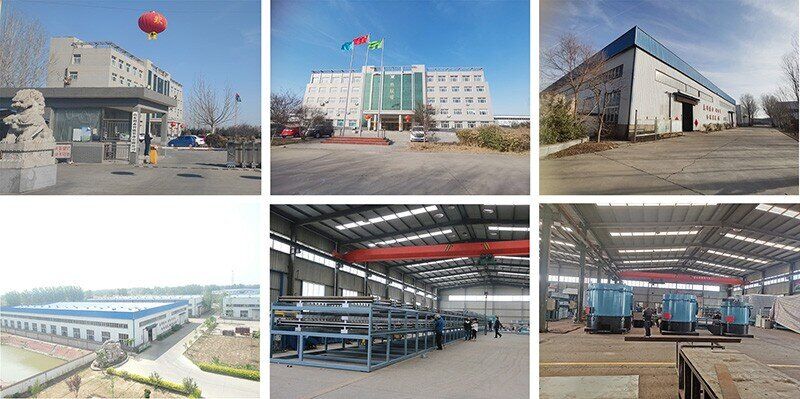

Factory： SHINE has a professional team and over 70000 m^2, ten standard workshops, over 100 sets of production equipments and over 100 professional R&D personnel. We are dedicated to relentless innovation, providing superior solutions.
Certificates：
Packing:
Our service:
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients' special requirement, offering the reasonable plan and design to help select the equipment.
3) Welcome to visit our factory or to see our installtions in any country which convenient to our customer.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the front-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
