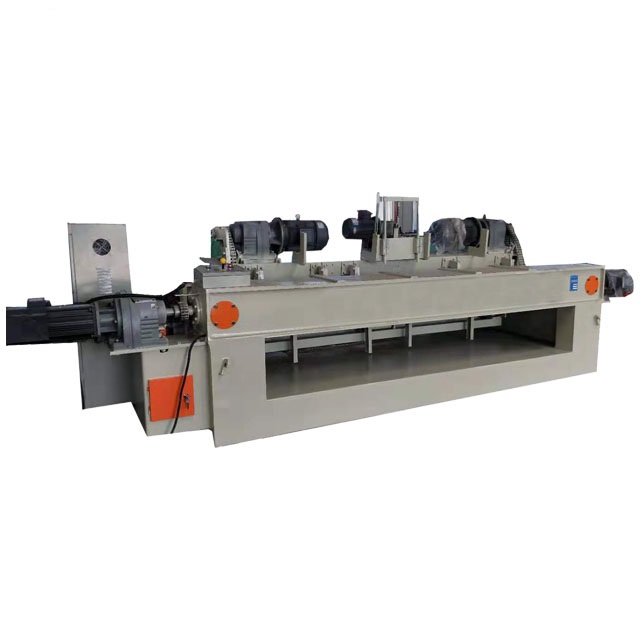

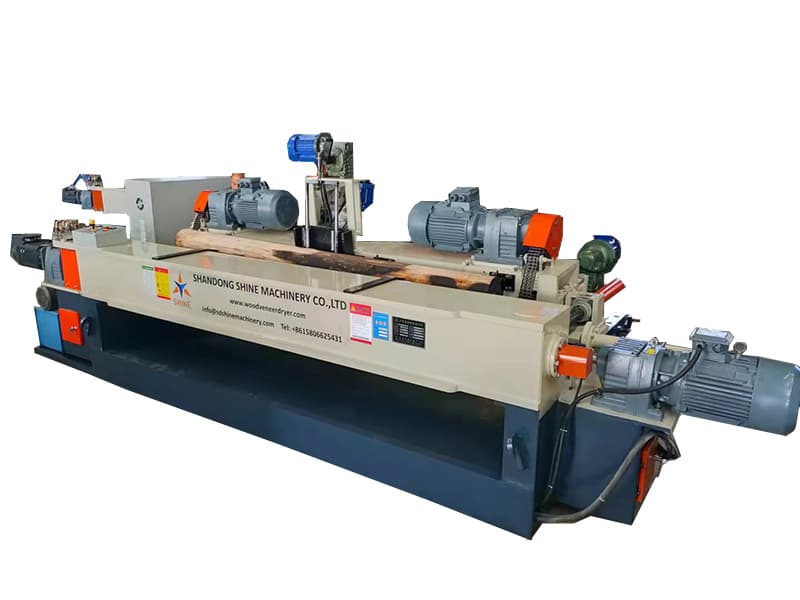

Shine 8ft wood veneer peeling machine
The rotary cutting machine is one of the main equipment for the production of plywood. Rotary cutting machines are divided into carded rotary cutting machines and card-free rotary cutting machines. The carded rotary cutting machine is suitable for large-diameter wood, and the card-free rotary cutting machine is used for small-diameter wood.
Product Details
Product advantages and features
This machine adopts building block installation, fixed knife table, double-row walking structure, thickened lead screw, oil-immersed light rod, and automatic adjustment of the knife gap. It is more stable when rotary cutting wood and the board output is more uniform.The emergence of rotary cutting machines not only improves the quality and precision of veneer production, but also greatly improves production efficiency and the automation of the entire machine.
Main technical parameter
8 feet double row rotary cutting machine parameters | ||
| Name | Unit | Parameter |
| Rotary cut log lengt | mm | 1300-2800mm |
| Rotary cut log diameter | mm | Max550mm |
| Rotary cutting thickness range | mm | 0.4-3mm |
| Main machine linear speed | m/min | 40-80m |
| Remaining wood core | mm | 32 |
| Main and auxiliary motor power | KW | Main double roller motor 11*2 Main single roller motor 11*2 Feed 11KW motor servo shearing motor 4KW Rubber roller transmission motor 4KW |
| Double rod diameter | mm | 124 |
| Single rod diameter | mm | 100 |
| Reducer model | R87 | The host adopts an enlarged reducer |
| Equipment size | mm | 6200mm-2300mm-1600mm |
| Equipment curb weight | kg | 9000 |
Certification
CustomerVisiting
Exhibition

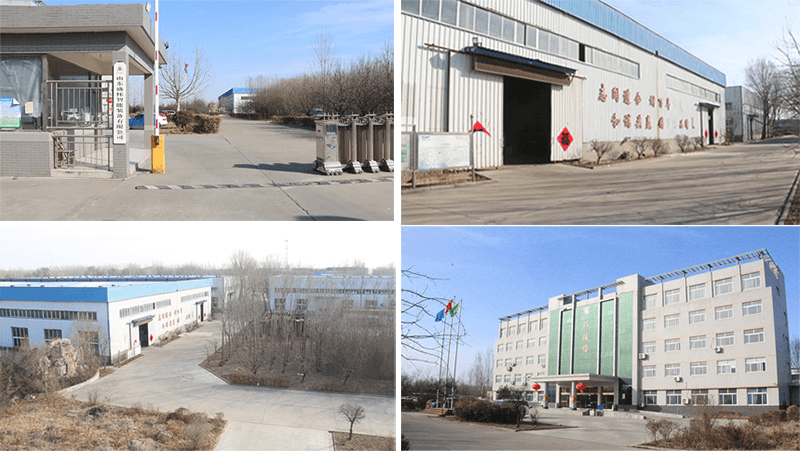

Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging. Door to door service is possible.
