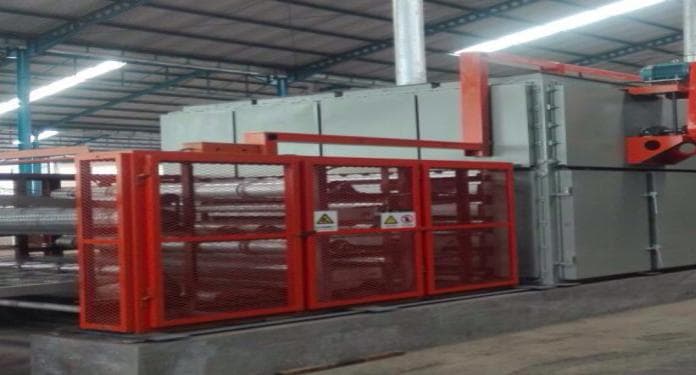

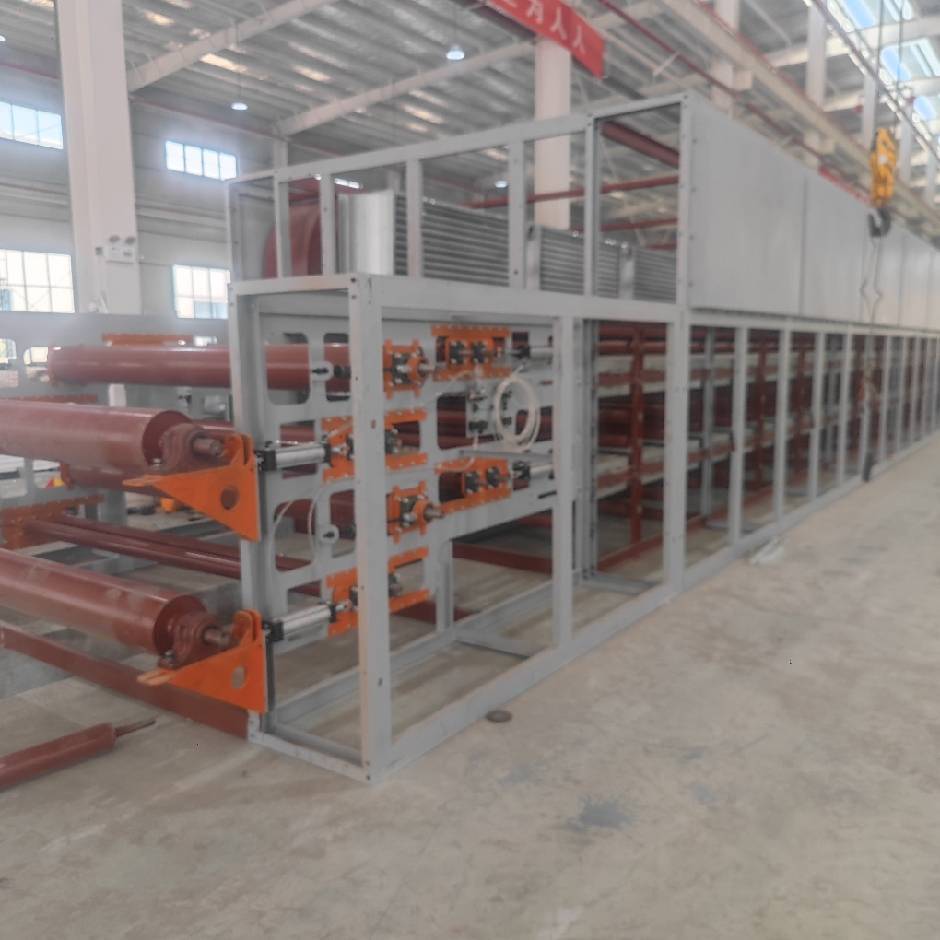

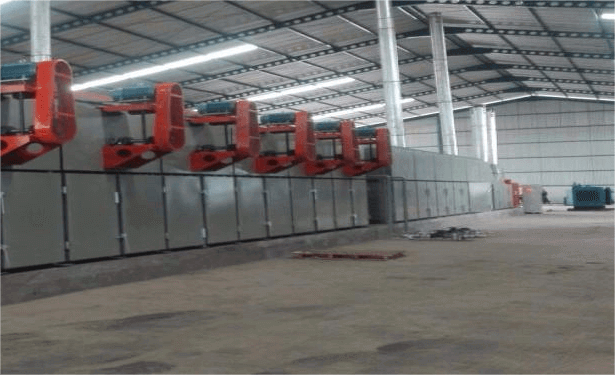

Mesh belt veneer drying machine
Mesh belt dryer is a drying equipment that uses galvanized steel mesh as a conveyor belt to carry materials for continuous drying. Since the conveyor belt is mesh-shaped, it is most suitable for drying various regular materials like wood face veneer. This machine can be used in conjunction with other equipment and can also be used alone.
Product Details
Product Advantages
It adopts of galvanized steel mesh belt, more easy to withstand high temperature is suitable for drying 1mm below of the very thin board, hot air fan uniform blowing, board drying heating more uniform, dryer internal temperature can reach 150-180 degrees, according to the water content requirements of drying speed control, frequency conversion control.
Product Main Technology Parameter
Model | WKL-30 |
Working length | 3000mm |
Working Layer | 3 |
Heating Area | 12pcs×3000mm=36000mm |
Cooling Area | 2pcsX3000mm=6500mm |
Veneer Feeding Length | 8000mm （manual loading） |
Natural Cooling Length | 7000mm |
Total power | 173kw 380v50hz |
Transmission Motor | 11kw×3pcs=33kw (frequency control) |
Heating Blower | 7.5kw×12pcs=90kw |
Cooling Blower | 5.5kwX2pcs+3kw×2pcs=17kw |
Forced moisture exhaust fan | 4kw×1pcs=4kw 4kw×2pcs 5.5kw×2pcs=29kw |
Transmission Speed | 1-20m/min |
Heating Medium | Hot air stove 3pcs |
Drying Temperature | 150-180℃ |
Heat Exhausted | About2,200,000kcal |
Drying thickness | 0.2-4mm |
Initial Veneer water content | 60% |
Finished water content | 10±2 |
Drying Capacity | 2.3-2.8m³/h |
Mesh belt material | Galvanized |
Overall Size | L57.5m×W4.2m×H3.5m |
Overall Weight | About90000kg |
Company Profile
Shandong Shine Machinery Co., Ltd is established in 1999 and we are a large scaled enterprise and specialized in R&D of machinery for veneer production, products are including wood veneer peeling line and veneer drying line. Shine has 10 standard workshops, covering an area of 70,000 square meters and 150 sets of productions, including 6 detailed production lines of machining, heat treatment, punching, welding, assembling and painting. We have a professional R&D team(more than 50 persons for the design) and experienced after-sale service team to supply one-stop solution & customization. Our machines, especially for veneer dryers are enjoying worldwide reputation, have won the CE certificates and been exported to more than 20countries such as Latvia, Thailand, Laos, Malaysia, Cambodia, Myanmar, Brazil, South Africa, South America, Ethiopia, Zimbabwe, The Republic of Congo and etc.
Our Service
We have a professional R&D team that can design different models according to customer’s special requirement.
Also, a perfect after-sale service system, which can supply 24h online service; remote operation is available on request, regular customer visits, sufficient spare parts supply in time.
With decades of growth, SHINE Machinery has continuously improved our equipment based on customer feedback. From our 1999 debut dryer to today's fourth-gen eco-friendly veneer production line, we're dedicated to relentless innovation, providing superior solutions.
