Plywood Veneer Drying Line For Sale
veneer dryer adopts automatic electric control and frequency conversion system,which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect.Equipped with automatic veneer feeder and automatic collection system,which not only improves the drying efficiency but also saves labor cost mostly.
Price
$90,000.00
Product Details
Plywood Veneer Drying Line For Sale
Core veneer dryers is designed to dry core dry press plywood,hardwood veneer plywood and other plywood with the jet box and the pressing feed rolls.Our brand veneer dryer has always been famous for producing high quality veneer with uniform dry moisture content. Dryer is based on the heat exchange principle,using the heat generated by the power supply for heating.It is the heat cycle generated by the continuous suction of the exhaust fan.The whole machine can be divided into two parts:heating section and cooling section.We also can do other type veneer dryer such as 1 Deck Veneer Dryer.Face Veneer Dryer,Core Veneer Dryer,Automatic Veneer Feeder,4 Deck Veneer Dryer,2 Deck Veneer Dryer.We can design the veneer dryer according to the needs of our customers.The veneer dryers machine have to be used together with wood chipper,as the wood chips size can't be larger than 5cm.
Advantages of Veneer Drying Machine
1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
2.The veneer after drying is free of splits and the surface is in good condition for gluing.
3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Parameter Model |
DHS44M
| DHS48M | DHS52M | DHS56M | DHS60M |
Work width(m) | 3 | 3 | 3 | 3 | 3 |
Layer | 2 | 2 | 2 | 2 | 2 |
Veneer thickness(mm) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area (m)
| 40 | 44 | 48 | 52 | 56 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 2.7-3.1 | 3-3.3 | 3.2-3.5 | 3.5-3.8 | 3.8-4.1 |
Heat exhaustion(10000 kcal) | 94.5-108.5 | 105-115.5 | 112-122.5 | 122-132 | 132-143 |
Total power (kw) | 154 | 169 | 180 | 198 | 209 |
Overall size LxWxH(m) | 44*4.5*2.27 | 48*4.5*2.27 | 52*4.5*2.27 | 56*4.5*2.27 | 60*4.5*2.27 |

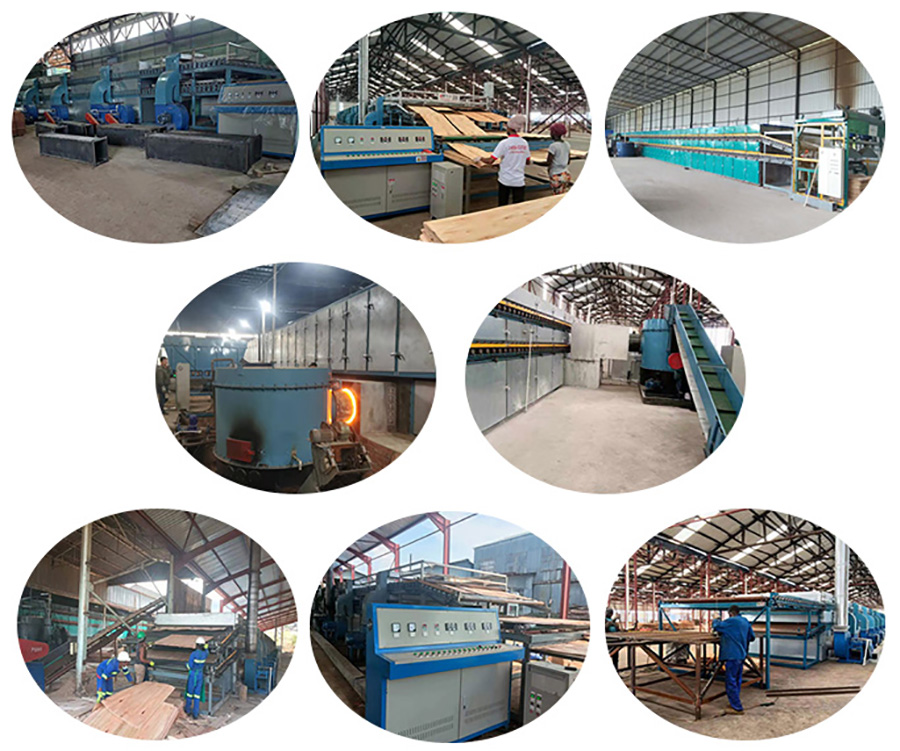

Customer Case
