High Productivity Veneer Dryer For Plywood
Shine biomass veneer dryer has the features of high productivity, energy efficiency, lowest drying cost and perfect drying effect. The composite cost is only about $6-12/cubic meter, which can improve customers profit space greatly.
Price
$90,000.00
Product Details
High Productivity Veneer Dryer For Plywood
The continuous jet dryer is designed to handle the drying process of face veneer,back veneer,and long core veneer.To process the surface veneer and long core veneer,this veneer dryer can avoid the break of the veneer,they can raise the veneer utilization ratio and production output.All outfitted air blower and screen are high-quality production,so they can increase the durability and useful life cycle of the machine.The biomass burner which as the heat source can provide high temperature to the dryer to make sure the sufficient heat impinged on the wet veneer in an efficient manner.At the same time,the tree bark from debarker and waste veneer from peeling lathe were burned as the fuel directly,which solved the waste accumulation in the veneer plywood making factory.
Advantages of Veneer Drying Machine
1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
2.The veneer after drying is free of splits and the surface is in good condition for gluing.
3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Parameter Model |
DHS44M
| DHS48M | DHS52M | DHS56M | DHS60M |
Work width(m) | 3 | 3 | 3 | 3 | 3 |
Layer | 2 | 2 | 2 | 2 | 2 |
Veneer thickness(mm) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area (m)
| 40 | 44 | 48 | 52 | 56 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 2.7-3.1 | 3-3.3 | 3.2-3.5 | 3.5-3.8 | 3.8-4.1 |
Heat exhaustion(10000 kcal) | 94.5-108.5 | 105-115.5 | 112-122.5 | 122-132 | 132-143 |
Total power (kw) | 154 | 169 | 180 | 198 | 209 |
Overall size LxWxH(m) | 44*4.5*2.27 | 48*4.5*2.27 | 52*4.5*2.27 | 56*4.5*2.27 | 60*4.5*2.27 |

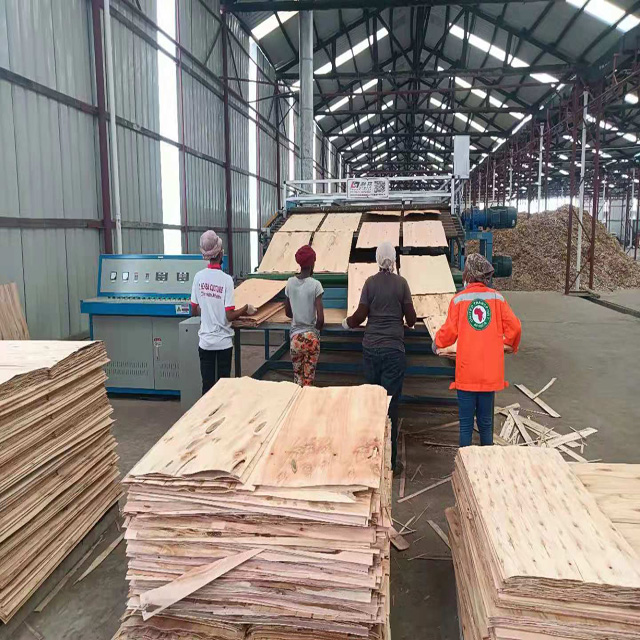

Customer Case
