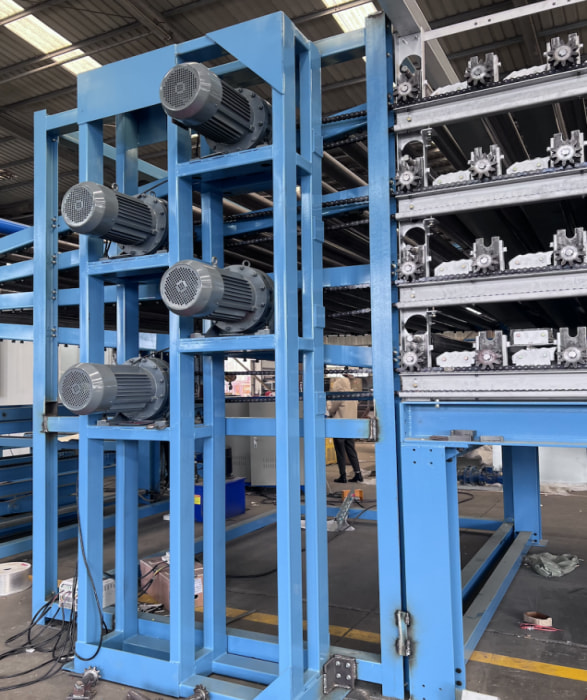

New revolution from the 4-deck roller dryer
Increased capacity: The 4-deck design of the roller type veneer dryer allows for more veneer sheets to be dried simultaneously, leading to a higher production capacity compared to traditional single-deck dryers.
Uniform drying: The multiple decks in a 4-deck roller type veneer dryer ensure that the veneer sheets are exposed to consistent heat and air circulation, resulting in uniform drying across all layers and minimizing the risk of uneven moisture content.
Product Details
Product advantages and feature
Energy efficiency: The controlled environment of a 4-deck roller type veneer dryer allows for precise control over temperature and airflow, optimizing energy consumption and reducing overall operating costs compared to less efficient drying methods.
Improved quality: By offering precise control over the drying process, a roller type veneer dryer helps to maintain the structural integrity and appearance of the veneer sheets, resulting in higher quality output that meets the desired specifications for various woodworking applications.
Main technical and parameter
Parameter Model | DHS34m | DHS36m | DHS38m | DHS40m |
Heating area(m) | 30 | 32 | 34 | 36 |
Working Width(m) | 3 | 3 | 3 | 3 |
Deck | 4 | 4 | 4 | 4 |
Veneer thickness (mm) | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Veneer water moisture | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% |
Drying capacity (m³/day) | About 4.4 cbm | About 4.7 cbm | About 4.96 cbm | About 5.25 cbm |
Total Power | 166KW | 174KW | 182KW | 190KW |
Actual electricity consumption | About 116kwh per hour | About 121kwh per hour | About 127kwh per hour | About 133kwh per hour |
Overall Dimension(L*W) | 38m×5m | 40m×5m | 42m×5m | 44m×5m |
Certification
CustomerVisiting
Exhibition
Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
