Wood Biomass Veneer Dryer Machine

Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect. Equipped with automatic veneer feeder and automatic collection system, which not only improves the drying efficiency but also saves labor cost mostly.


Price
$50,000.00
  Contact Now
Product Details

Wood Biomass Veneer Dryer Machine

Shine Veneer Dryer is renowed for consistently producting and high quality veneer with a uniform dry moisture content. Veneer Drying Machine offer the highest efficiency,save energy,reduce cost and environmental friendly. By adopting latest international pressure contact veneer drying technology. Roller veneer dryer has the advantages of simple operation, safety and practicality, stable operation and easy maintenance.Integrated design of the veneer dryer can greatly improve the utilization rate of the space occupied. The veneer enterprises can do the drying all the times ,which can avoid the wet veneer deterioration due to climate, improve the drying effect.We have professional research team that can design different type Plywood Veneer Dryer accroding to customers requirements.

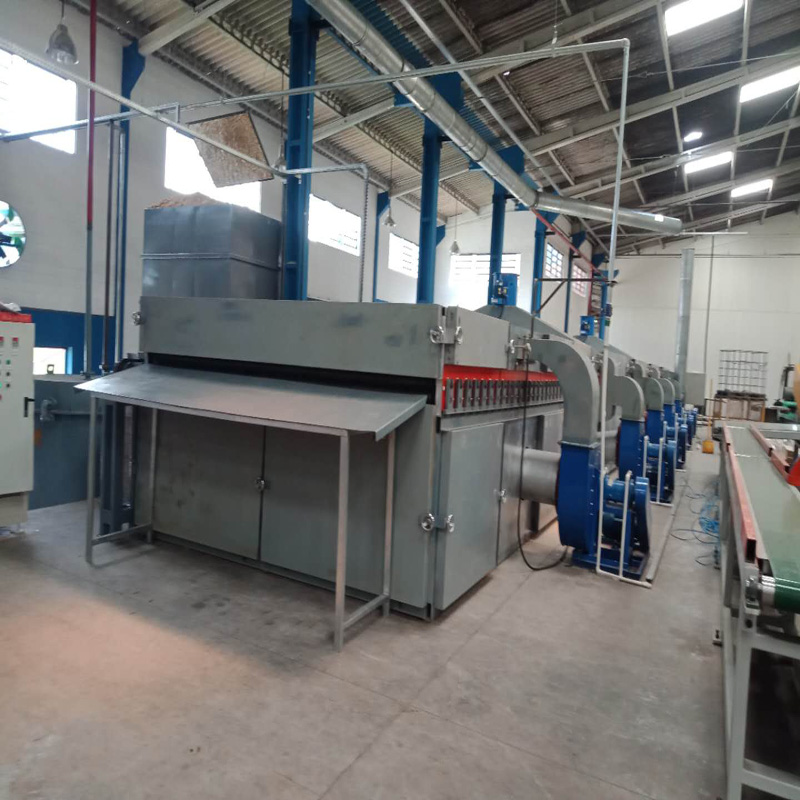

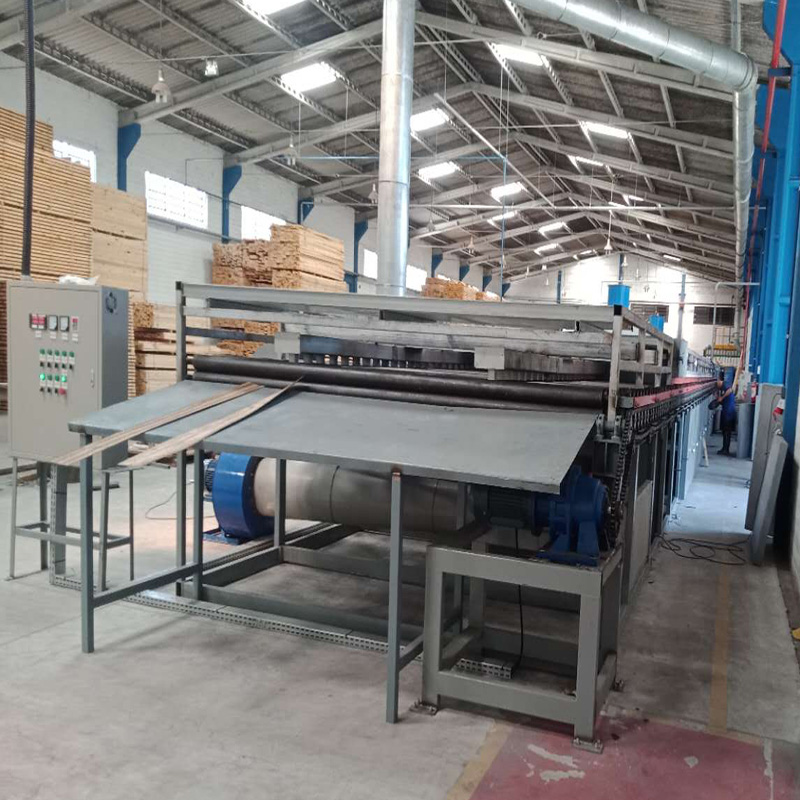

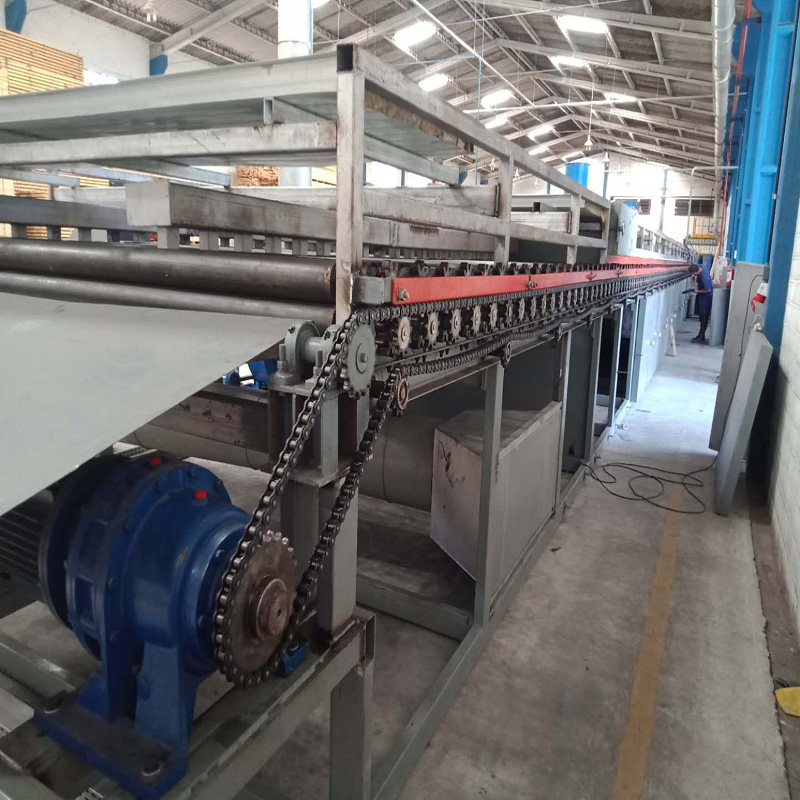

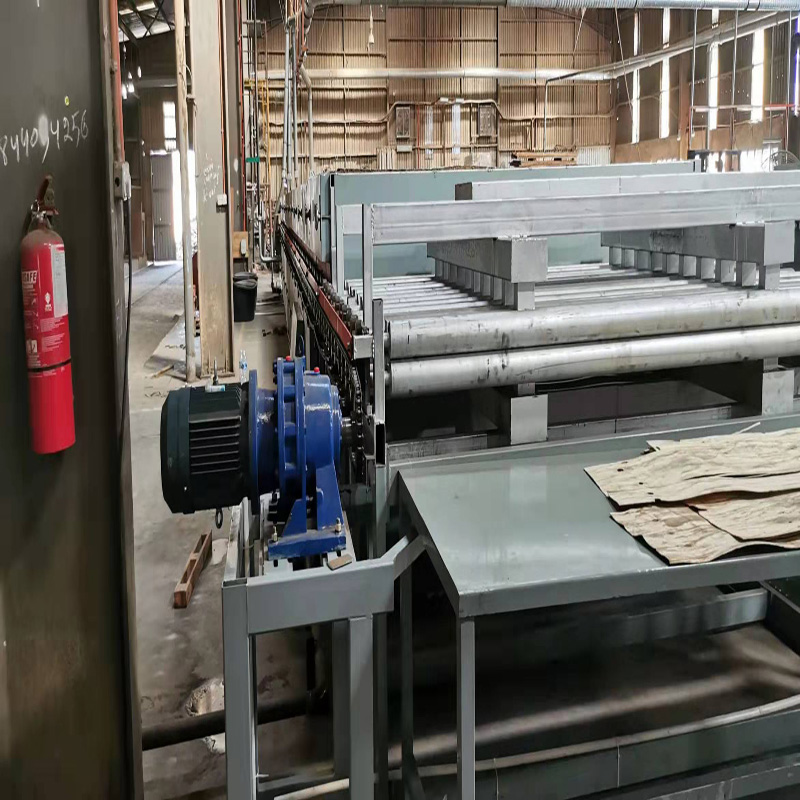

veneer dryer

Veneer Dryer

veneer dryer machine

veneer dryer

Advantages of  Veneer Drying Machine

1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.

2.The veneer after drying is free of splits and the surface is in good condition for gluing.

3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.

4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.

5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.

Parameter

Model



DHS20M



DHS24M

DHS28M

DHS32M

DHS36M

DHS40M

Work widthm

3

3

3

3

3

3

Deck

1

1

1

1

1

1

Veneer  thicknessmm

0.6-8

0.6-8

0.6-8

0.6-8

0.6-8

0.6-8

Heating area m



16

20

24

28

32

36

Cooling area (m)

4

4

4

4

4

4

Initial water content(%)

50-80

50-80

50-80

50-80

50-80

50-80

Finished water content(%)

10

10

10

10

10

10

Drying capacity (m³/h)

    0.5-0.65

0.65-0.8

0.8-1

1-1.2

1.15-1.35

1.3-1.5

Heat exhaustion10000 kcal

17.5-23

23-28.5

28-35

35-42

40.25-47.25

45.5-52.5

Total power (kw)

45

50

58

65

73

80

Overall size LxWm

25*4.5

29*4.5

33*4.5

37*4.5

41*4.5

45*4.5

Company Profile

Company Profile

Shandong  Shine Machinery Co., Ltd.  is a large-scale enterprise specializing in R&D and production of veneer rotary cutting and veneer dryer equipment. Since its inception, the company has been adhering to the vision of “making first-class corporate contributions, building first-rate enterprise talent, creating first-class corporate brand,implementing modern enterprise management system, using new sales concepts and service systems, and investing 10 million yuan in scientific research each year. It also combine industrial universities to study high-end technology, so that Shine's veneer dryer products are always at the forefront of the industry's technology.  Shine roller veneer dryer products are sold to various provinces and cities in the country, and exported to Russia, South Africa, Southeast Asia and many other countries and regions.

certification

exhibition

exhibition

Our Services

Pre-sale services:

1) Provide the free consultation of all  Core Veneer Dryer Machine

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible
