Industrial Roller Veneer Drying Speed
Shine heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger are different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. The veneer after drying has uniform moisture content, flat, no buckle or end waviness; free of splits and the surface is in good condition for gluing.
Price
$70,000.00
Product Details

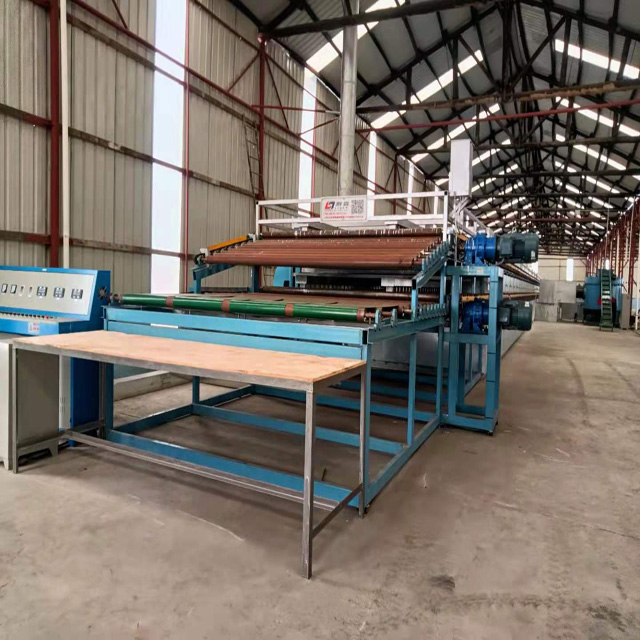

Industrial Roller Veneer Drying Speed
The veneer roller dryer machine is especially for drying core veneer thickness 0.6-8mm. Roller veneer drying machine has an advanced heat exchanging structure with features of high heat exchange efficiency and low heat loss. The core veneer dryer can be heated by a steam boiler, thermal oil heater, or biomass burner which can save the fuel cost the most. The composite drying cost using biomass burner heated roller dryer is about only USD 10 per cubic meter including the labor cost, fuel cost, and electricity.
Advantages of Veneer Drying Machine
1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
2.The veneer after drying is free of splits and the surface is in good condition for gluing.
3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Parameter Model |
DHS44M
| DHS48M | DHS52M | DHS56M | DHS60M |
Work width(m) | 3 | 3 | 3 | 3 | 3 |
Layer | 2 | 2 | 2 | 2 | 2 |
Veneer thickness(mm) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area (m)
| 40 | 44 | 48 | 52 | 56 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 2.7-3.1 | 3-3.3 | 3.2-3.5 | 3.5-3.8 | 3.8-4.1 |
Heat exhaustion(10000 kcal) | 94.5-108.5 | 105-115.5 | 112-122.5 | 122-132 | 132-143 |
Total power (kw) | 154 | 169 | 180 | 198 | 209 |
Overall size LxWxH(m) | 44*4.5*2.27 | 48*4.5*2.27 | 52*4.5*2.27 | 56*4.5*2.27 | 60*4.5*2.27 |
Company Profile
Shandong Shine Machinery Co., Ltd. is a large-scale enterprise specializing in R&D and production of veneer rotary cutting and veneer dryer equipment. Since its inception, the company has been adhering to the vision of “making first-class corporate contributions, building first-rate enterprise talent, creating first-class corporate brand,implementing modern enterprise management system, using new sales concepts and service systems, and investing 10 million yuan in scientific research each year. It also combine industrial universities to study high-end technology, so that Shine's veneer dryer products are always at the forefront of the industry's technology. Shine roller veneer dryer products are sold to various provinces and cities in the country, and exported to Russia, South Africa, Southeast Asia and many other countries and regions.
Our Services
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
Product Packaging
