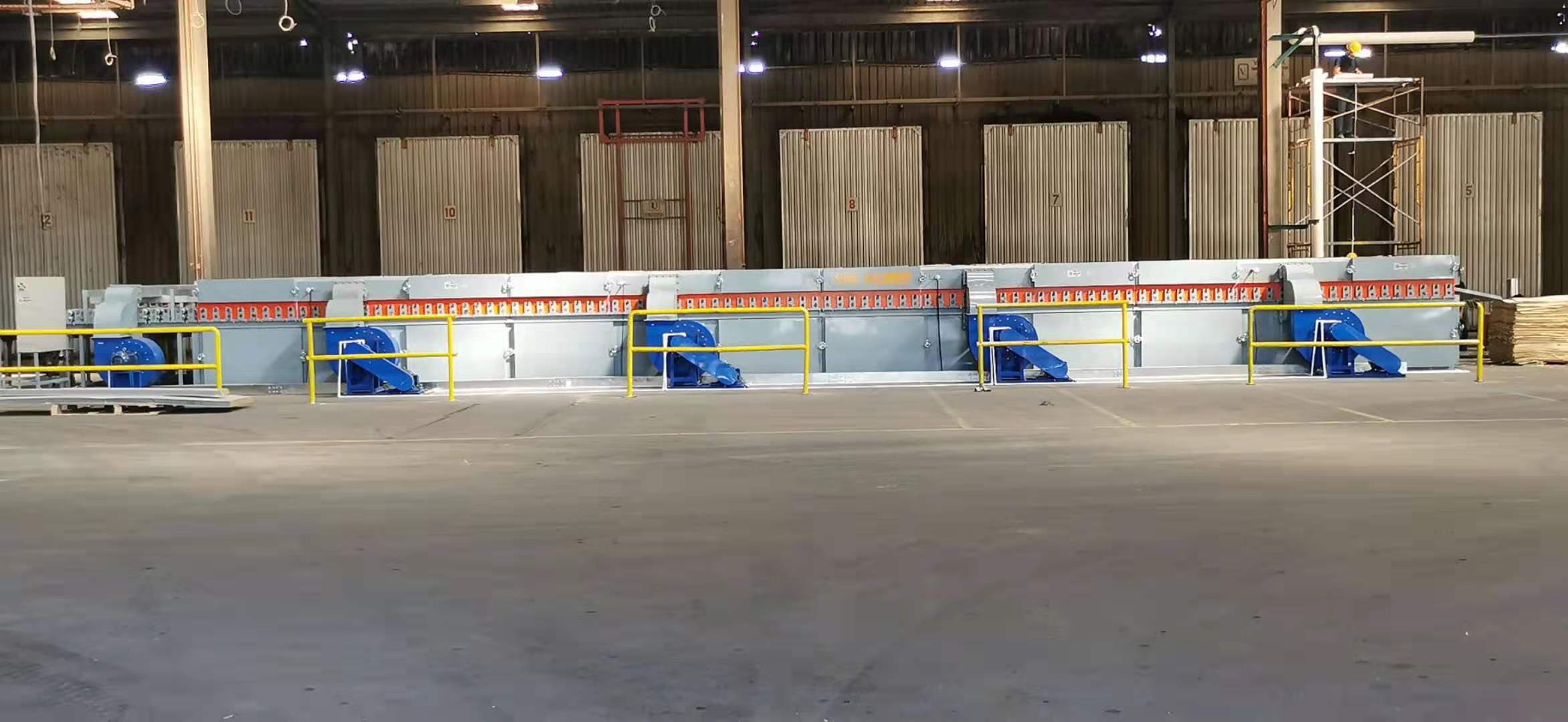

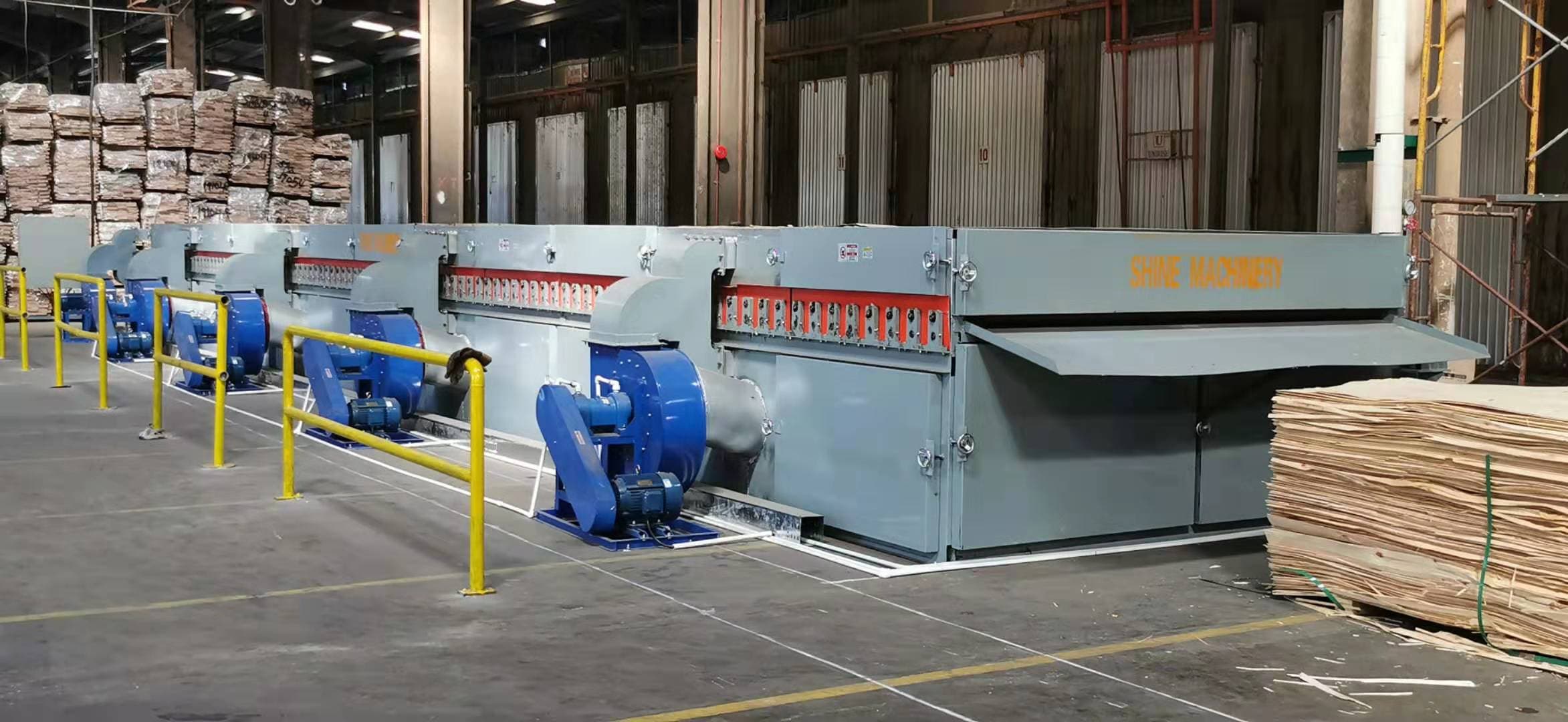

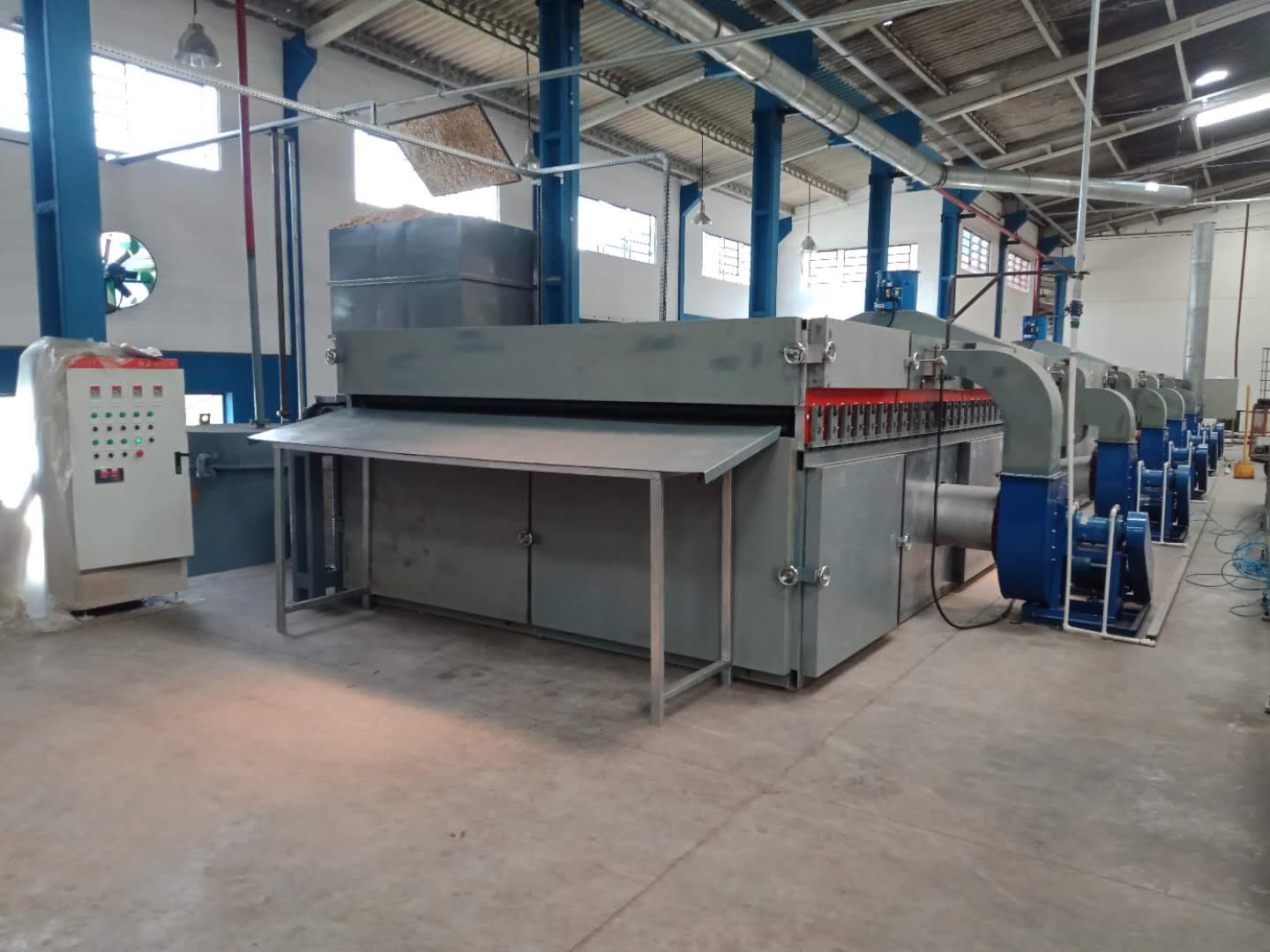

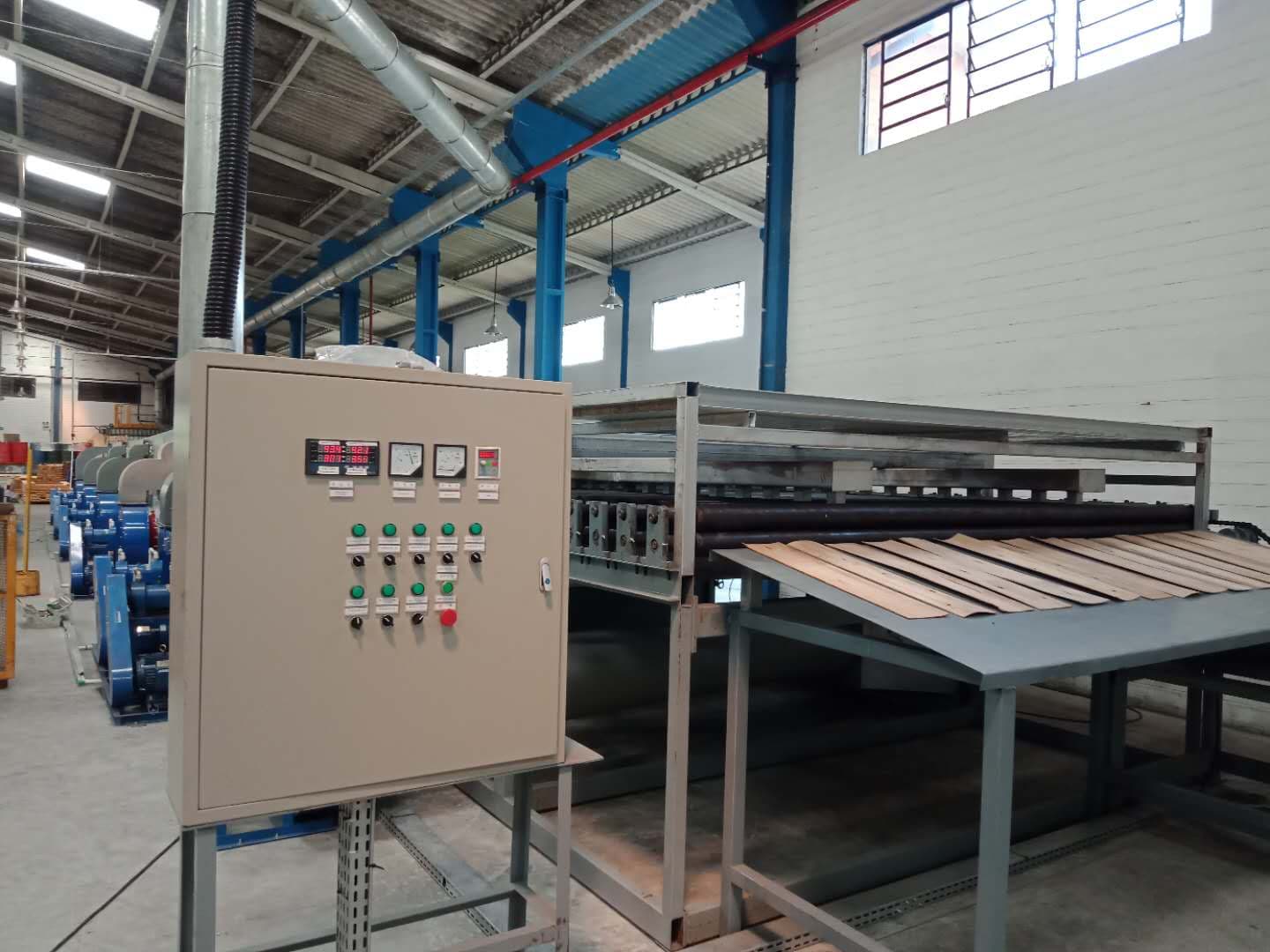

1-deck roller dryer with a 2 ton biomass burner
1-deck roller veneer dryer could output 20-40 CBM according to customers’ different daily drying capacity, the veneer flatness quality could reach A class veneer. The roller type quality is better than natural sun drying that suitable for higher veneer quality demand customers. The biomass burner could burn waste bark and waste branches directly therefore decreasing the combustion costs.
Product Details
Product advantages and features
The 2-ton biomass burner could burn enough heat for 1-deck roller dryer, also saving the combustion cost for customers. The rollers and gears are exposed beside the machien so that could easily and directly maintain in the daily working . The roller dryer deck working width in the picture is 3m, it could customized according to requirements and our proposal. 1-deck roller dryers has advantages of space saving, cost-effectiveness, energy-saving and highly efficient.
Main technical parameter
Parameter Model | DHS34m | DHS36m | DHS38m | DHS40m |
Heating area(m) | 20 | 24 | 28 | 32 |
Working Width(m) | 3 | 3 | 3 | 3 |
Deck | 1 | 1 | 1 | 1 |
Veneer thickness (mm) | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Veneer water moisture | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% |
Drying capacity (m³/day) | About 0.83 cbm | About 1.0 cbm | About 1.2 cbm | About 1.3 cbm |
Overall Dimension(L*W) | 28m×5m | 32m×5m | 36m×5m | 40m×5m |
Certification
CustomerVisiting
Exhibition

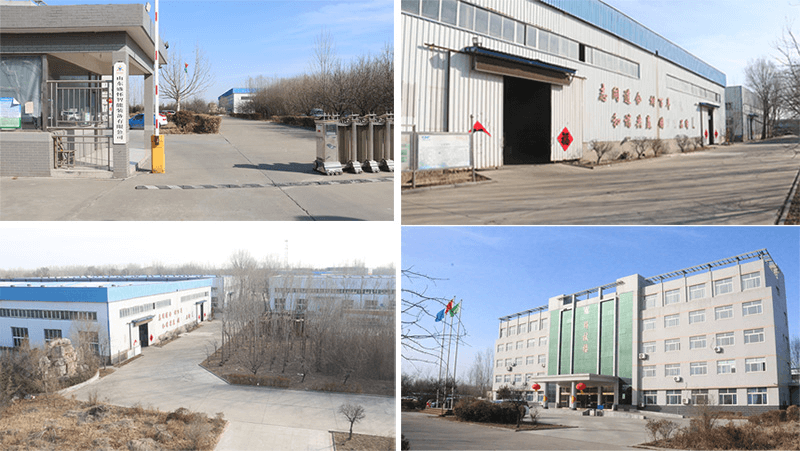

Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
