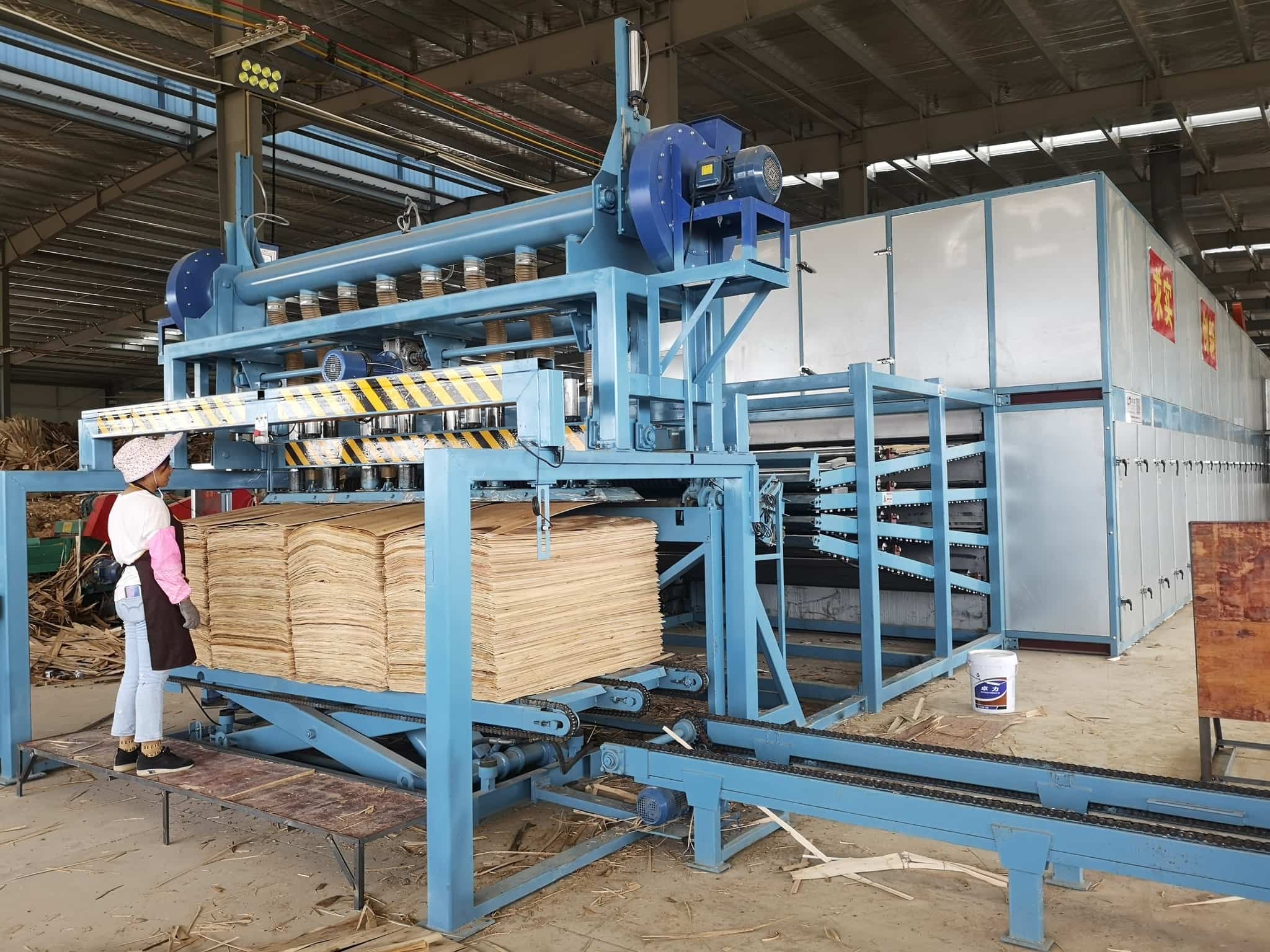

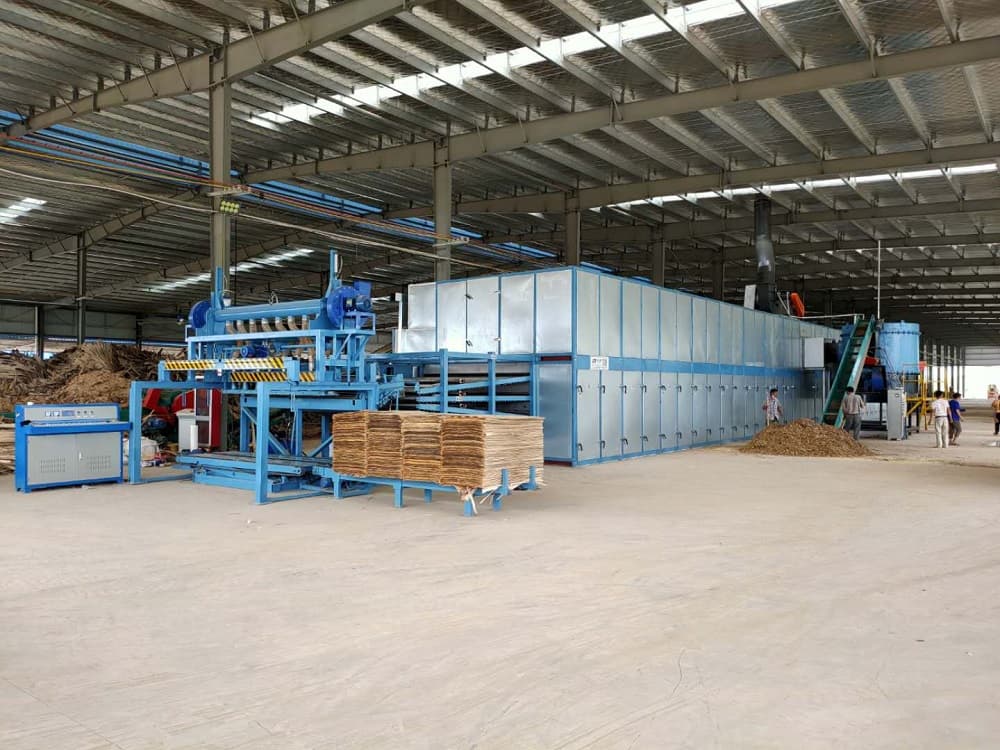

4-deck veneer dryer with automatic loading equipment
It avoids board problems caused by unskilled manual loading, and cooperates with the dryer to dry the veneer more quickly.
Increase production. The working upper limit of manual loading is fixed, but the fully automatic loading machine can set different speeds to match the drying speed of the dryer to maximize production capacity.
Product Details
Product advantages and features
1) Save labor costs. Machines can replace labor to the greatest extent. For example, in countries where labor costs are relatively high, fully automatic plate loading machines will be a better choice.The automatic loading dryer can not only save labor costs, but also increase the daily drying output for customers.The veneer produced by the 4-deck veneer dryer has a uniform moisture content and no wrinkles, can fulfill the standards of Class A veneer.
2) High degree of automation. The fully automatic plate loading machine is matched with the dryer to meet the high automation needs of customers with large output, improving the drying efficiency of veneers while ensuring drying quality.
Main technical and parameter
Parameter Model | DHS34m | DHS36m | DHS38m | DHS40m |
Heating area(m) | 30 | 32 | 34 | 36 |
Working Width(m) | 3 | 3 | 3 | 3 |
Deck | 4 | 4 | 4 | 4 |
Veneer thickness (mm) | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Veneer water moisture | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% |
Drying capacity (m³/day) | About 4.4 cbm | About 4.7 cbm | About 4.96 cbm | About 5.25 cbm |
Total Power | 166KW | 174KW | 182KW | 190KW |
Actual electricity consumption | About 116kwh per hour | About 121kwh per hour | About 127kwh per hour | About 133kwh per hour |
Overall Dimension(L*W) | 38m×5m | 40m×5m | 42m×5m | 44m×5m |
Certification
CustomerVisiting
Exhibition
Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging. Door to door service is possible.
