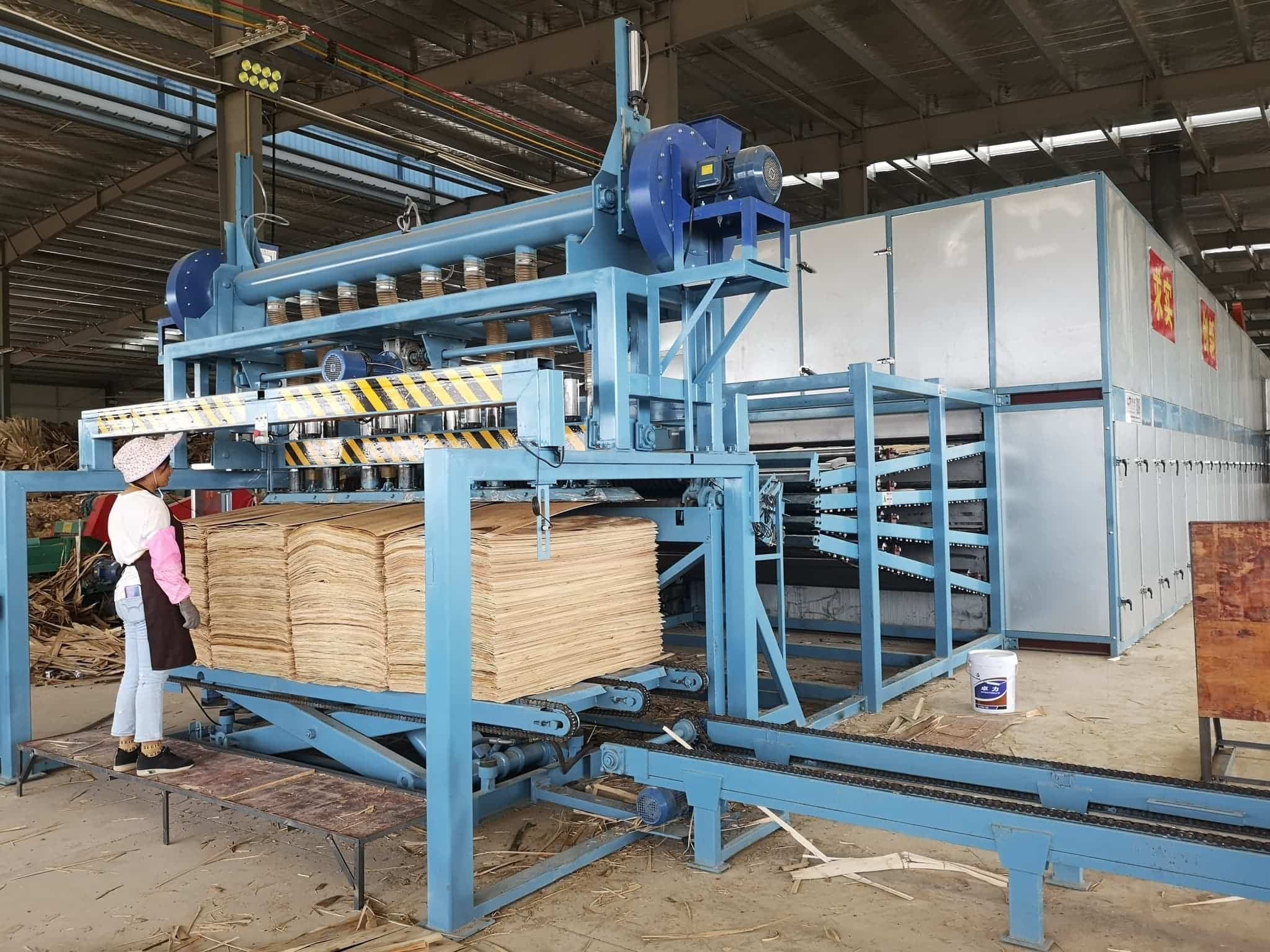

High automation and high efficiency veneer drying machine
This automatic loading machine can be adjusted according to the veneer drying frequency of the dryer. The plate loading speed and drying speed are accurately connected. It is highly automated and improves drying efficiency. Shine It can not only customized to daily output, but also can save energy and electricity, reducing operating costs for customers.
Product Details
Product advantages and features
1.High automation： At present, more and more countries choose highly automated woodworking machinery products, veneer dryer is no exception, people in addition to focus on the quality of the veneer dryer, but also consider saving manpower and other time-consuming factors.
2.High efficiency: the veneer dryer itself is one of the most important functions to improve the drying capacity and to replaced the natural drying. Obviously, it is an essential helper for the veneer manufacturers with large output.
Main technical parameter
Parameter Model | DHS34m | DHS36m | DHS38m | DHS40m |
Heating area(m) | 30 | 32 | 34 | 36 |
Working Width(m) | 3 | 3 | 3 | 3 |
Deck | 4 | 4 | 4 | 4 |
Veneer thickness (mm) | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Veneer water moisture | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% |
Drying capacity (m³/day) | About 4.4 cbm | About 4.7 cbm | About 4.96 cbm | About 5.25 cbm |
Total Power | 166KW | 174KW | 182KW | 190KW |
Actual electricity consumption | About 116kwh per hour | About 121kwh per hour | About 127kwh per hour | About 133kwh per hour |
Overall Dimension(L*W) | 38m×5m | 40m×5m | 42m×5m | 44m×5m |
Certification
CustomerVisiting
Exhibition
Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging. Door to door service is possible.
