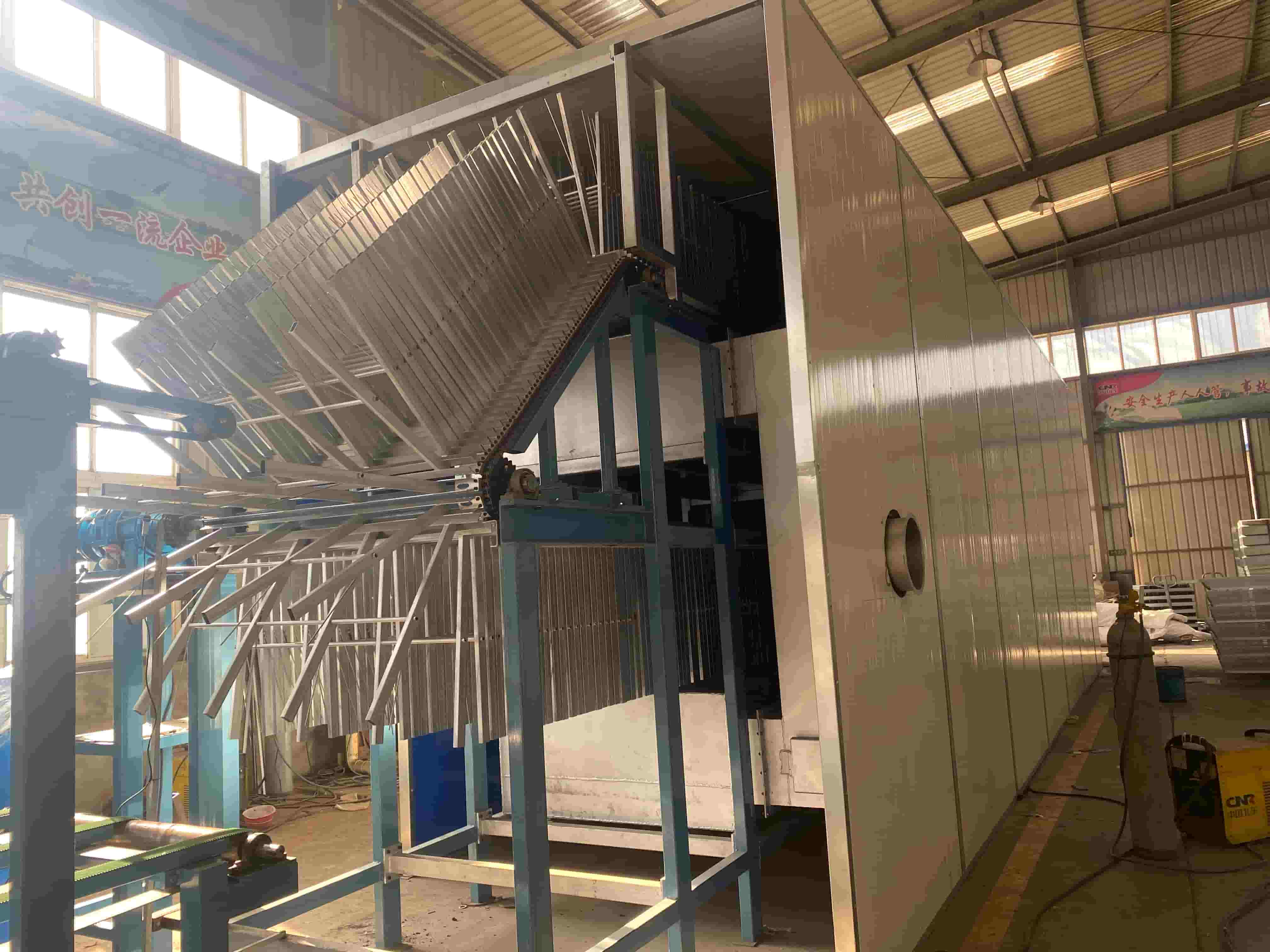

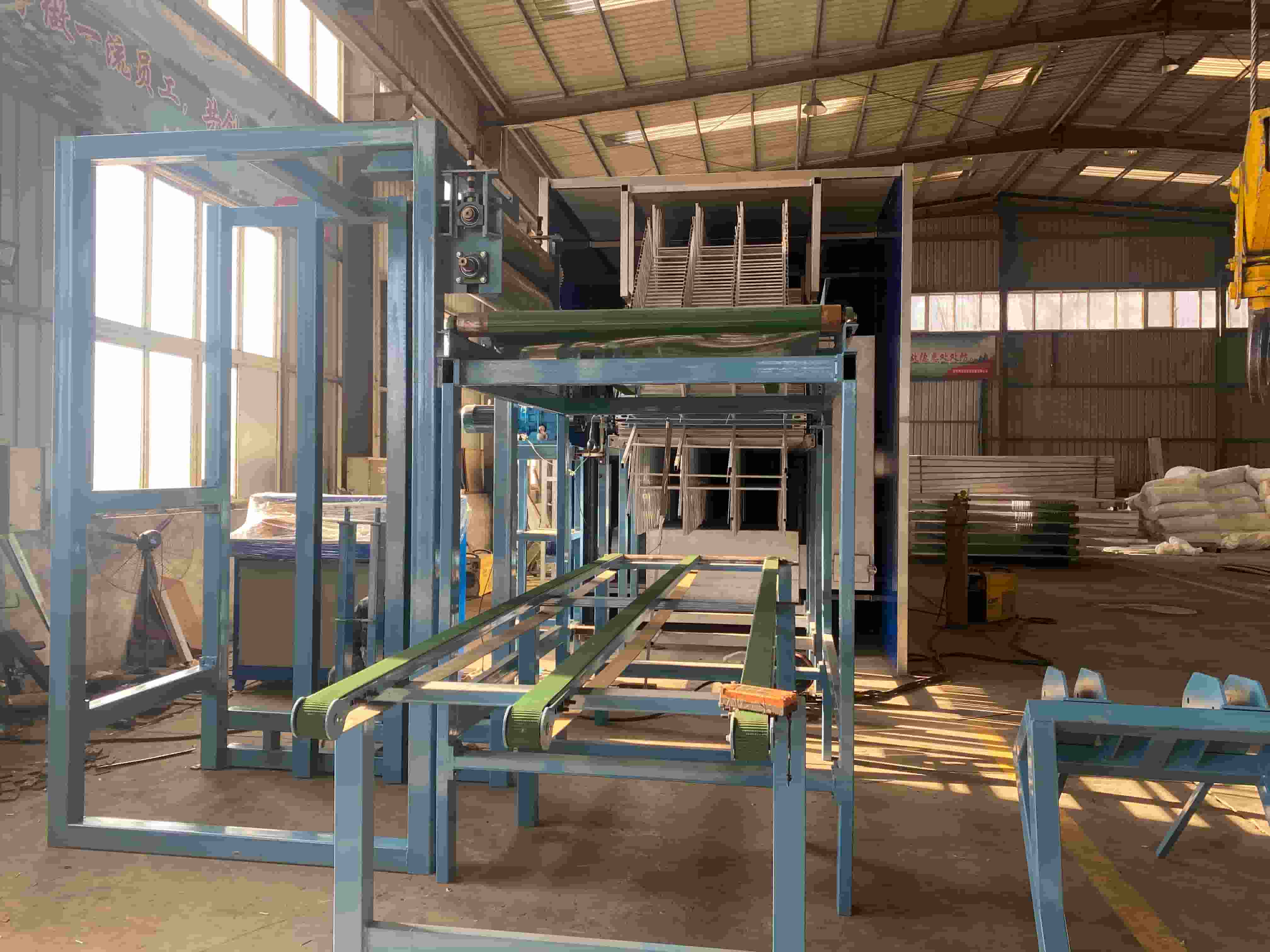

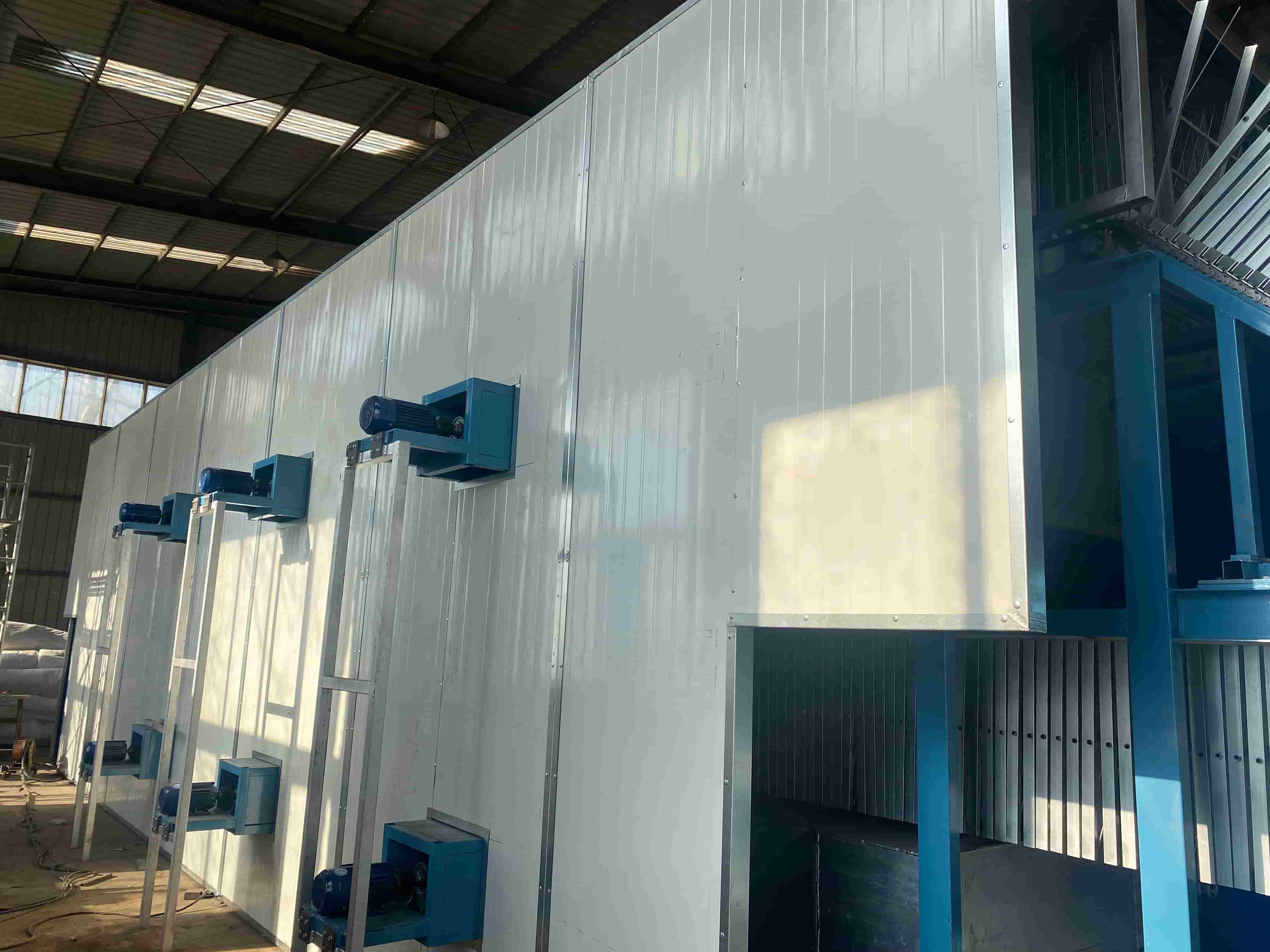

Vertical Veneer dryer for smaller company capacity

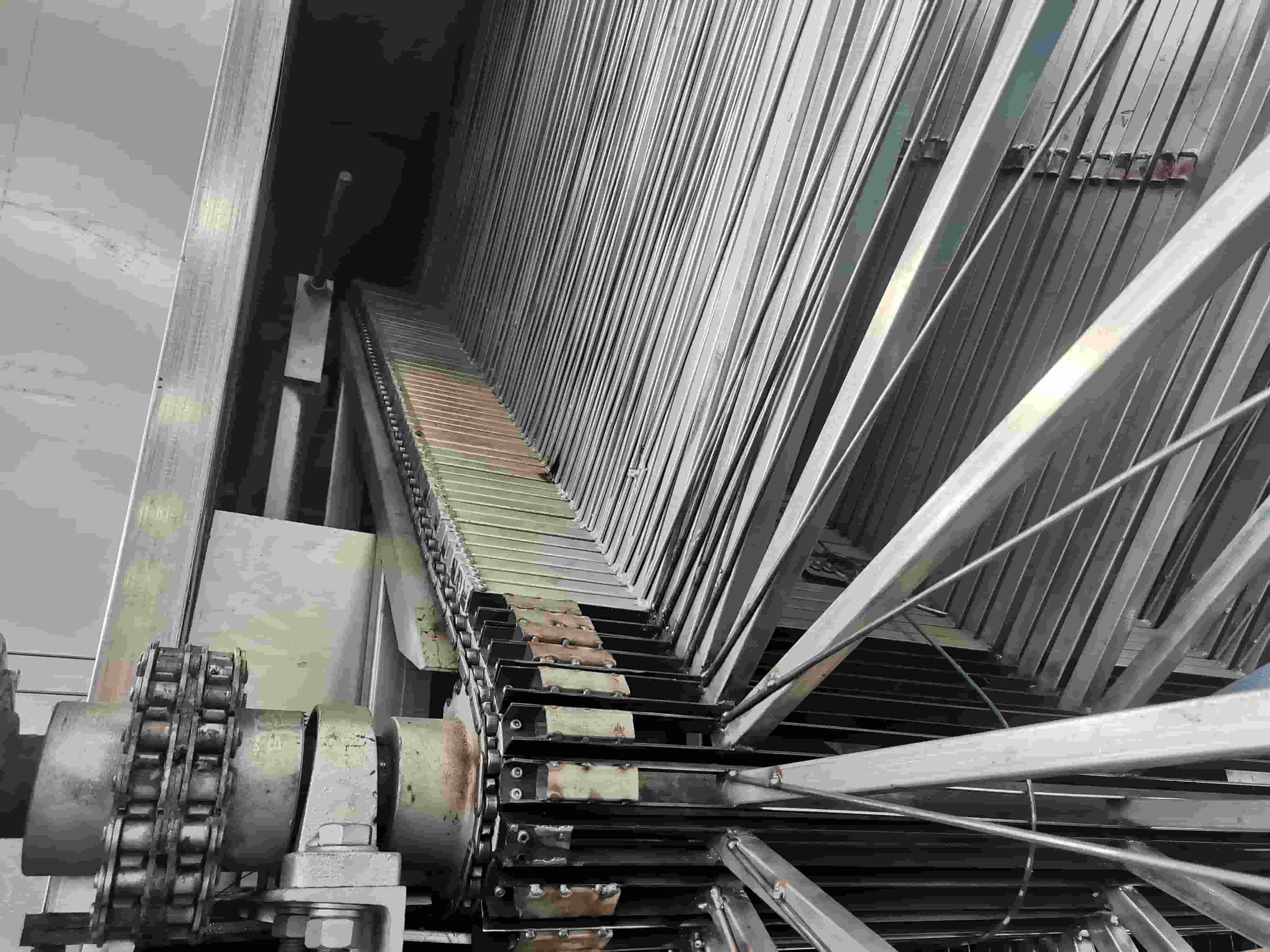

The heat source uses a built-in combustion furnace, which can burn the waste wood handles cut by the rotary peeling machine, saving combustion costs. The temperature of the drying area is 100-130°C, and the temperature is adjustable.With the transmission equipment, they are smoothly transported to the end of the dryer, and then the veneers are stably transported by a special turning mechanism. Unload it into the lower layer.After the veneer is dried, it is transported to the discharge port at the bottom of the dryer and sent out.
Product Details
Product advantages and feature
The vertical dryer by adjusting the drying speed, heating temperature, plate residence time and feeding speed, to achieve the best drying effect;the plate structure, high space utilization rate, When drying, the veneer is turning with the plate, to ensure the consistency of product quality;Unique air separation device, so that the hot air distribution is more coincident with the veneer drying process needs.
Model No | vertical Veneer Dryer（FBH30-10） |
Veneer Water Moisture（%） | Fresh veneer to about 8% |
Veneer size | 1270mmx640mmx1.7mm |
Drying Capacity (m³/H) | 1.5 |
Hot Air Blower（KW） | 6 (600Wx10pcs） |
Traction Motor（KW） | 1.5 |
Air Intake Fan（KW） | 3 |
Built-in Burner（KW） | 1.5 |
Total Power （KW） | 12 |
Actual Fuel Consumption（KG/H） | 150 |
Space Covered About | 10mX3mX4m |
Working Labors | 2-3 |
Certification
CustomerVisiting
Exhibition

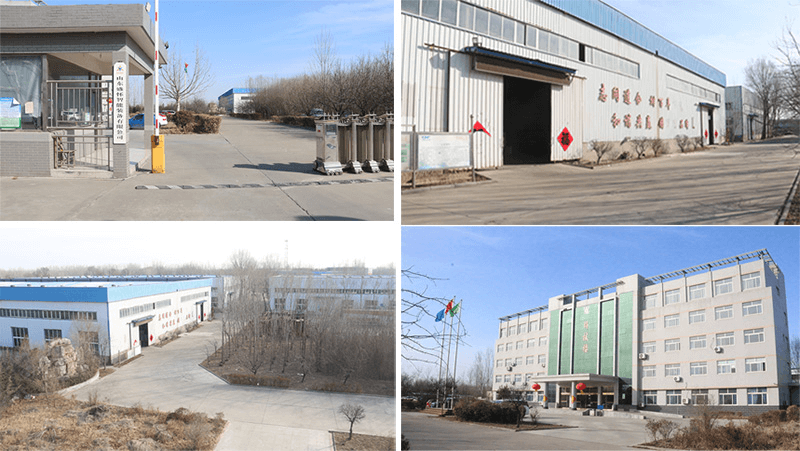

Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
