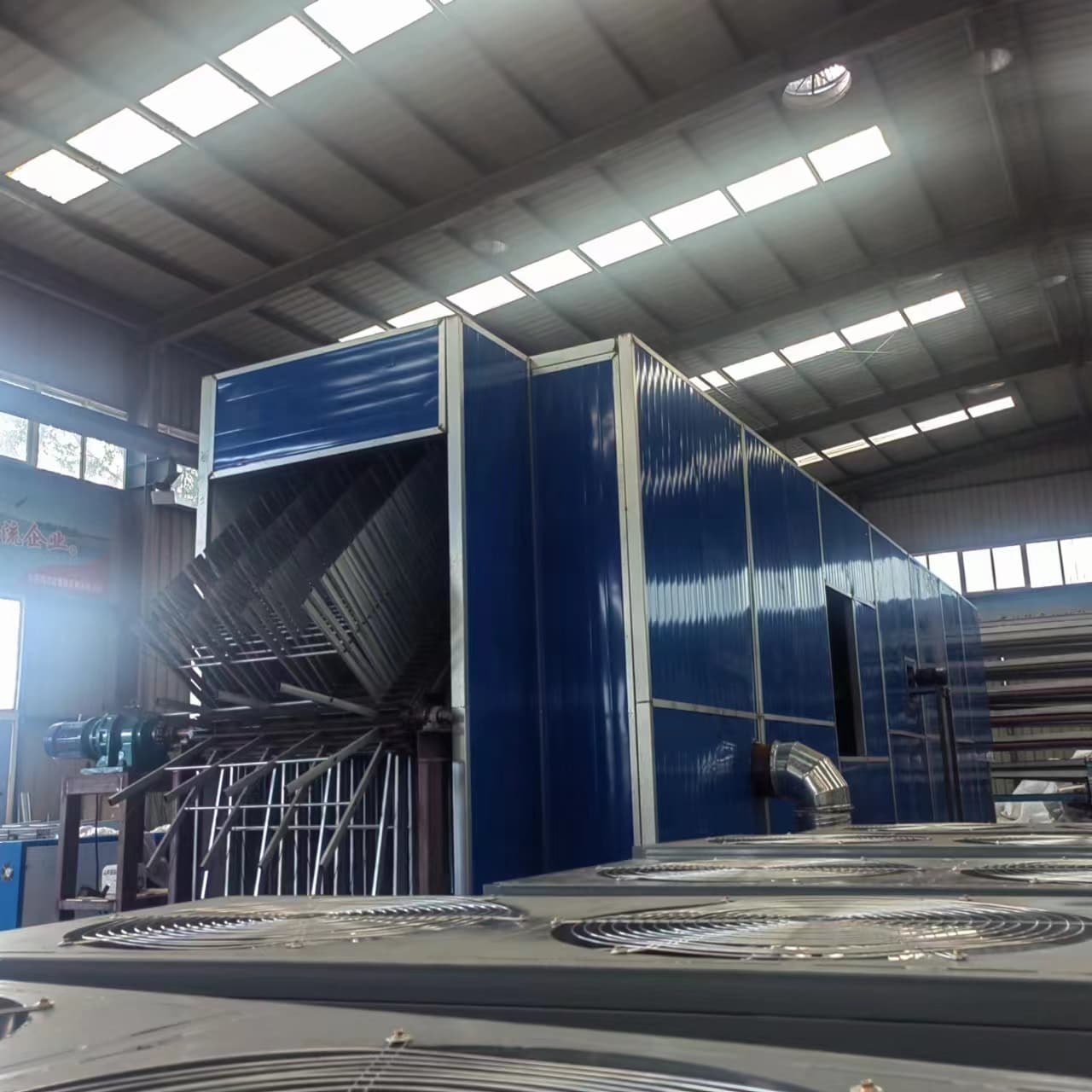

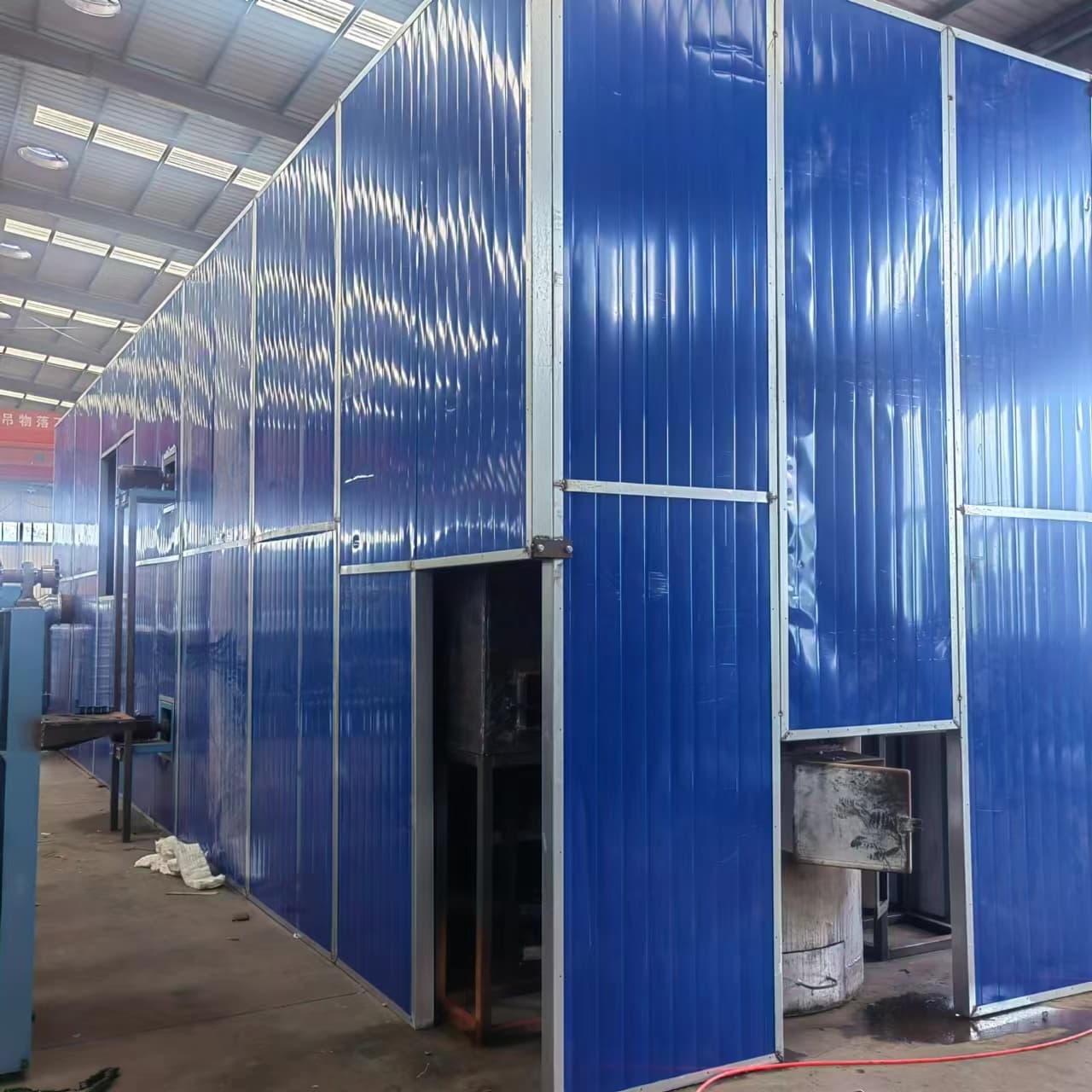

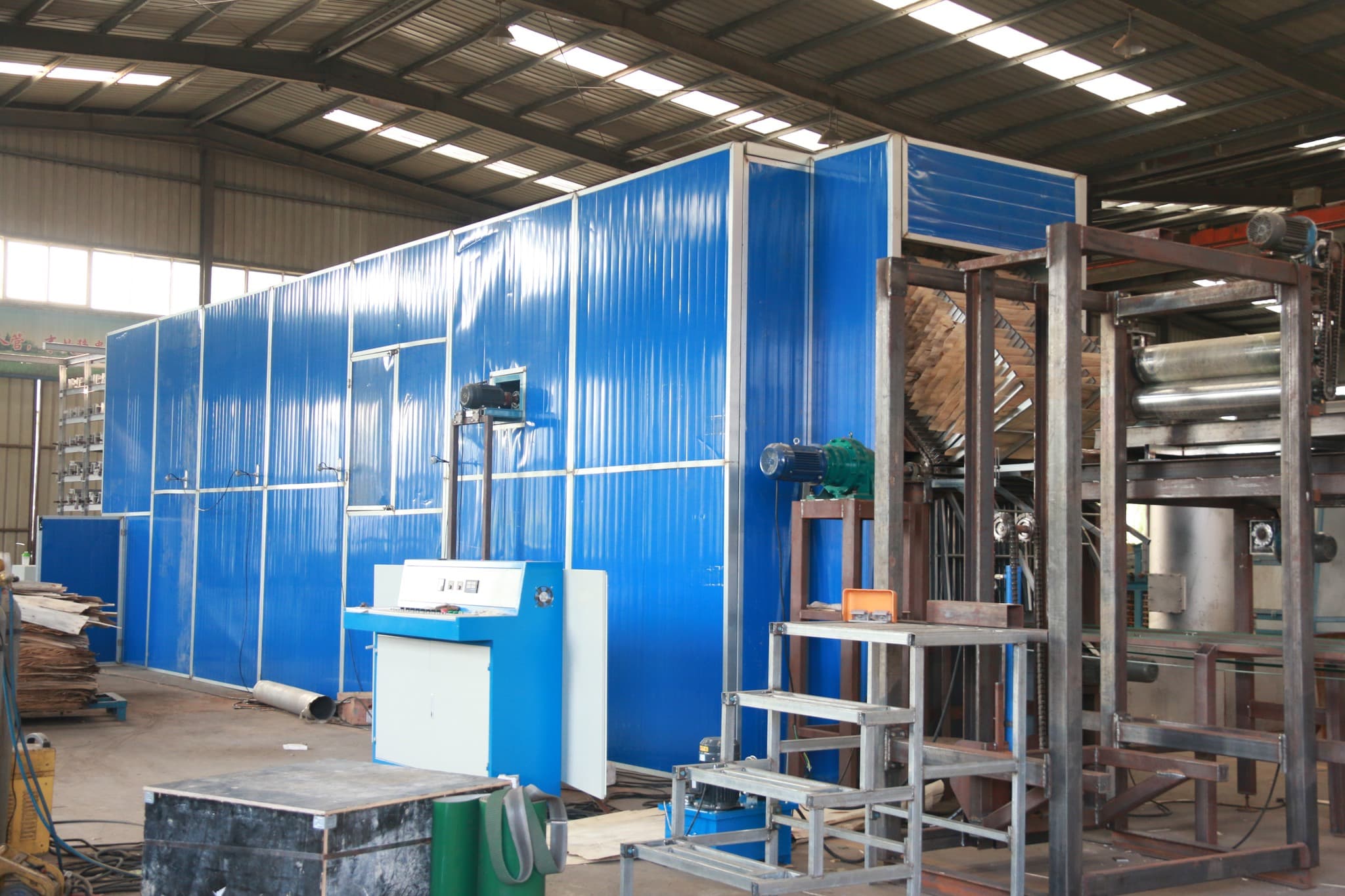

Vertical Veneer dryer for smaller capacity output customer
The vertical dryer is a device based on the principle of double-range transportation. The veneers enter the feed port through manual or semi-automatic conveying equipment. With the transmission equipment, they are smoothly transported to the end of the dryer, and then the veneers are stably transported by a special turning mechanism. Unload it into the lower layer.
Product Details
Product advantages and features
Shine vertical veneer dryer could replace the difficulties and troublesome progress of the sunset drying traditional method, therefore improve the drying efficiency and fulfill the customers’ higher requirement for processing the plywood.This new type dryer was designed for those has a smaller capacity of veneer producing, who also accept the thought of labor saving and decreasing the working time easier.The vertical dryer By adjusting the drying speed, heating temperature, plate residence time and feeding speed, to achieve the best drying effect.
Main technical parameter
Model No | Vertical Veneer Dryer（FBH30-10） |
Veneer Water Moisture（%） | Fresh veneer to about 8% |
Veneer size | 1270mmx640mmx1.7mm |
Drying Capacity (m³/H) | 1.5 |
Hot Air Blower（KW） | 6 (600Wx10pcs） |

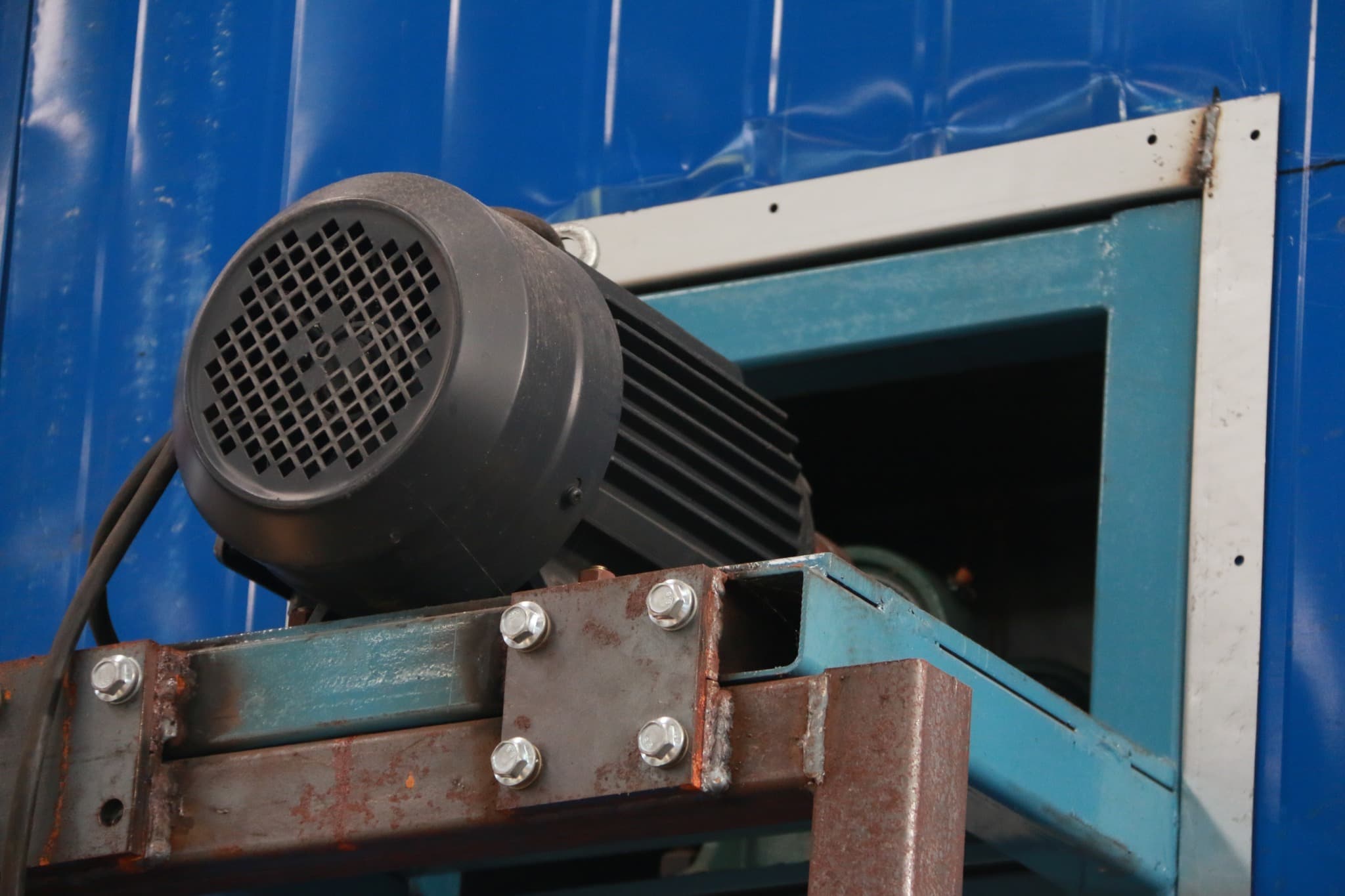

Traction Motor（KW） | 1.5 |
Air Intake Fan（KW） | 3 |
Built-in Burner（KW） | 1.5 |
Total Power （KW） | 12 |
Actual Fuel Consumption（KG/H） | 150 |
Space Covered About | 10mX3mX4m |
Working Labors | 2-3 |
Certification
CustomerVisiting
Exhibition

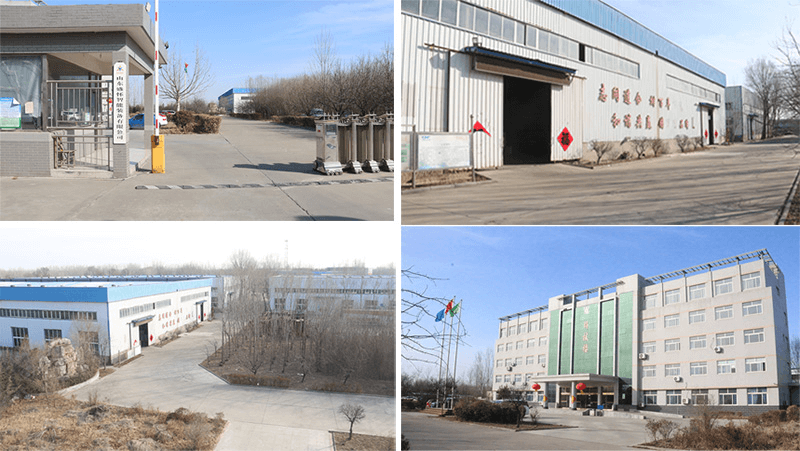

Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging. Door to door service is possible.
