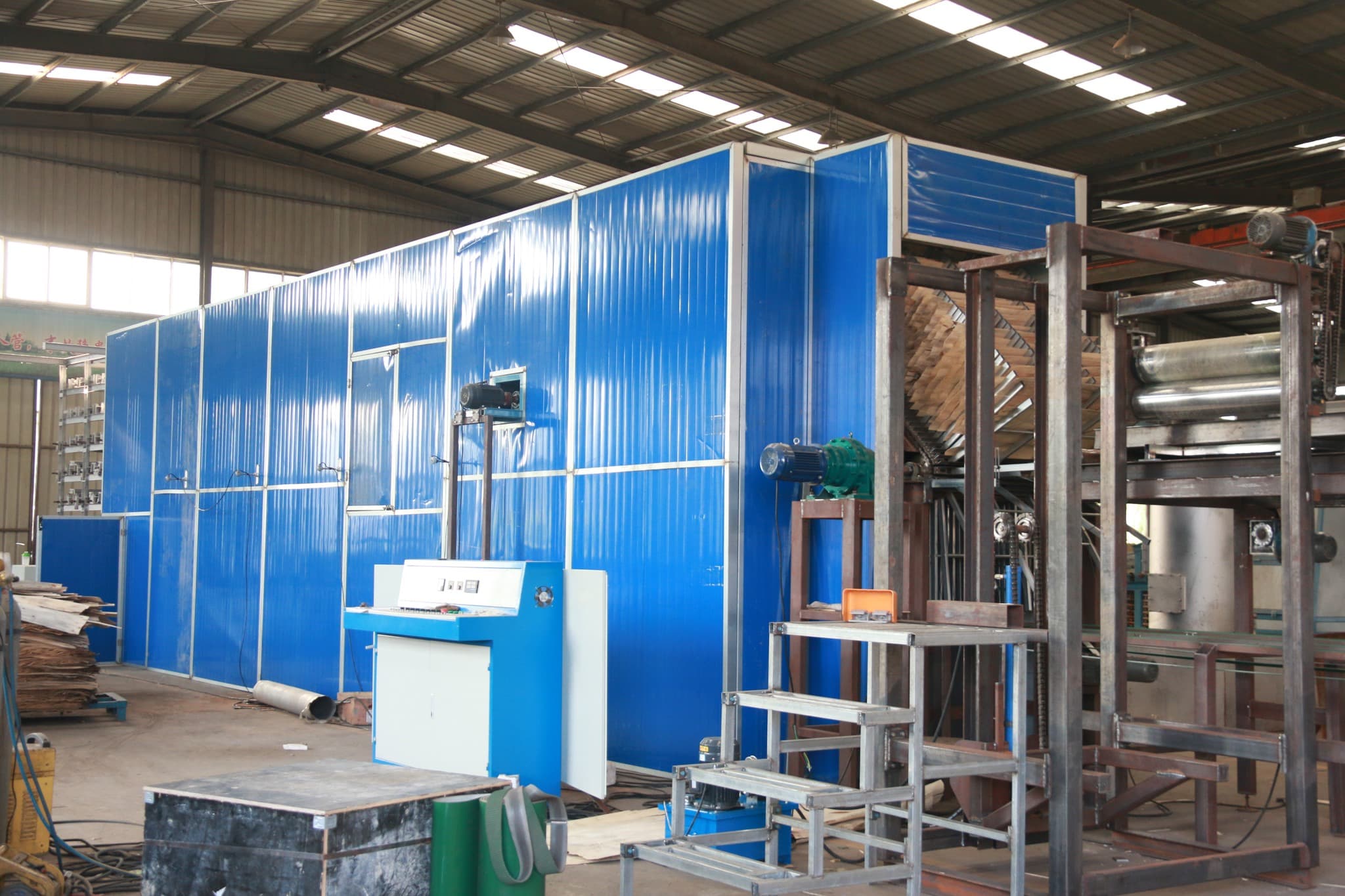

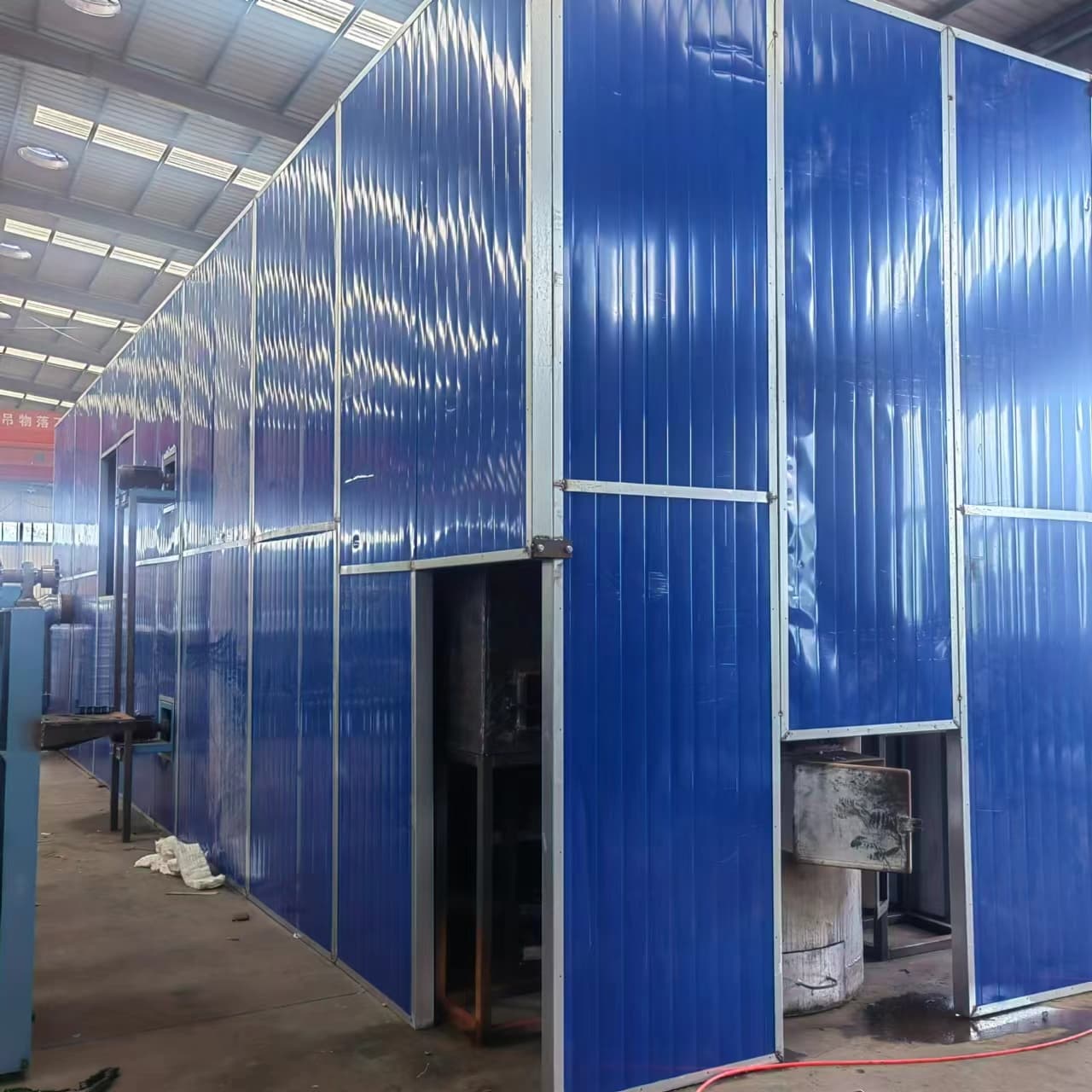

Shine 2023 new vertical veneer drying equipment

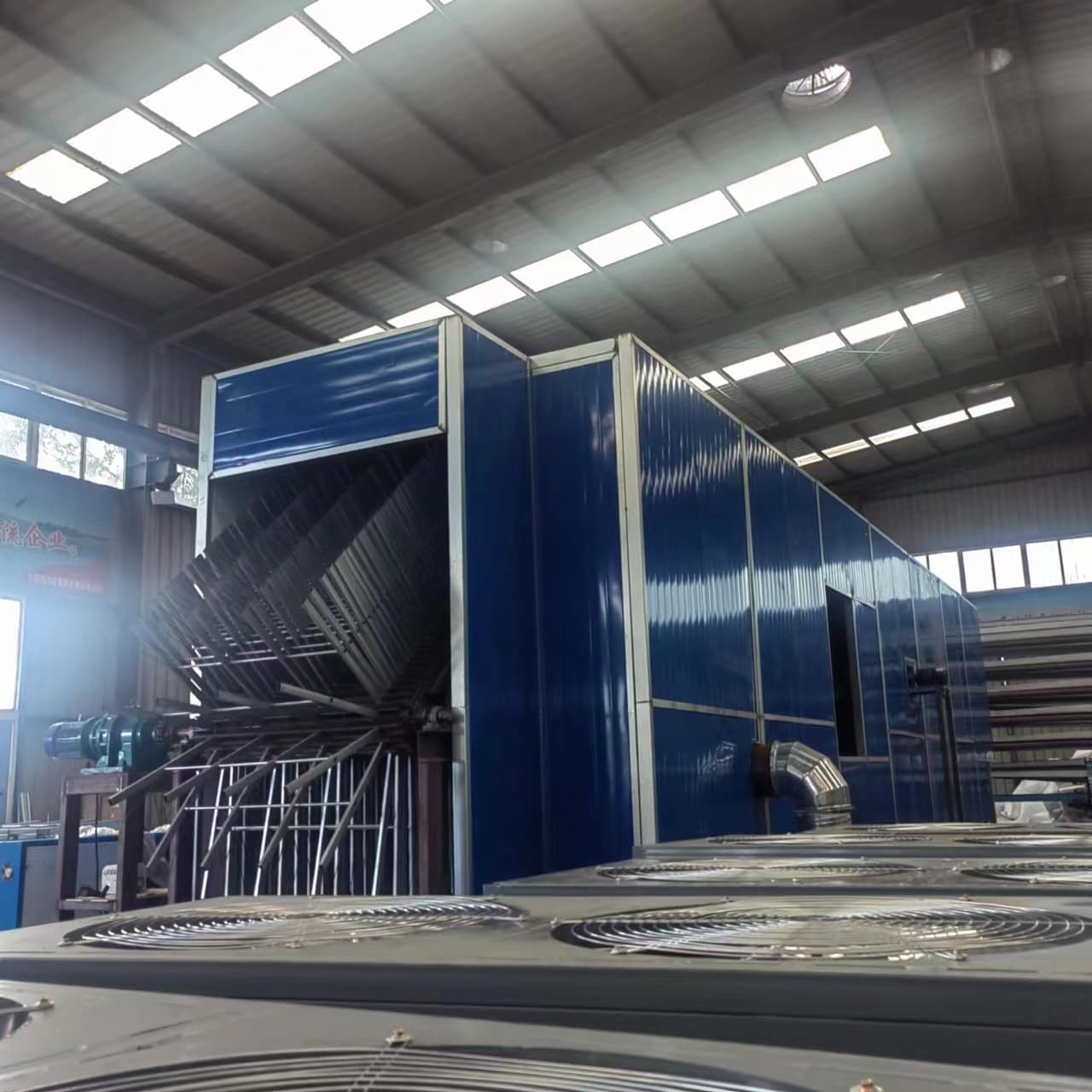

The vertical dryer is a device based on the principle of double-range transportation. The veneers enter the feed port through manual or semi-automatic conveying equipment.With the transmission equipment, they are smoothly conveyed to the end of the dryer, and then the veneers are stably transported by a special turning mechanism. Unload it into the lower layer.
Product Details
Products advantages and features
1) The vertical dryer By adjusting the drying speed, heating temperature, plate residence time and feeding speed, to achieve the best drying effect.
2) The plate structure, high space utilization rate, the veneer is turning with the plate, to ensure the consistency of product quality.
3) Unique air separation device, so that the hot air distribution is more coincident with the veneer drying process needs.
Main technical parameter
Model No | Vertical Veneer Dryer（FBH30-10） |
Veneer Water Moisture（%） | Fresh veneer to about 8% |
Veneer size | 1270mmx640mmx1.7mm |
Drying Capacity (m³/H) | 1.5 |
Hot Air Blower（KW） | 6 (600Wx10pcs） |

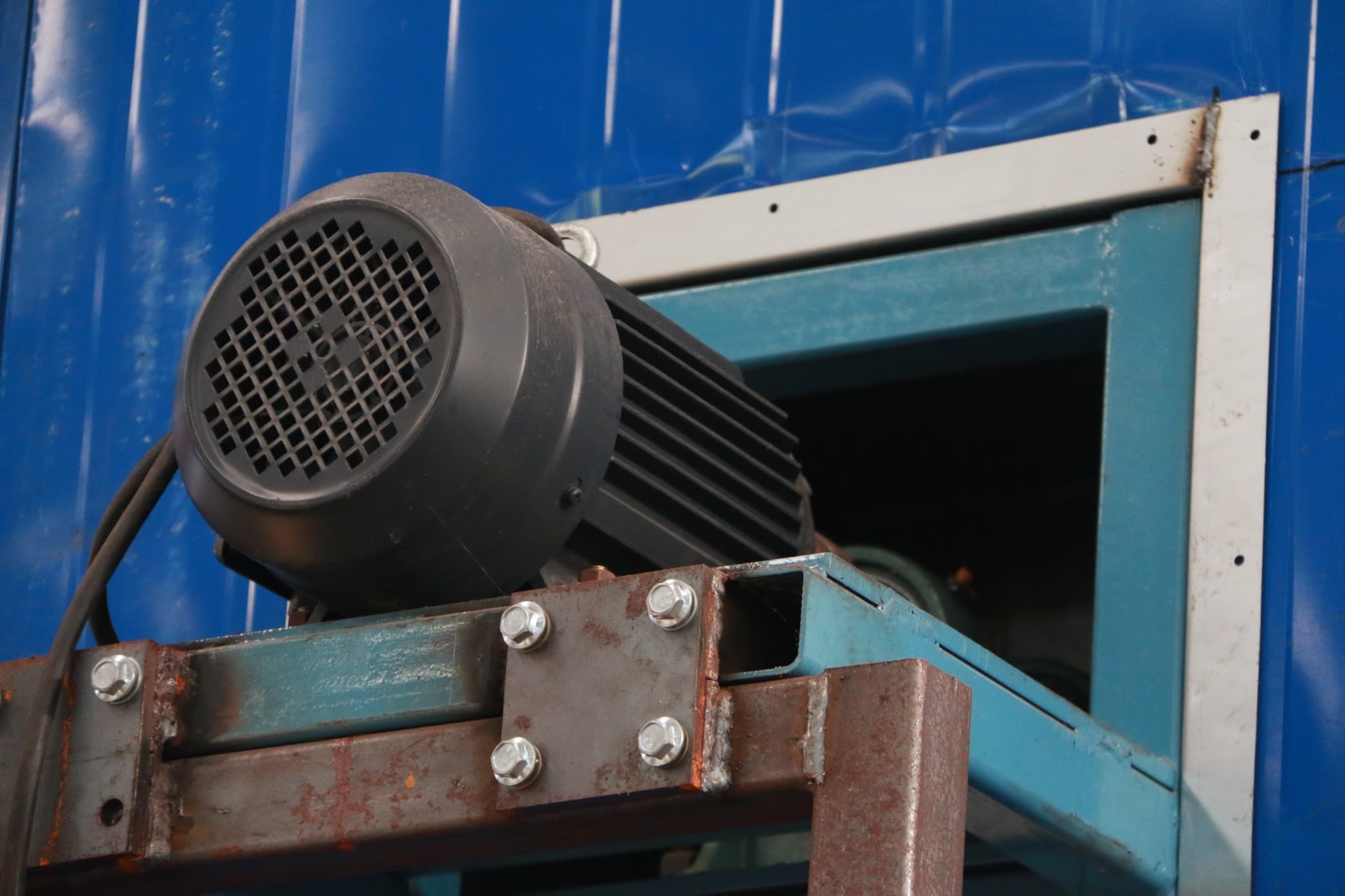

Traction Motor（KW） | 1.5 |
Air Intake Fan（KW） | 3 |
Built-in Burner（KW） | 1.5 |
Total Power （KW） | 12 |
Actual Fuel Consumption（KG/H） | 150 |
Space Covered About | 10mX3mX4m |
Working Labors | 2-3 |

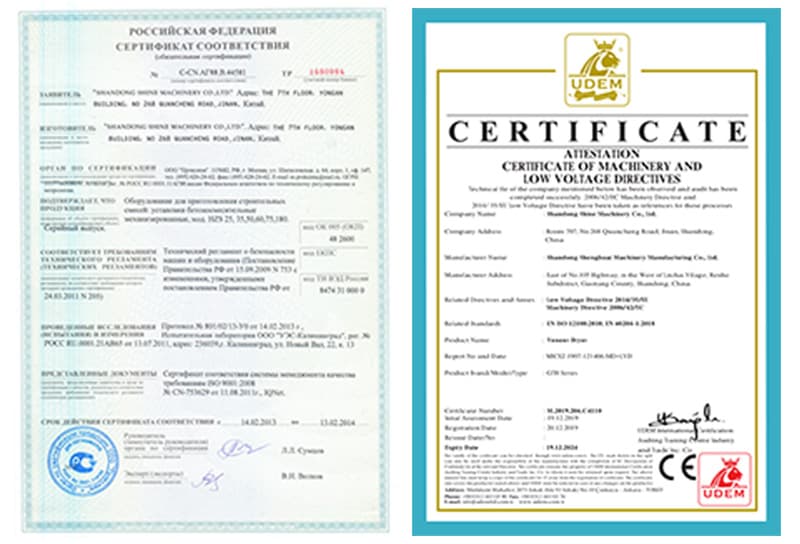

Certification
CustomerVisiting
Exhibition

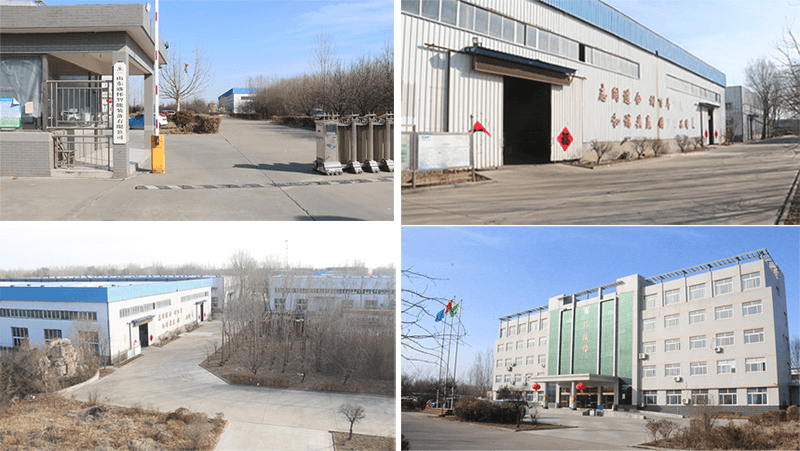

Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
