Roller Core Veneer Dryer
The roller core veneer dryer developed and produced by our company,the combustion heating system can achieve local materials, and the waste wood,waste bark and waste veneer produced by rotary cutting veneer can be burned.It can not only solve the key problem of high fuel cost of veneer drying equipment,but also solve the serious problem of wood processing plant waste accumulation.The veneer dryer can can improve your profit space greatly,the composite cost just only $6-12/cubic meter.
Price
$90,000.00
Product Details
Product Description
Roller core veneer dryer is an important part of plywood production process. The roller dryer machine can be divided into two parts: heating section and cooling section. The heat medium can be oil and heat steam. This veneer dryer machine is very efficient and productive, As the veneer is pressed by solid hot platens when working, so veneer will very flat after dry, and the veneer spoil rate is very low. Our biomass burner can use waste wood as fuel and the burning rate can be more than 95%. and also there is no any smoke,which is environment friendly.
Advantages of Roller Core Veneer Dryer
1. The veneer after drying by Shine veneer dryer is smooth and the moisture content is uniform, and the high temperature drum has direct contact with the wet veneer for heat transfer, and the heat efficiency is high, the heat loss is small, and the heat loss is reduced. the selling price for veneer dried by roller veneer dryer is higher than natural drying.
2.The roller veneer drying machine adopts frequency conversion to adjust feed speed according to your veneer thickness and moisture content to achieve ideal drying effect .
3.Shine core veneer dryer or face veneer dryer covers a small area, less ancillary equipment, convenient for transportation, quick installation, and can be put into use quickly and conveniently.
4.Standardized production models, can make different sections or decks according to different capacity requirements, which can meet different customers' requirements.
5.Each section with heat exchanger, which can make full use of the heat and achieve the best drying effect.
6. The fuel source can be the waste wood after peeling or the tree bark ,which can reduce the fuel cost greatly for the user.
Parameter Model |
DHS44M
| DHS48M | DHS52M | DHS56M | DHS60M |
Work width(m) | 3 | 3 | 3 | 3 | 3 |
Layer | 2 | 2 | 2 | 2 | 2 |
Veneer thickness(mm) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area (m)
| 40 | 44 | 48 | 52 | 56 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 2.7-3.1 | 3-3.3 | 3.2-3.5 | 3.5-3.8 | 3.8-4.1 |
Heat exhaustion(10000 kcal) | 94.5-108.5 | 105-115.5 | 112-122.5 | 122-132 | 132-143 |
Total power (kw) | 154 | 169 | 180 | 198 | 209 |
Overall size LxWxH(m) | 44*4.5*2.27 | 48*4.5*2.27 | 52*4.5*2.27 | 56*4.5*2.27 | 60*4.5*2.27 |

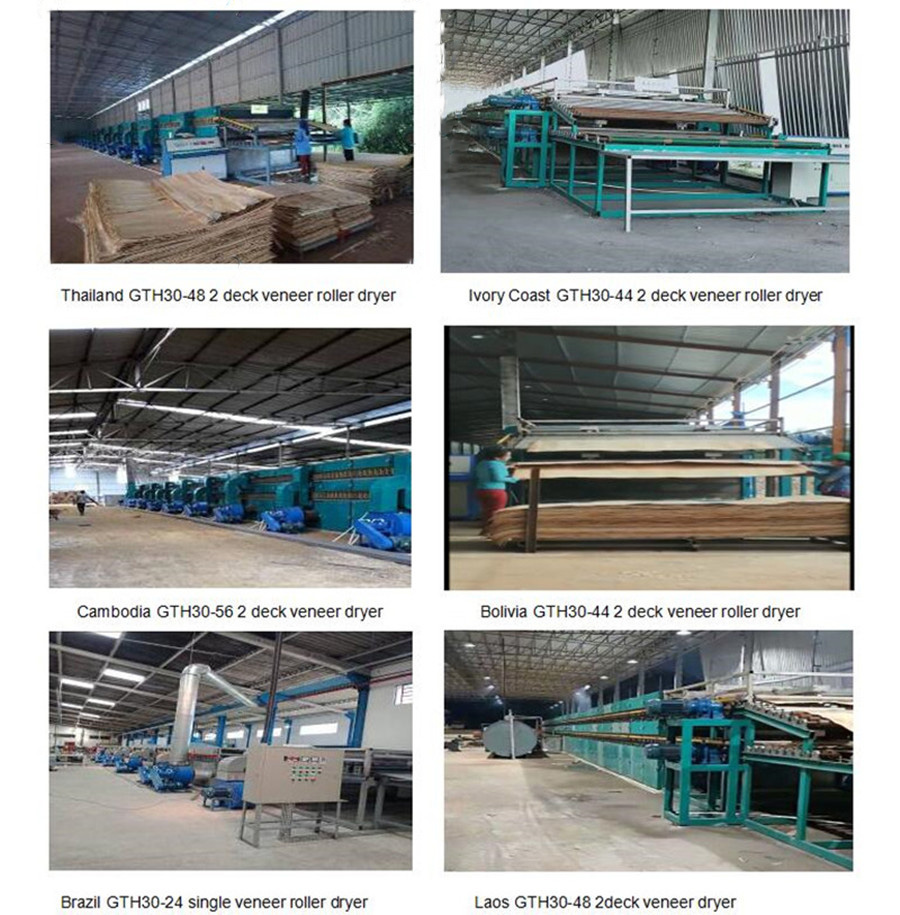

Customer Case

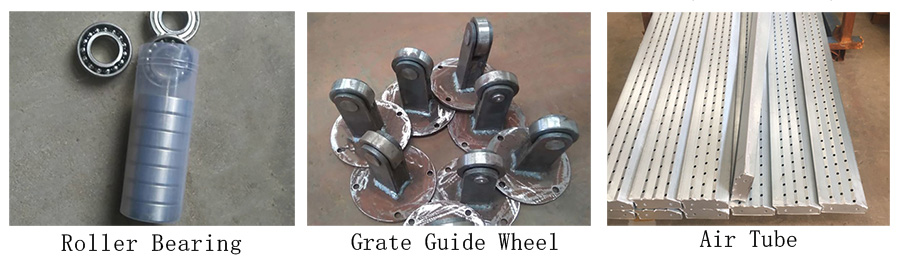

Parts of Veneer Dryer
Customer Visiting
Our Services
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
