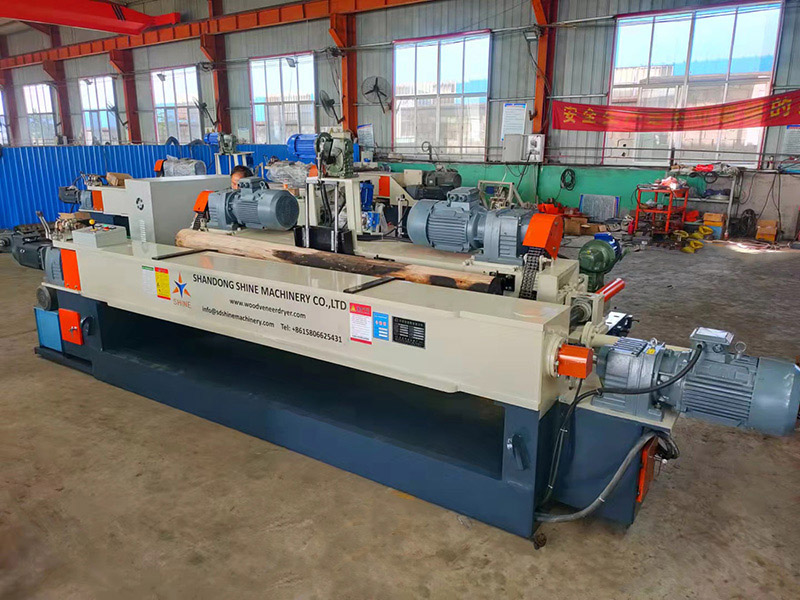

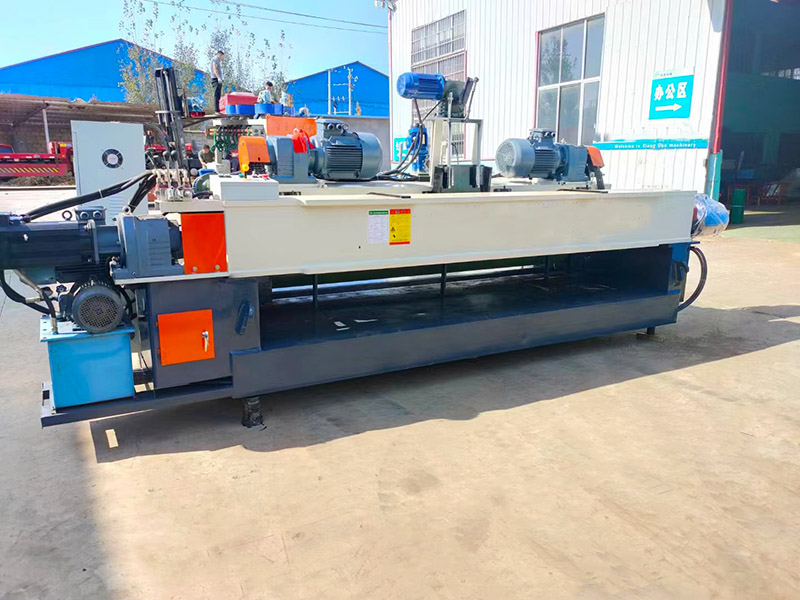

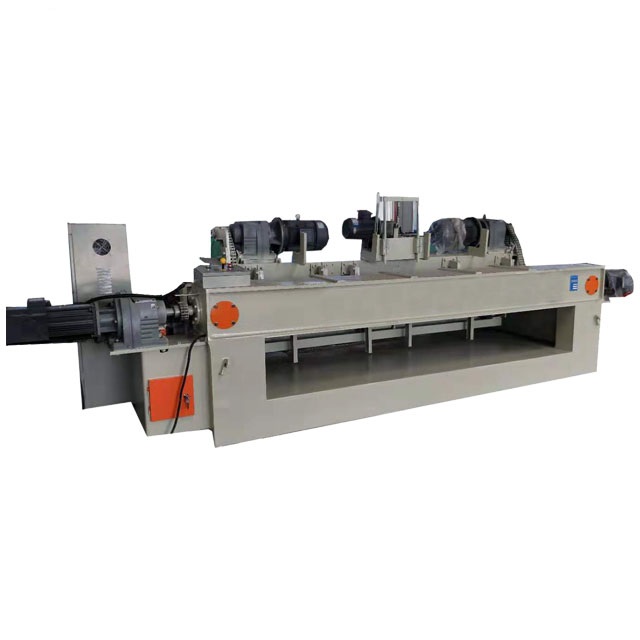

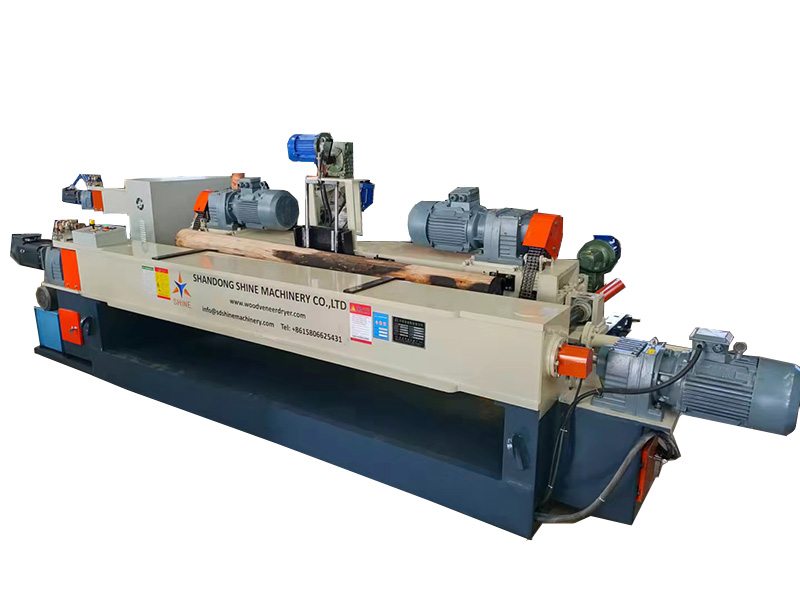

Shine 8ft wood peeling machine
This machine adopts building block installation, fixed knife table, double-row walking structure, thickened lead screw, oil-immersed light rod, and automatic adjustment of the knife gap. It is more stable when rotary cutting wood and the board output is more uniform.
Product Details
Product advantages and features
The veneer rotary cutting machine is one of the main machines in the plywood production process. The remaining wood core below φ500mm can be cut into veneers. The diameter of the wood core can eventually reach φ40mm. The same wood core By changing the knife door gap through the CNC system, the surface plate and core plate are rotary cut, which has high production efficiency and greatly improves the utilization rate of wood. The 8ft CNC veneer-free rotary cutting machine can be used to cut veneers with a maximum length of 2800mm.
Main technical parameter
8 feet double row rotary cutting machine parameters | ||
| Name | Unit | Parameter |
| Rotary cut log lengt | mm | 1300-2800mm |
| Rotary cut log diameter | mm | Max550mm |
| Rotary cutting thickness range | mm | 0.4-3mm |
| Main machine linear speed | m/min | 40-80m |
| Remaining wood core | mm | 32 |
| Main and auxiliary motor power | KW | Main double roller motor 11*2 Main single roller motor 11*2 Feed 11KW motor servo shearing motor 4KW Rubber roller transmission motor 4KW |
| Double rod diameter | mm | 124 |
| Single rod diameter | mm | 100 |
| Reducer model | R87 | The host adopts an enlarged reducer |
| Equipment size | mm | 6200mm-2300mm-1600mm |
| Equipment curb weight | kg | 9000 |

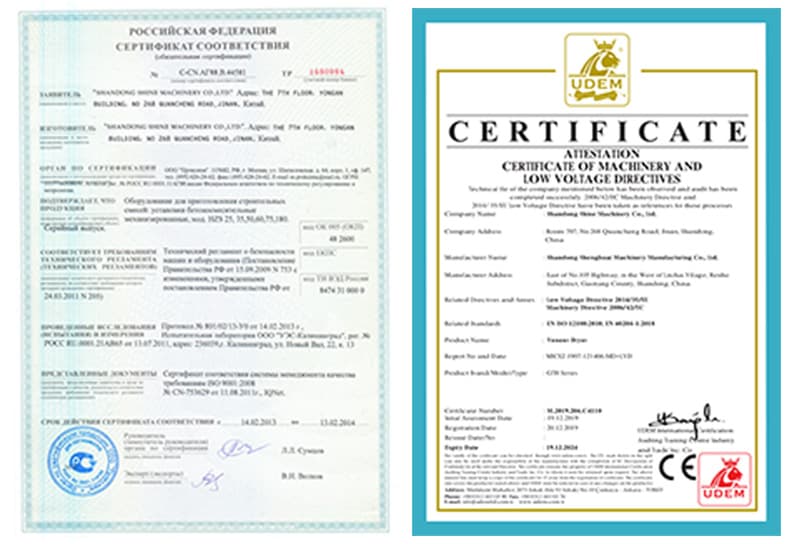

Certification
CustomerVisiting
Exhibition

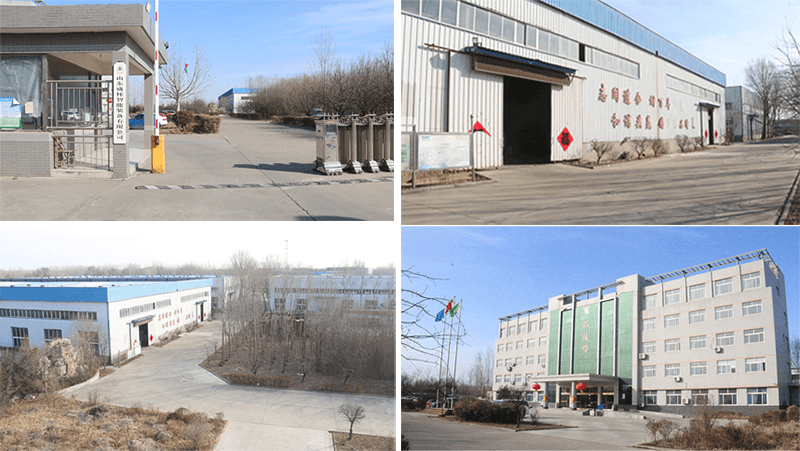

Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
