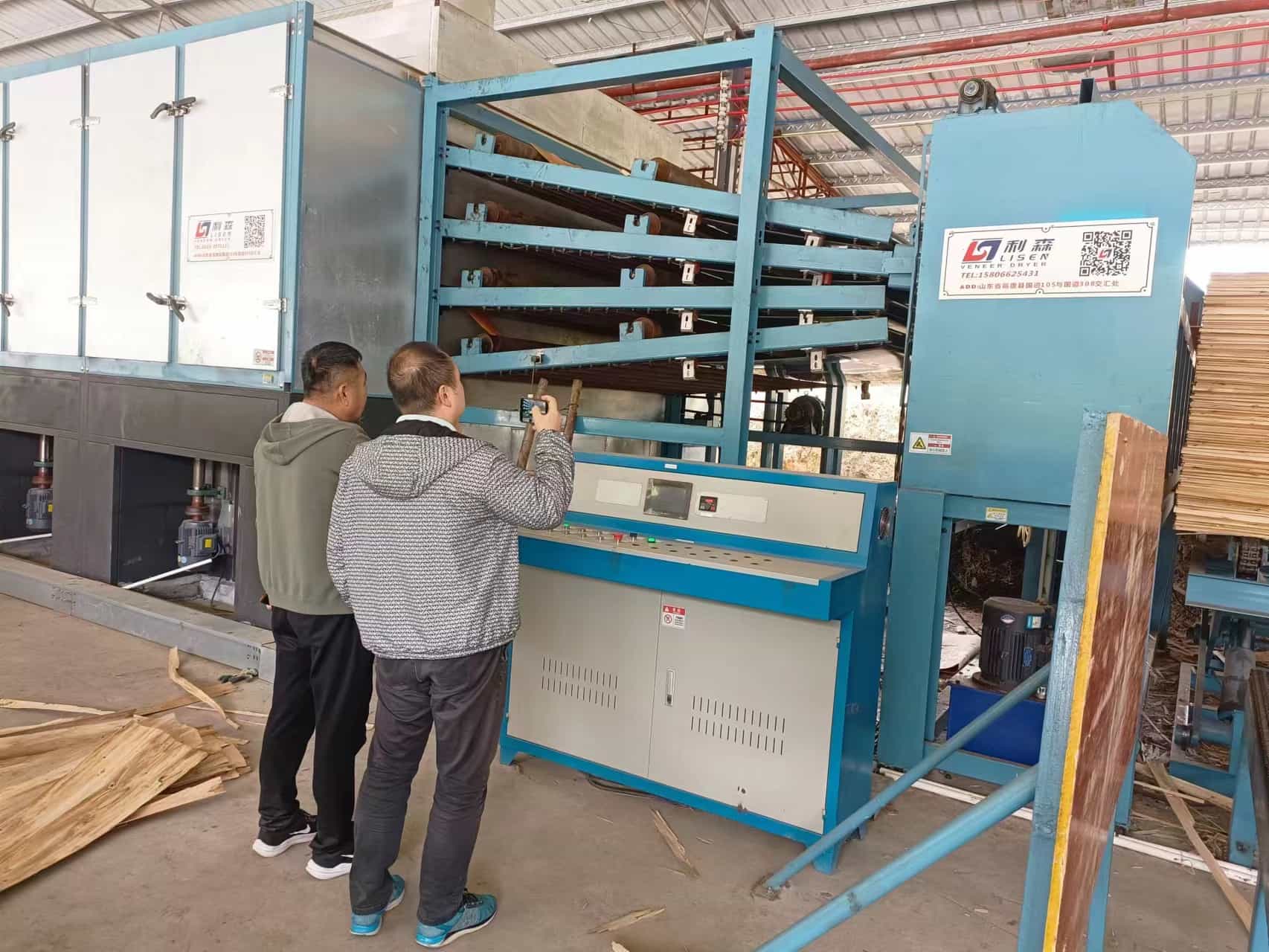

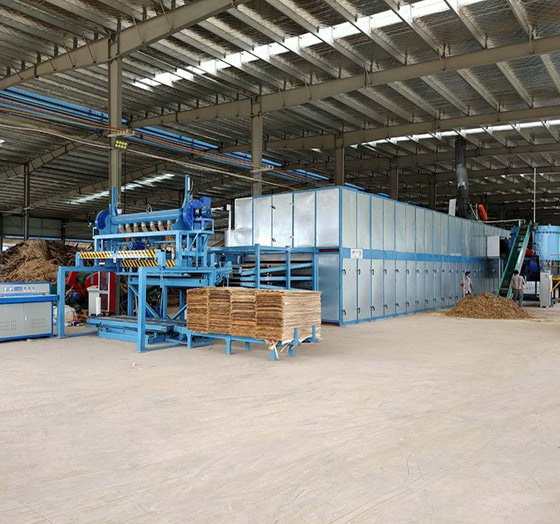

Shine 4-deck 30meter roller veneer dryer

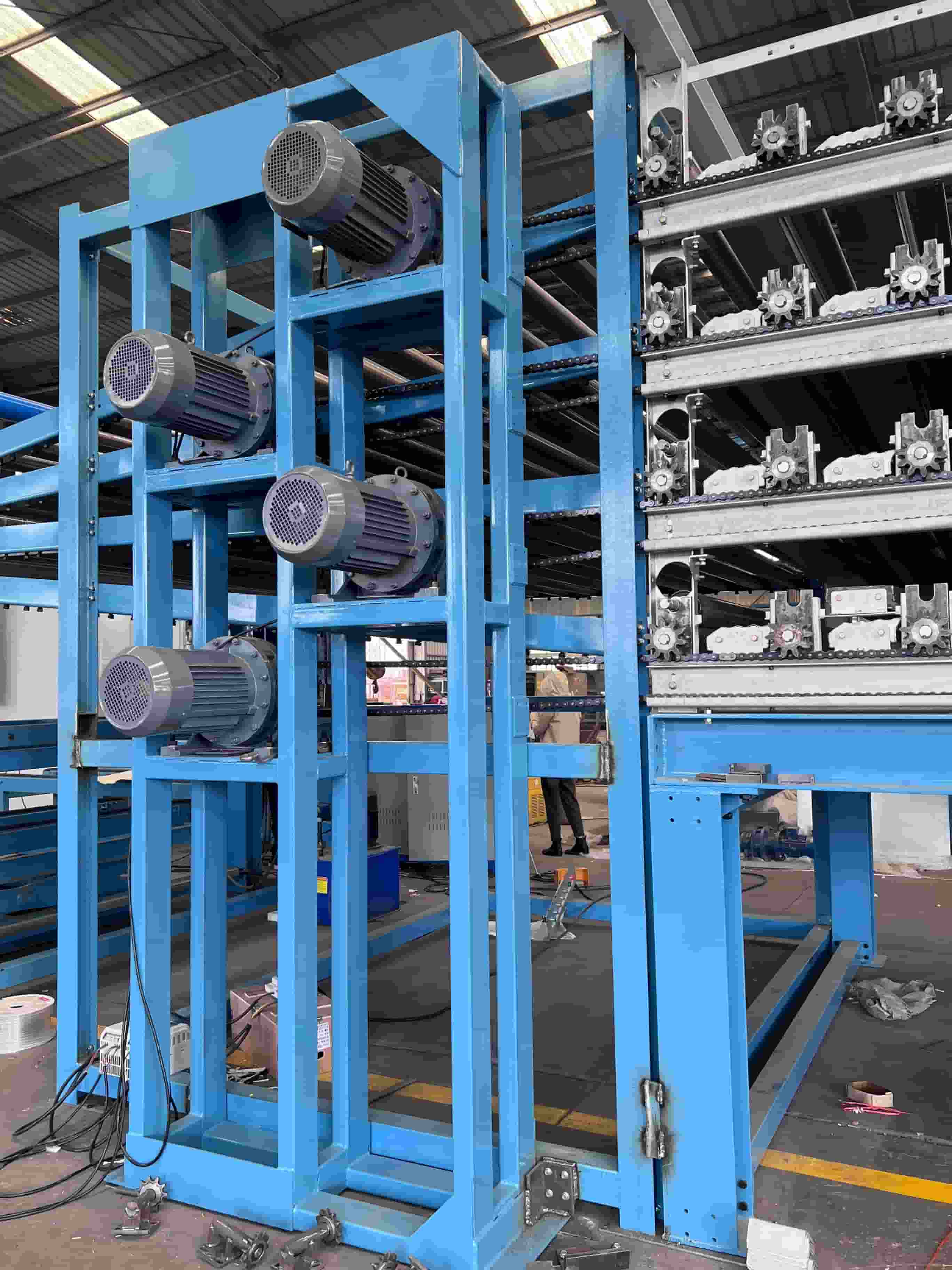

Shine 4-deck roller veneer dryer adopts the newest motor to decreasing each section of the air intake fan electirc consumption, therefore saving the elecric cost for those inital investment customers.Our innovations have led to some of the best-in-class technologies which are being embraced by our performance minded customers.
Product Details
Product advantages and features

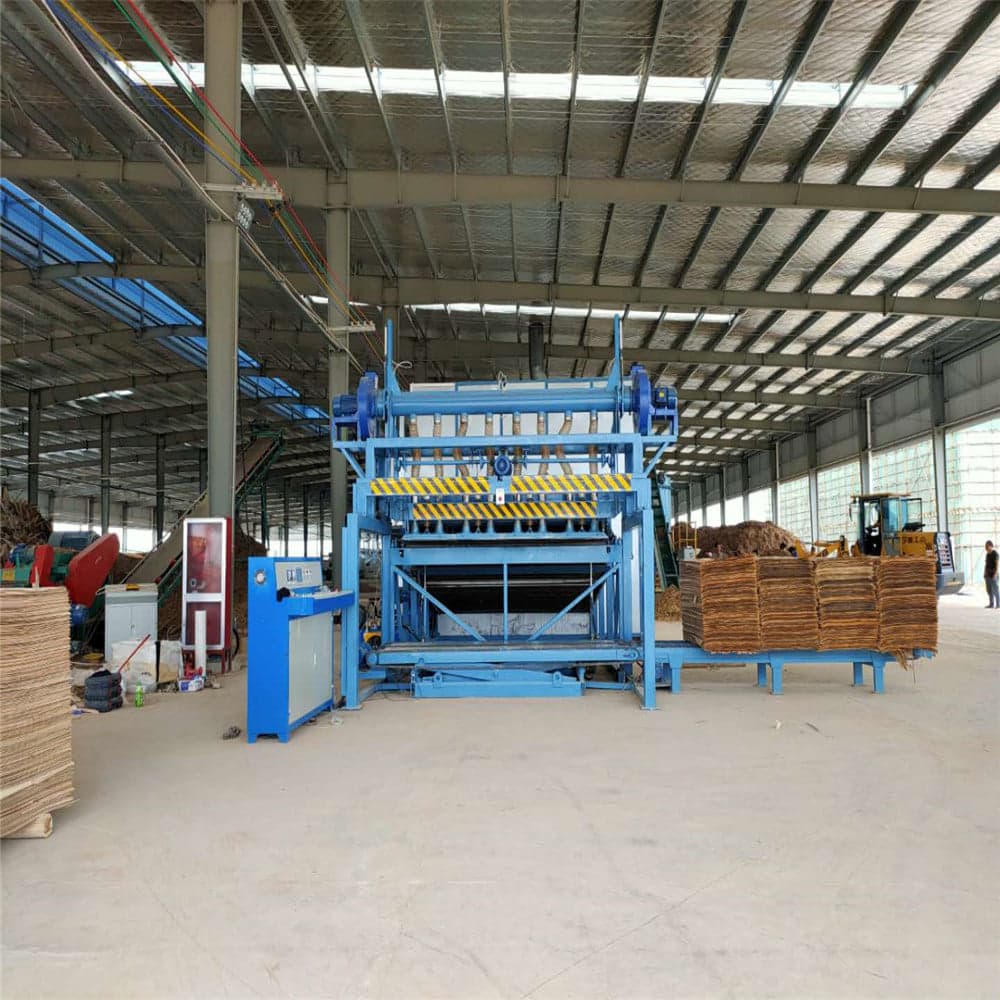

1. Save labor costs. Machines can replace labor to the greatest extent. For example, in countries where labor costs are relatively high, fully automatic plate loading machines will be a better choice.
2. Increase production. The working upper limit of manual loading is fixed, but the fully automatic loading machine can set different speeds to match the drying speed of the dryer to maximize production capacity.
3. High degree of automation. The fully automatic plate loading machine is matched with the dryer to meet the high automation needs of customers with large output, improving the drying efficiency of veneers while ensuring drying quality.
Main parameter and technology
Parameter Model | DHS34m | DHS36m | DHS38m | DHS40m |
Heating area(m) | 30 | 32 | 34 | 36 |
Working Width(m) | 3 | 3 | 3 | 3 |
Deck | 4 | 4 | 4 | 4 |
Veneer thickness (mm) | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Veneer water moisture | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% |
Drying capacity (m³/day) | About 4.4 cbm | About 4.7 cbm | About 4.96 cbm | About 5.25 cbm |
Total Power | 166KW | 174KW | 182KW | 190KW |
Actual electricity consumption | About 116kwh per hour | About 121kwh per hour | About 127kwh per hour | About 133kwh per hour |
Overall Dimension(L*W) | 38m×5m | 40m×5m | 42m×5m | 44m×5m |
Certification
CustomerVisiting
Exhibition
Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
