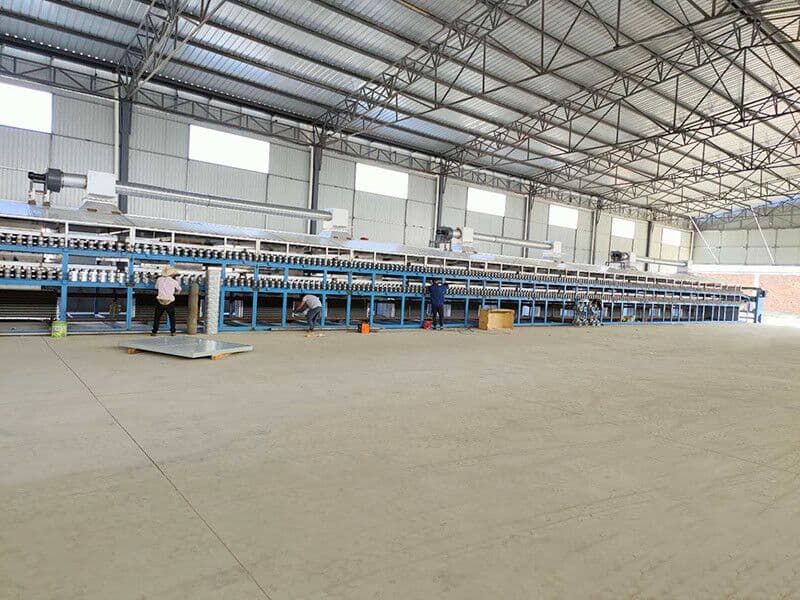

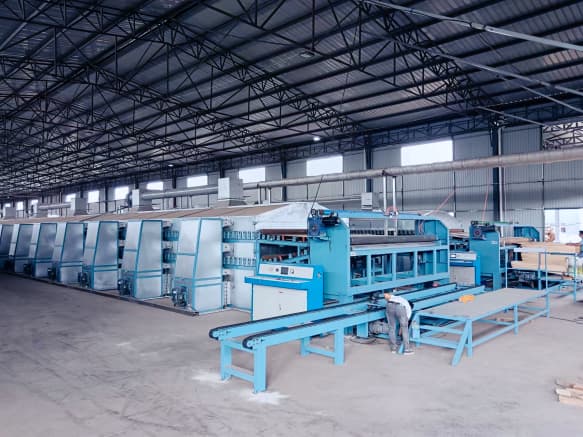

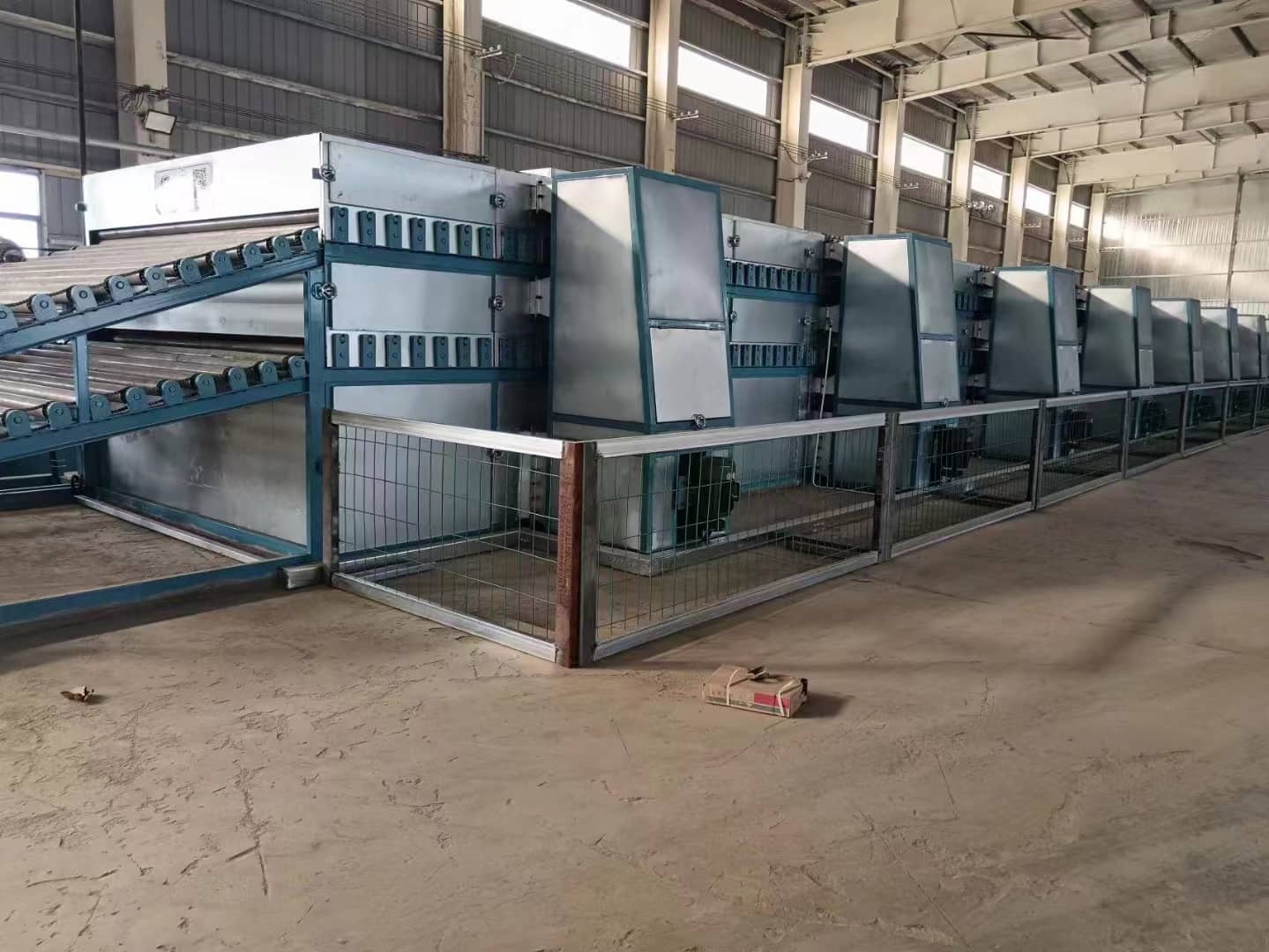

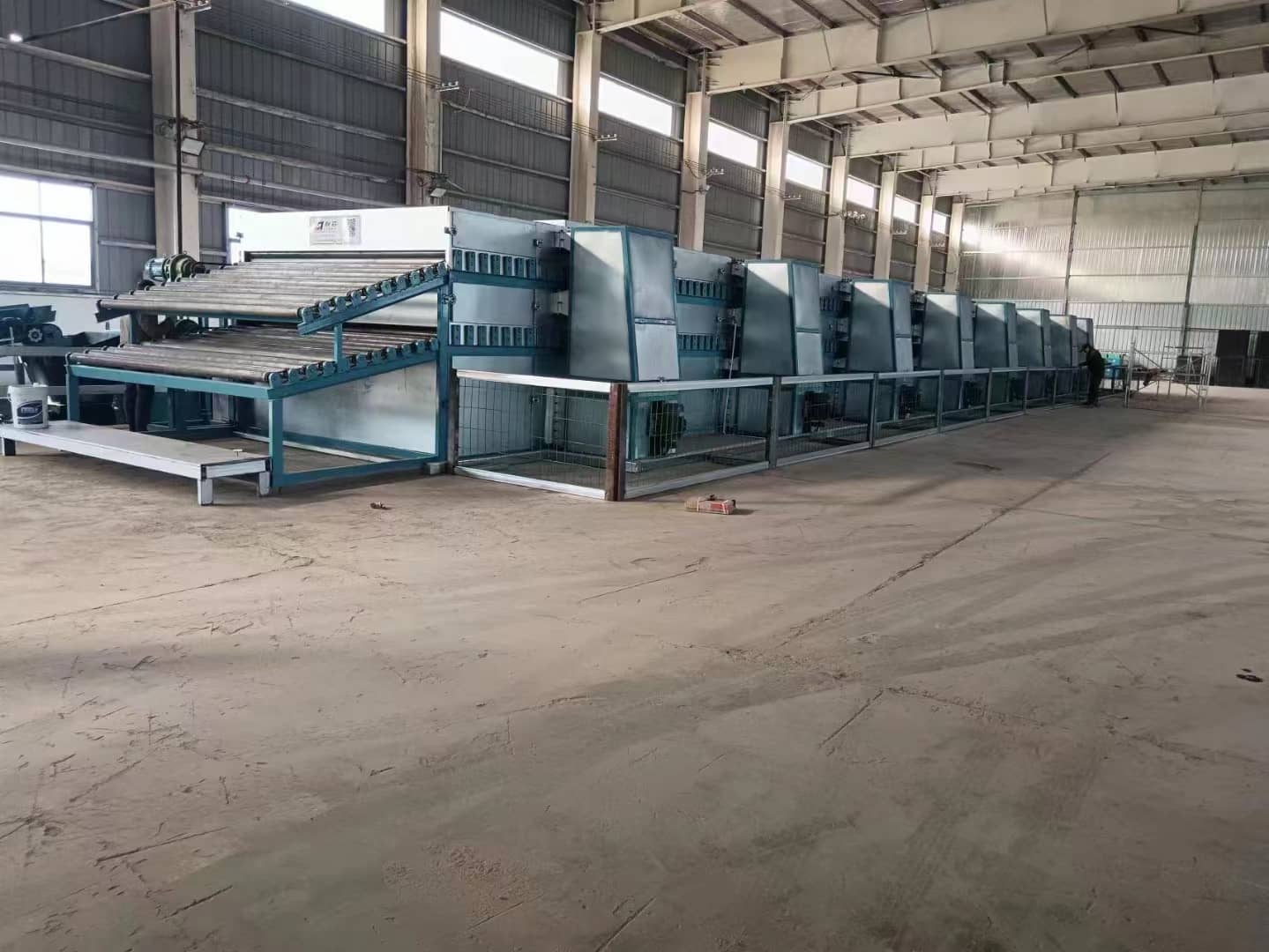

Shine 2-deck 50m roller veneer dryer
Increased Production Efficiency: A 2-deck wood roller veneer drying machine allows for drying of two separate batches of veneer at once, effectively doubling the drying capacity compared to single-deck machines. This results in higher production outputs and faster turnaround times.
Energy Efficiency: By utilizing a 2-deck system, the machine can optimize the use of heat energy more effectively, leading to reduced energy consumption per unit of veneer dried. This helps to lower operational costs and make the drying process more environmentally friendly.
Product Details
Product advantages and feature
1.Improved Veneer Quality: With the ability to process two batches of veneer simultaneously, the drying machine can ensure consistent and uniform drying results across all pieces. This helps to minimize variations in quality and reduce the risk of defects such as warping, cracking, or discoloration.
2.Space-Saving Design: Despite having two drying decks, a 2-deck wood roller veneer drying machine typically has a compact footprint compared to two separate single-deck machines. This space-saving design can be advantageous for smaller production facilities or workshops with limited floor space.
Main techinical and parameter
Parameter Model | DHS34m | DHS36m | DHS38m | DHS40m |
Heating area(m) | 30 | 32 | 34 | 36 |
Working Width(m) | 3 | 3 | 3 | 3 |
Deck | 2 | 2 | 2 | 2 |
Veneer thickness (mm) | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Veneer water moisture | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% | Fresh Veneer to about 5% |
Drying capacity (m³/day) | About 2.1 cbm | About 2.3 cbm | About 2.4 cbm | About 2.6 cbm |
Overall Dimension(L*W) | 38m×5m | 40m×5m | 42m×5m | 44m×5m |
Certification
CustomerVisiting
Exhibition
Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.Door to door service is possible.
