Product Details
Product advantages and feature

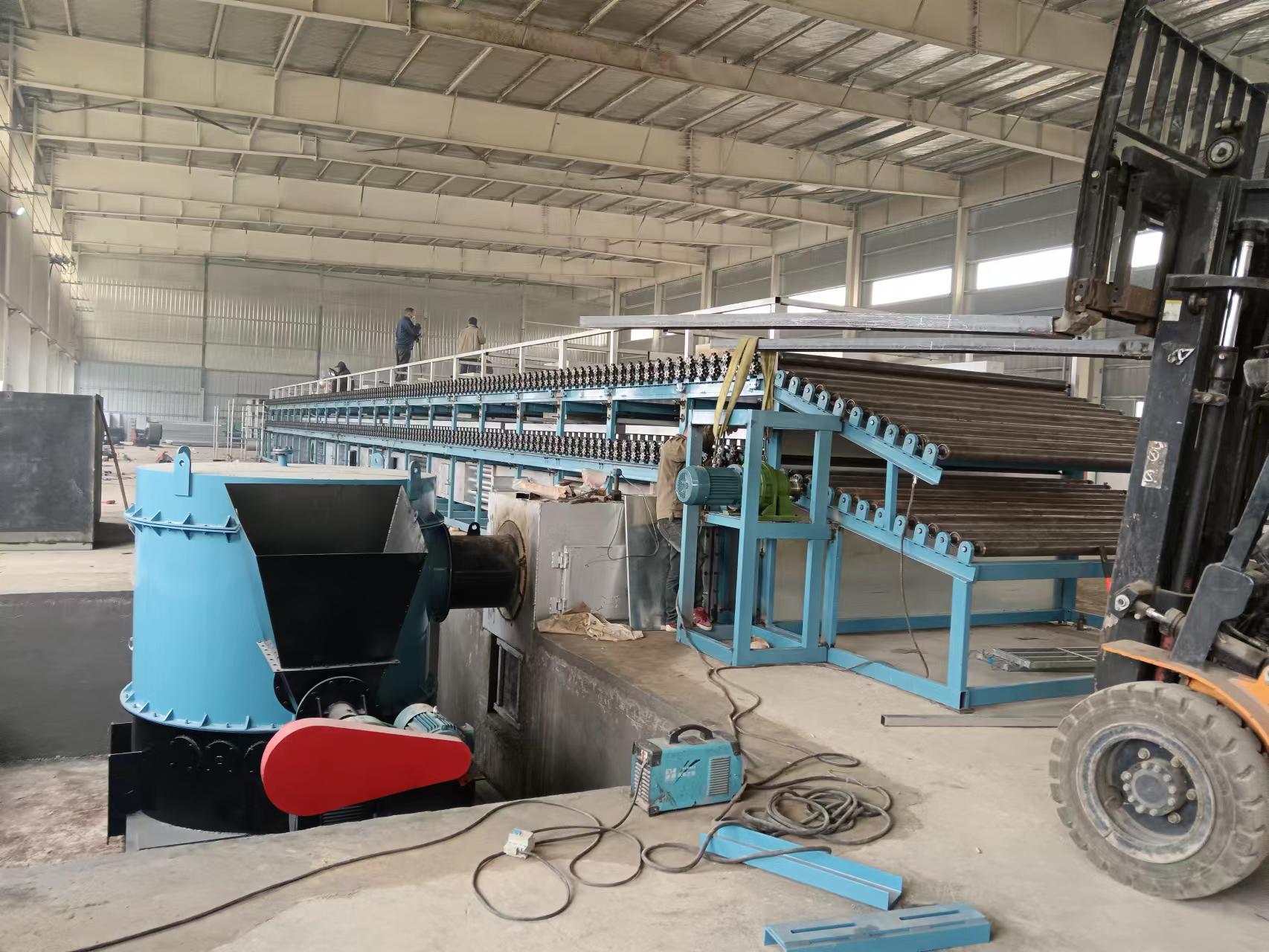

1) The 6T Biomass Boiler is to be the heating source for the 2-deck 48m roller dryer. It can burn all kinds of waste wood directly to reduce the drying cost mostly. It is also environmental-friendly with no smoke and no dust,low energy consumption,high output and quality. The dryer requires 140-180 degrees inner temperature to meet the drying condition.It has the advantages of high efficiency, low fuel consumption and energy saving. Compared to steam boiler or heat conduction oil boiler dryer , the drying cost of the biomass burner is the lowest.
2)Shine veneer dryer has one of the most important functions to improve the drying capacity and to replaced the natural drying. Obviously, it is an essential helper for the veneer manufacturers with large output.
Main technical parameter
| Model No | GTH30-48 |
| Working Width | 3m |
| Deck | 2 |
| Roller material | Q235B, φ 89 special shaft tube |
| Heating area length | 44m |
| Cooling area length | 4m |
| Veneer thickness and size | 1270mm*640mm*(1.8mm-8mm) |
| Veneer water moisture | Fresh Veneer to 0-10% |
| Drying capacity (m³/day) | About 72cbm per day |
| Veneer transport speed | 5-22m/min, 16A chain |
| Power of Hot Air Blower | 5.5KW |
| Power of Traction Motor | 7.5KW, frequency control |
| Power of Cold air blower | 5.5KW |
| Total Power | 81KW |
| Overall Dimension(L*W*H) | 52m×4m×3m |
Certification
CustomerVisiting
Exhibition
Factory
Our Services
Pre-sale services:
1) Provide the free consultation of all plywood production line
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging. Door to door service is possible.
