New Type Plywood Veneer Dryer Machine Line
The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.
Price
$170,000.00
Product Details
New Type Plywood Veneer Dryer Machine Line
veneer dryer machine Unique heat exchange structure makes the equipment run efficiency,and greatly improves drying output.Biomass burner is our patented product,which can burn waste wood (rotary cutting veneer,waste bark and waste veneer) directly,heat air and deliver the dryer directly without heat loss.The fuel cost is much lower than thermal oil,steam gas,electricity and others.Our biomass burner can pass the inspection and acceptance of environmental protection department.
Advantages of Veneer Drying Machine
1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
2.The veneer after drying is free of splits and the surface is in good condition for gluing.
3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Product Parameters
Parameter Model |
DHS20M
| DHS22M | DHS24M | DHS26M | DHS28M | DHS30M |
Work width（m） | 3 | 3 | 3 | 3 | 3 | 3 |
Deck | 4 | 4 | 4 | 4 | 4 | 4 |
Veneer thickness（mm） | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Heating area （m）
| 16 | 18 | 20 | 22 | 24 | 26 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | About 3 | About 3.3 | About 3.6 | About 4 | About 4.4 | About 4.8 |
Heat exhaustion（10000 kcal/h） | About 105 | About115 | About126 | About140 | About 154 | About168 |
Total power (kw) about | 105 | 110 | 115 | 120 | 125 | 130 |
Overall size LxW（m） | 31*5.5 | 33*5.5 | 35*5.5 | 37*5.5 | 39*5.5 | 41.*5.5 |

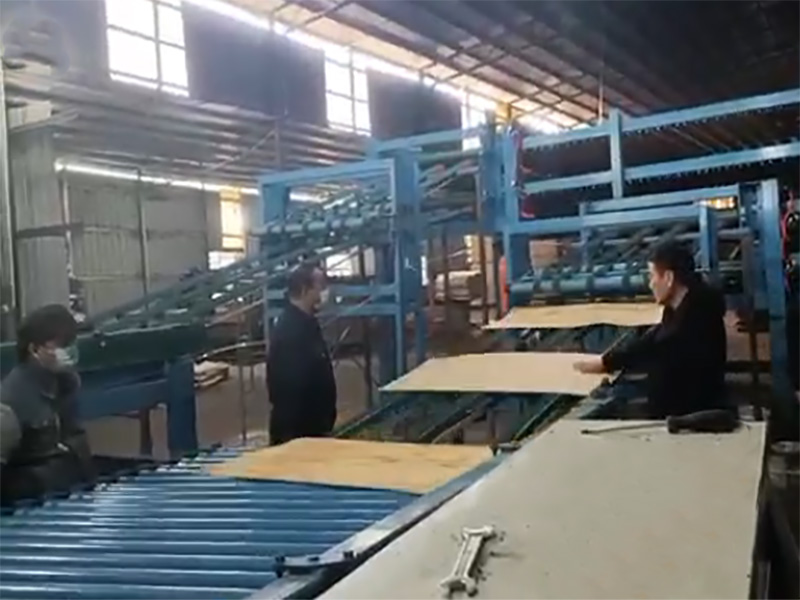

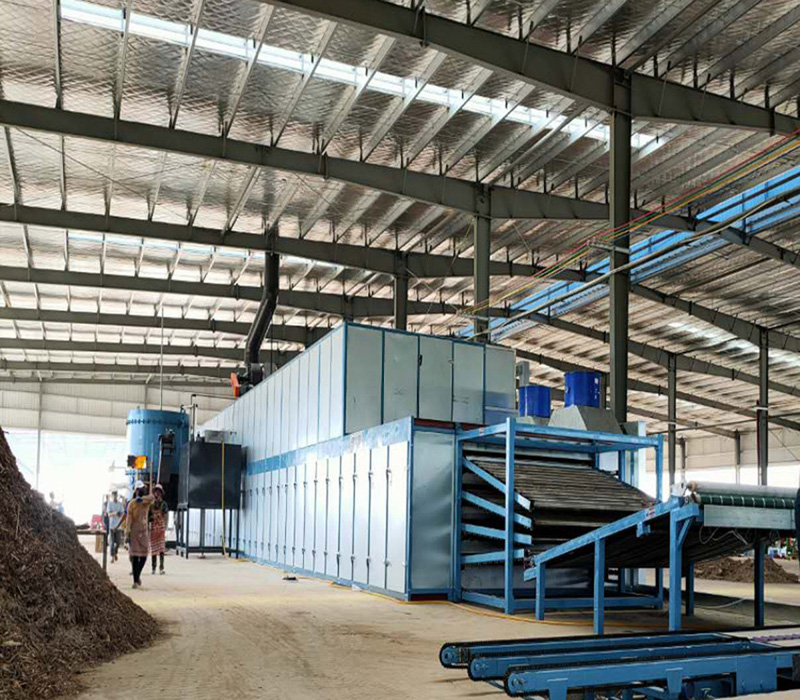

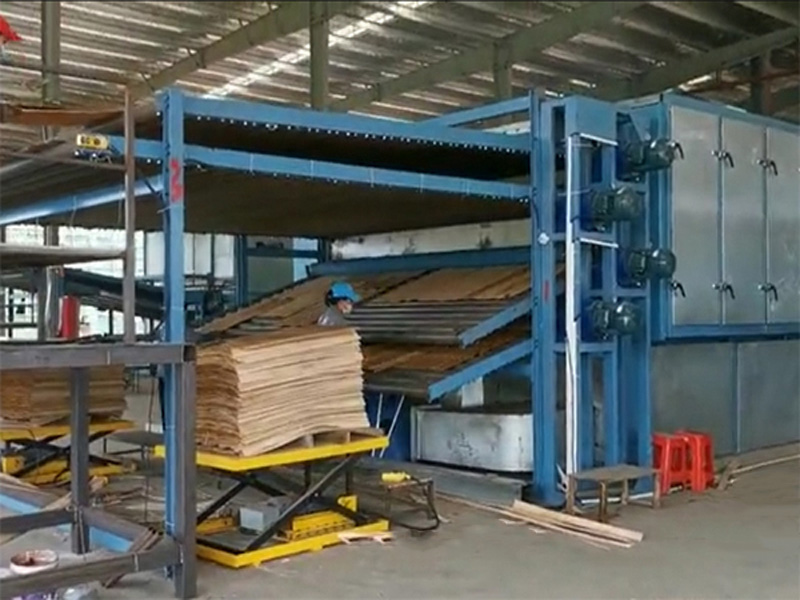

Customer Case
Exhibitions and Customer Visits
Our Services
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
