High Automatic and Low Drying Cost Veneer Drying Machine
(1)Our Roller Veneer has the features of high productivity、energy efficiency、lowest drying cost and perfect drying effect.
(2)The biomass burner is Shine’s patented product which can directly burn all kinds of waste wood and has the features of high productivity、energy efficiency、fuel saving and so on.Compared with steam burner and thermal oil burner,it can lower drying cost greatly.
(3)Automatic electrical control system has the advantages of saving labor cost、simple operation and low failure rate whose main electrical components are international famous brand.
Product Details

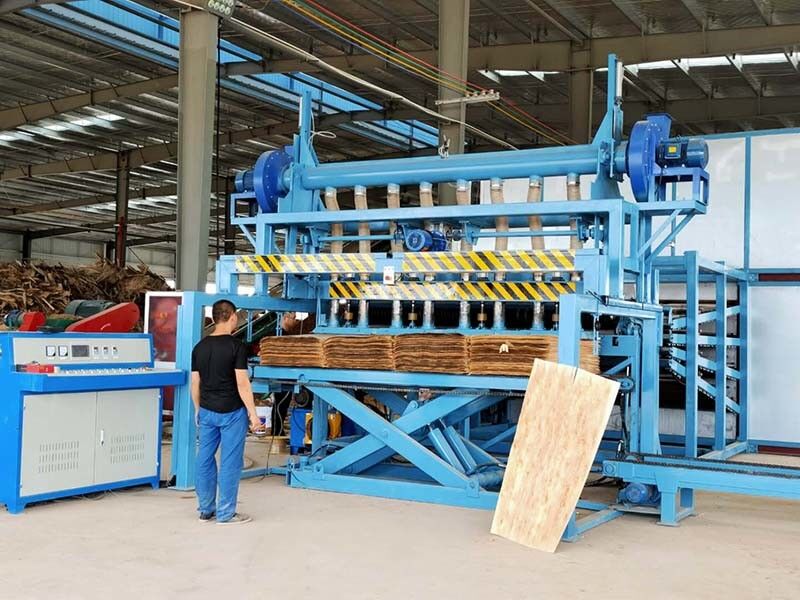

Product Introduction of 4-Deck 38-Meter Roller Veneer Dryer
The 4-layer, 38-meter veneer dryer, a cutting-edge solution that combines advanced automation with exceptional efficiency and cost-effectiveness. This state-of-the-art dryer is equipped with both an Automatic Veneer Loading and Semi-Automatic Veneer Collecting system, reducing the labor requirement to approximately 3 people. This not only substantially lowers labor costs but also enhances overall work efficiency.
With an impressive effective working width of 4.5 meters, this dryer can efficiently dry an astounding 170-180 cubic meters of veneer per day. What's more, each fan of the machine consumes just 4 kilowatts of power, resulting in a mere about138 kilowatts of hourly energy consumption for the entire machine. This exceptional energy efficiency helps reduce operational costs significantly.
To further enhance its eco-friendliness, the dryer is equipped with a biomass burner capable of efficiently burning waste wood and bark. This innovative feature not only contributes to the reduction of drying costs but also minimizes environmental impact by utilizing renewable resources.
Product Parameters of Veneer Dryer Line
Model No | GTH45-38 |
Working Width | 4.5m |
Deck | 4 |
Heating area length | 34m |
Cooling area length | 4m |
Veneer thickness and size | 0.6-8mm |
Veneer water moisture | Fresh veneer to about 8-10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) | 170-180 |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power: 4KW（34pc） |
Traction motor | Power: 5.5KW，frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power: 11KW（2pc） |
10 ton biomass burner | Power: 16.5KW |
Total power | 212.5KW |
Actual electricity consumption | About 138kwh per hour |
Certificate
Our Service
Pre-sale services:
1) Provide the free consultation of all plywood machinery.
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
After sale services:
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging door to door service is possible.
