4-Deck Semi-Automatic Veneer Loading Roller Veneer Dryer

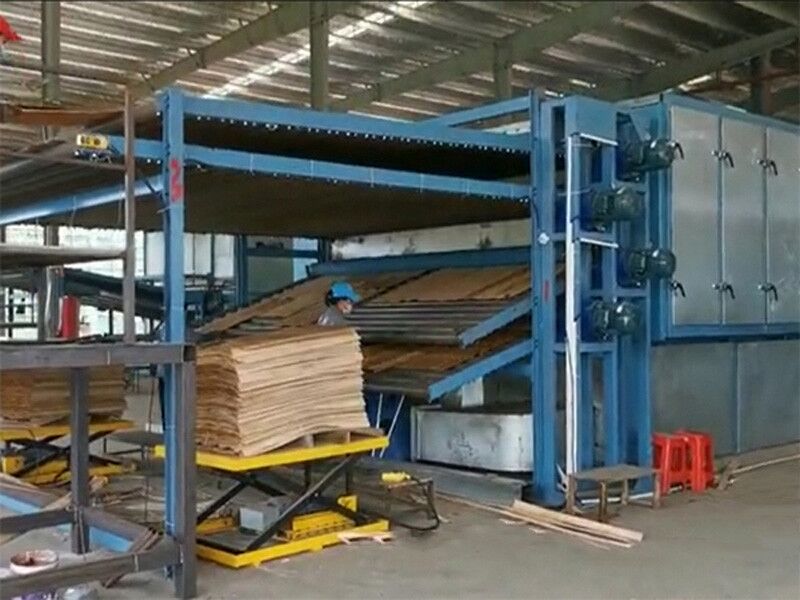

(1)Adopt Semi-Automatic Veneer Loading System which greatly decrease the labour cost and improve the working efficiency.
(2)Automatic electrical control system has the advantages of saving labor cost、simple operation and low failure rate whose main electrical components are international famous brand.
(3)The biomass burner is Shine’s patented product which can directly burn all kinds of waste wood and has the features of high productivity、energy efficiency、fuel saving and so on.Compared with steam burner and thermal oil burner,it can lower drying cost greatly.
Product Details
Product Introduction of 4-Deck Roller Veneer Dryer
4-Deck Roller Veneer Dryer has the features of high productivity、energy efficiency、lowest drying cost and perfect drying effect.
Firstly,the machine's working width is 4.5 meters and its length is 40 meters which contains 4 meters cold air region and 36 meters hot air region.It can dry 180 to 190 cubic meters veneer in 24 hours due to its large working width.Secondly,the machine's total power is 228.5KW and only cost around 149 killwatt hour electricity per hour.The machine is equipped with 15T Biomass Burner which can directly burn all kinds of waste wood such as waste branches and wood barks that the price is very lower than the hot source provided by thermal oil and steam.Whats more,The moisture content of the veneer after drying can be controlled within 10%, and the moisture content is very uniform.
Technical Parameters of 40m Semi-Automatic Veneer Dryer Machine
Model No | GTH45-40 |
Working Width | 4.5m |
Deck | 4 |
Heating area length | 36m |
Cooling area length | 4m |
Veneer thickness | 0.8-8mm |
Veneer water moisture | Fresh veneer to about 10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/24h) | 180-190cbm |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power:4KW（36pc） |
Traction motor | Power: 7.5KW，frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power : 11KW（2pc） |
6 ton biomass burner | Power: 16.5KW |
Total power | 228.5KW |
Actual electricity consumption | About 149kwh per hour |
Customer Case
South Africa Customer Installation Site
