4-Deck Roller Veneer Dryer

We have adopted automatic veneer loading and semi-automatic collection systems, reducing labor costs.

Adopt 4-kilowatt axial flow fans, resulting in a 38% reduction in overall power and a significant reduction in energy consumption.

The Biomass Burner can directly burn wet bark, reducing fuel costs compared with thermail oil and boiler.

Contact Now

Product Details

Product Introduction of 4-Deck 38m Wood Veneer Dryer Machine

4-Deck 38m Wood Veneer dryer adopts 15ton biomass burner which can provide sufficient heat for drying eucalyptus veneer.The dried veneer has high flatness, uniform moisture content which can lower to 0%.The veneer dried by Shine roller Veneer dryer has gained the favor of internationally renowned furniture manufacturers due to its high quality.

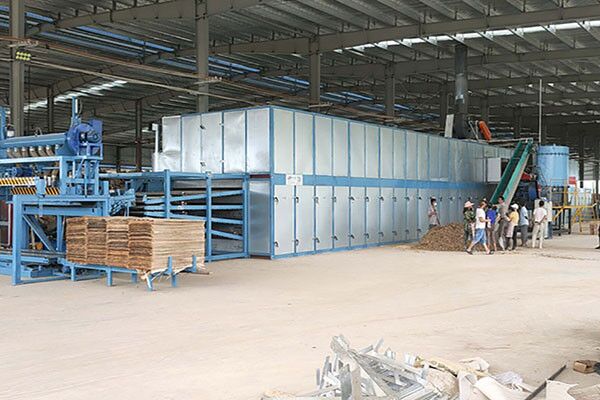

Roller Veneer Dryer.jpg

Product Parameters of 38 m Wood Veneer Dryer Machine

Model No	GTH30-38
Working Width	3.0m
Deck	4
Heating area length	34m
Cooling area length	4m
Veneer thickness and size	0.8-8mm
Veneer water moisture	Fresh veneer to about 8-10%
Heating material & drying temperature	Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.
Drying capacity (m³/day)	Around 120 m³
Veneer transport speed	5-22m/min，16A chain
Hot air blower	Power: 4KW（44pc）
Traction motor	Power: 5.5KW，frequency control（4pc）
Cold air blower	Power: 4KW（4pc）
Air intake fan	Power: 15KW（2pc）
15 ton biomass burner	Power: 16.5KW
Total power	220.5 KW
Actual electricity consumption	About 132kwh per hour
