4-Deck High Productivity Wood Drying Machine
(1)Shine biomass veneer burner has the features of high productivity、energy efficiency、lowest drying cost and perfect drying effect.
(2)The biomass burner is Shine’s patented product which can directly burn all kinds of waste wood and has the features of high productivity、energy efficiency、fuel saving and so on.Compared with steam burner and thermal oil burner,it can lower drying cost greatly.
(3)Low maintenance is required for Shine veneer dryer and no veneer jamming can reduce downtime.
Product Details

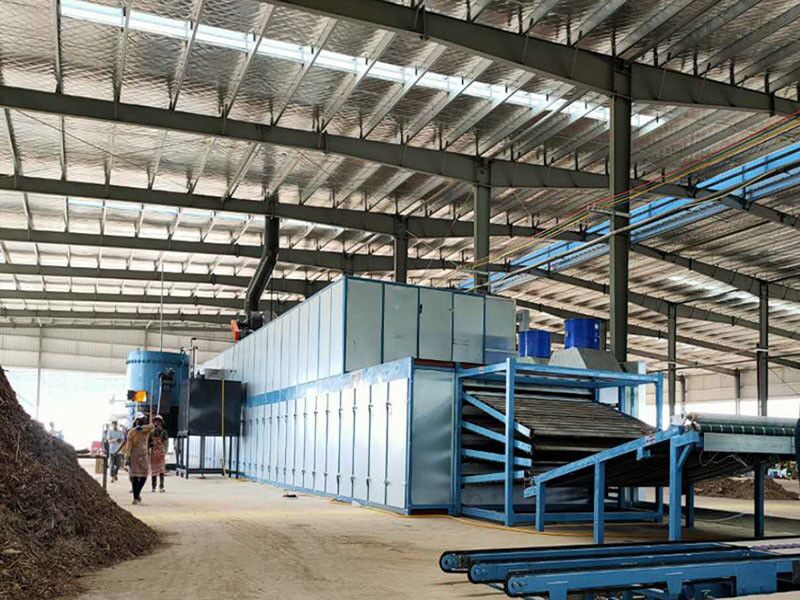

Product Introduction of 38m Veneer Drying Machine
The 38m Veneer Drying Machine adopts advaced technologies and has the advantages of low labour cost、low fuel cost and high productivity.
Our Roller Veneer Dryer has Automatic Veneer Loading System and Semi-Automatic Veneer Collection System which can reduce the number of workers collecting and loading boards to three people.For countries with extremely high labor costs, it greatly saves drying costs and improves drying efficiency.

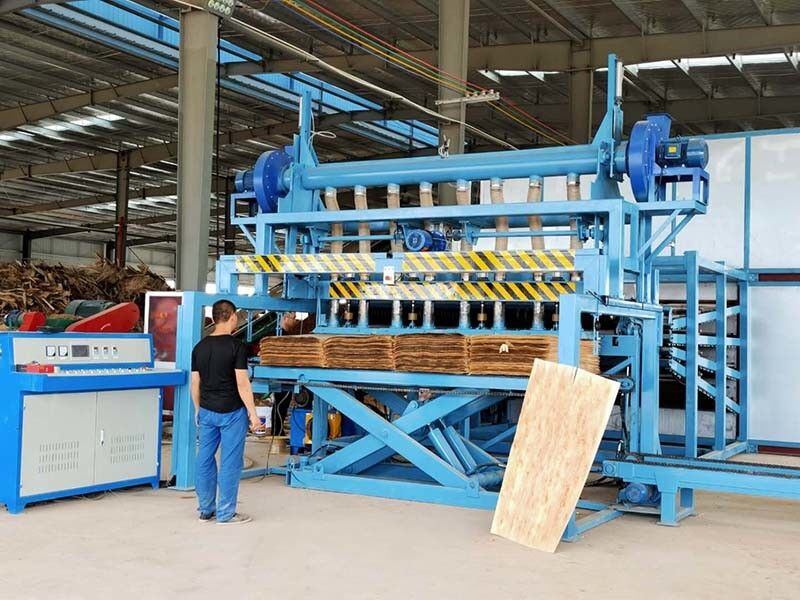

Automatic Veneer Loading Machine

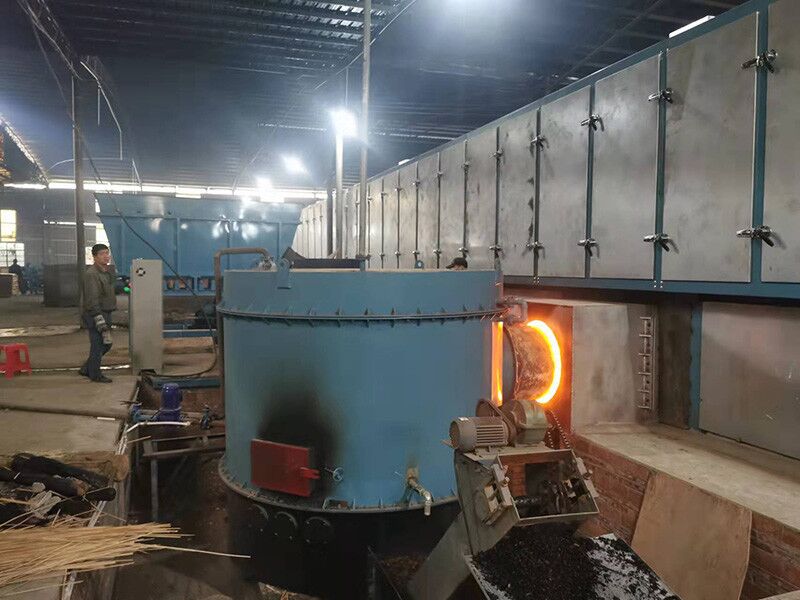

The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.This 4-story 38 meter dryer is equipped with a 10 ton biomass burner and can dry 110-120 cubic meters of veneer per day.
Product Parameters of Roller Veneer Dryer
Deck | 4 |
Heating area length | 34m |
Cooling area length | 4m |
Veneer thickness and size | 0.6-8mm |
Veneer water moisture | Fresh veneer to about 8-10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) | 120 |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power: 4KW（34pc） |
Traction motor | Power: 5.5KW，frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power: 11KW（2pc） |
10 ton biomass burner | Power: 16.5KW |
Total power | 212.5KW |
Actual electricity consumption | About 138kwh per hour |
Certification
Our Services
1) Provide the free consultation of all wood roller veneer dryer.
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory.
4) Inspect the machine before leaving the factory.
5) Oversea install and debug the equipment.
6) Train the first-line operator.
7) 24 hours online service.
8) Provide the VIDEO with Install and debug the equipment.
