2-Deck Working Width Customized Wood Drying Machine
(1)The biomass burner is Shine’s patented product which can directly burn all kinds of waste wood and has the features of high productivity、energy efficiency、fuel saving and so on.Compared with steam burner and thermal oil burner,it can lower drying cost greatly.
(2)The unique air duct design, appropriate roller diameter, and roller spacing ensure that the moisture content of the dried veneer is uniform, flat, without wrinkles and end ripples.
(3)Low maintenance is required for Shine veneer dryer and no veneer jamming can reduce downtime.
Product Details

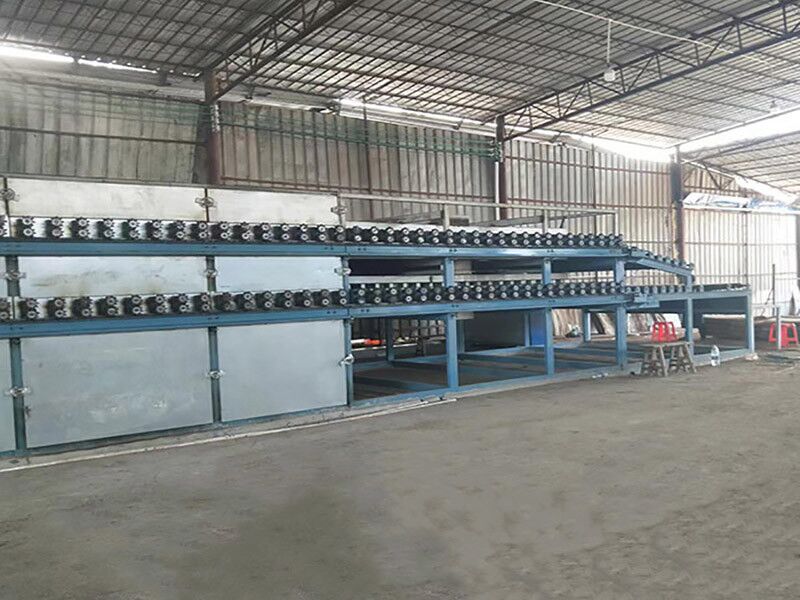

Product Introduction of 2-Deck 3.75-meter Wide Roller Veneer Dryer
Our dryer's working width can be customized according to customer needs.Usually,2-Deck Roller Veneer Dryer's standard width is 3 meters,but we can custimize the working width to 3.75 meter according customers' output.
The max length of 2-deck dryer can be 56 meters which means that it can dry 100-110cubicmeters veneer in 24 hours.Its overall power is only 138.5 kilowatts which only consumes 90 kilowatt hours of electricity per hour.Due to its low drying cost and high producitity,our Double-Layer Roller Veneer Dryer has won the favor of customers.
Product Parameter of Wood Dryer Machine
Model No | GTH375-56 |
Working Width | 3.75m |
Deck | 2 |
Heating area length | 52m |
Cooling area length | 4m |
Veneer thickness | 0.8-8mm |
Veneer water moisture | Fresh veneer to about 10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/24h) | 100-110cbm |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power:5.5KW（13pc） |
Traction motor | Power: 7.5KW，frequency control（2pc） |
Cold air blower | Power: 5.5KW（1pc） |
Air intake fan | Power : 15KW（2pc） |
6 ton biomass burner | Power: 16.5KW |
Total power | 138.5KW |
Actual electricity consumption | About 90 kwh per hour |
Certification
Our service
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
