4-Deck High Productivity Veneer Dryer with Semi-Auto Feeding
(1)Automatic electrical control system has the advantages of saving labor cost、simple operation and low failure rate whose main electrical components are international famous brand.
(2)Shine veneer dryer adopt inverter control which can adjust transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve drying effect.
(3)We have perfect after-sale system which can provide 24-hour online service and remote operation is available on request.Besides,we also visit customers regularly and Provide sufficient spare parts supply in time.
Product Details

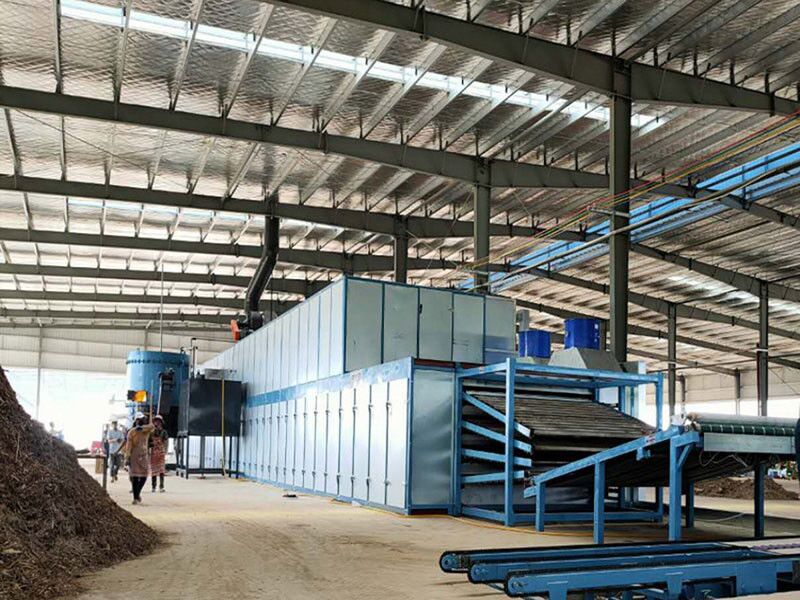

Product Introduction of 4-Deck 48m Roller Veneer Dryer
This 4-Deck 48m roller veneer dryer adopts the working width of 4.5 meters and a semi-auto Veneer Loading System, which has higher production capacity and wider application scenarios.
Firstly, the 4.5 meter working width ensures that it can almost dry all widths of core boards on the market. Secondly, its 4.5 meter working width and 48 meter length ensure satisfactory drying efficiency, capable of drying approximately 230 cubic meters of veneer in 24 hours. At the same time, it is equipped with a semi-automatic veneer loading system, which has a high degree of automation, which means it can dry various grades of veneers, including those with holes on the surface.
Product Parameters of 48 m Wood Veneer Dryer Machine
Model No | GTH45-48 |
Working Width | 4.5m |
Deck | 4 |
Heating area length | 44m |
Cooling area length | 4m |
Veneer thickness and size | 0.8-8mm |
Veneer water moisture | Fresh veneer to about 8-10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) | Around 230 m³ |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power: 4KW（44pc） |
Traction motor | Power: KW，7.5frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power: 15KW（2pc） |
10 ton biomass burner | Power: 16.5KW |
Total power | 268.5 KW |
Actual electricity consumption | About 175kwh per hour |
Certificate
Transportation
Our Serivce
1.According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
2.Welcome to visit our factory.
3.Inspect the machine before leaving the factory.
4.Oversea install and debug the equipment.
5.Train the first-line operator.
6.Provide the Video with Install and debug the equipment.
7.Provide technical exchanging.
8.Door to door service is possible.
