Plywood Roller Dryer Machine For Veneer
Shine heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger are different, and the hot air in the heat exchanger can be uniformly emitted to the veneer.The veneer after drying has uniform moisture content, flat, no buckle or end waviness; free of splits and the surface is in good condition for gluing.
Price
$170,000.00
Product Details
Plywood Roller Dryer Machine For Veneer
4 deck veneer dryer is our main product for high-end customers to meet the higher capacity requirements of customers,which has the salient features of higher drying capacity.The rollers use φ102 steel special shaft tube.The bearings of the 4 deck veneer dryer are featured high temperature 500 degree Celsius resistance and low temperature-20 degree Celsius resistance which no need injecting oil and easy maintenance in the daily operation.We have professional research team that can design different type Plywood Veneer Dryer accroding to customers requirements.
Advantages of Veneer Drying Machine
1.The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
2.The veneer after drying is free of splits and the surface is in good condition for gluing.
3.Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
4.Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
5.Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Parameter Model |
DHS20M
| DHS22M | DHS24M | DHS26M | DHS28M | DHS30M |
Work width（m） | 3 | 3 | 3 | 3 | 3 | 3 |
Deck | 4 | 4 | 4 | 4 | 4 | 4 |
Veneer thickness（mm） | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 | 0.6-8 |
Heating area （m）
| 16 | 18 | 20 | 22 | 24 | 26 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | About 3 | About 3.3 | About 3.6 | About 4 | About 4.4 | About 4.8 |
Heat exhaustion（10000 kcal/h） | About 105 | About115 | About126 | About140 | About 154 | About168 |
Total power (kw) about | 105 | 110 | 115 | 120 | 125 | 130 |
Overall size LxW（m） | 31*5.5 | 33*5.5 | 35*5.5 | 37*5.5 | 39*5.5 | 41.*5.5 |

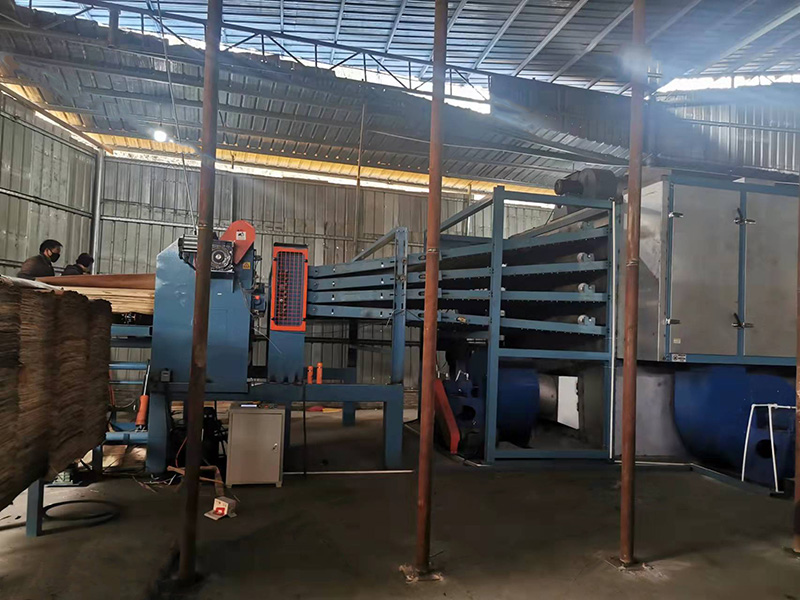

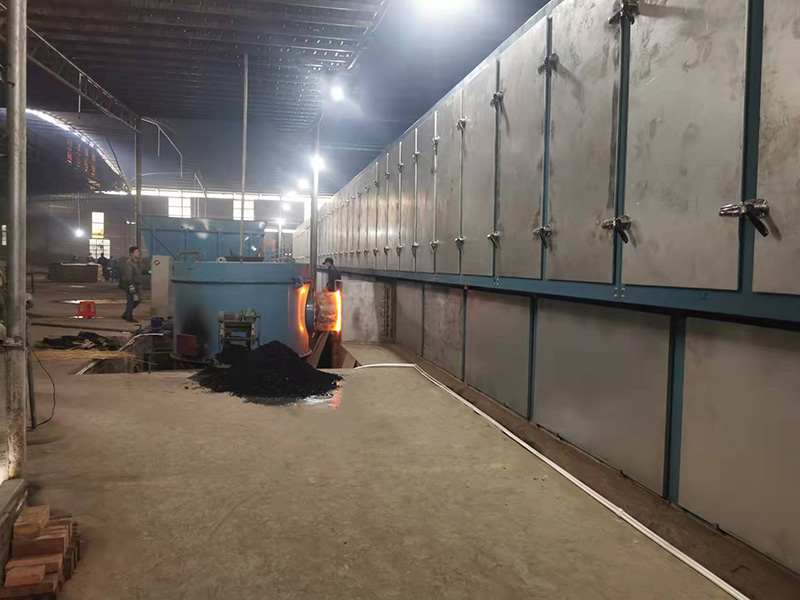

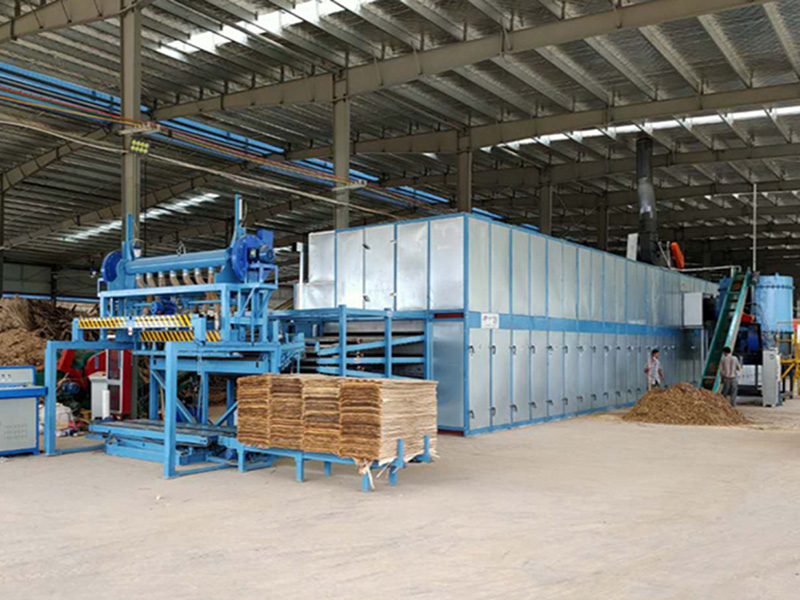

Customer Case
Exhibitions and Customer Visits
Our Services
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
