Shine 2024 Customized Veneer Dryer Machinery

Automatic Veneer Dryer:

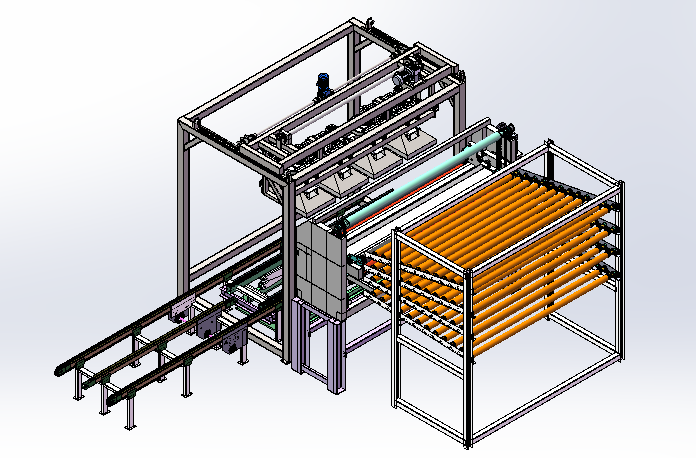

The dryer consists of four layers of conveying rollers, with reasonably arranged internal partitions and infusion systems to ensure the even flow of hot air.

Each layer of rollerconveys the veneer through the upper and lower pressure rollers to ensure unobstructed veneer conveyingunobstructed veneer conveying, thus ensuring the continuous operation of the euipment.The running speed of the equipment is controlled by frequency conversion.

The veneer drying process consists of two parts: heating by air duct blowing and contact heating by upper and lower pressure rollers, the double heating improves the heating

efficiency. The core control unit is equipped with high-precision sensors to collect temperature,humidity and other data,which are analyzed and regulated in real time by PLC.

The drying temperature adjustable within the range of 160-180°C and temperature control precision of ±5°C.  High-temperature type temperature and humidity sensors are installed in each section of the dryer, The collected temperature and humidity signals are automatically processed to achieve automatic adjustment of drying temperature and relative humidity.  Upper limits of temperature and humidity can be freely set, and real-time collection and historical recording of temperature and humidity signals are maintained.

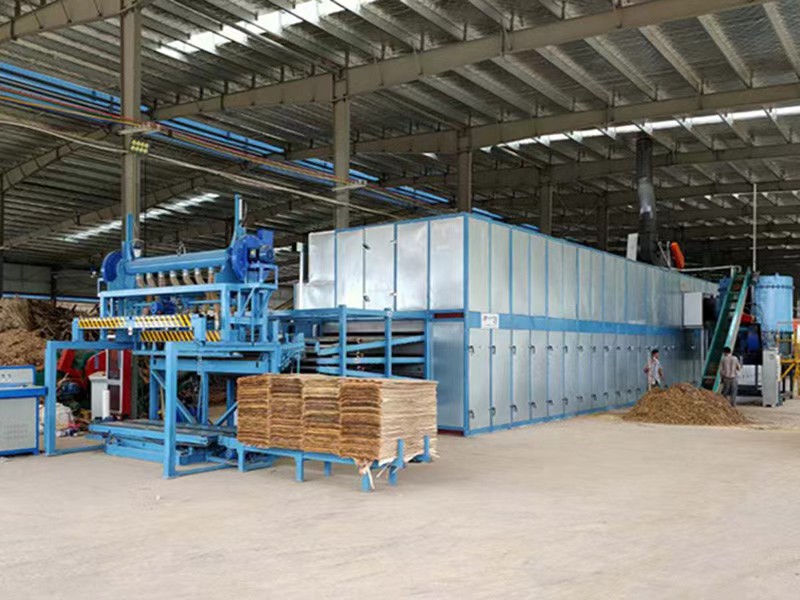

Automatic veneer feeding reduces the probability of veneer misalignment caused by manual feeding, ensuring smooth and stable movement of single boards inside the dryer, thus avoiding potential blockage risks. Additionally, it significantly reduces manual labor and intensity, thereby improving production efficiency.

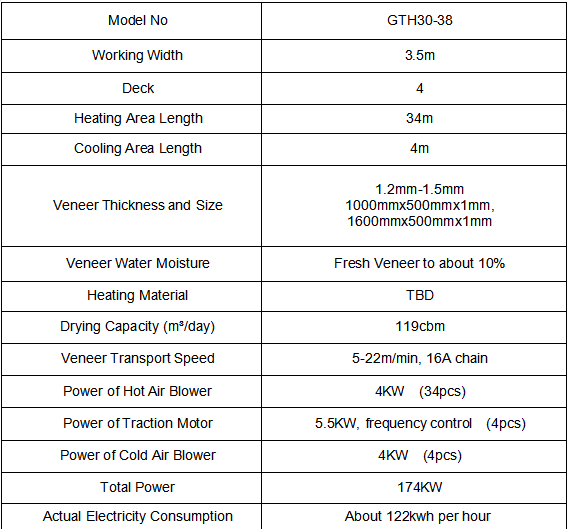

Product Parameters of Automatic Veneer Dryer

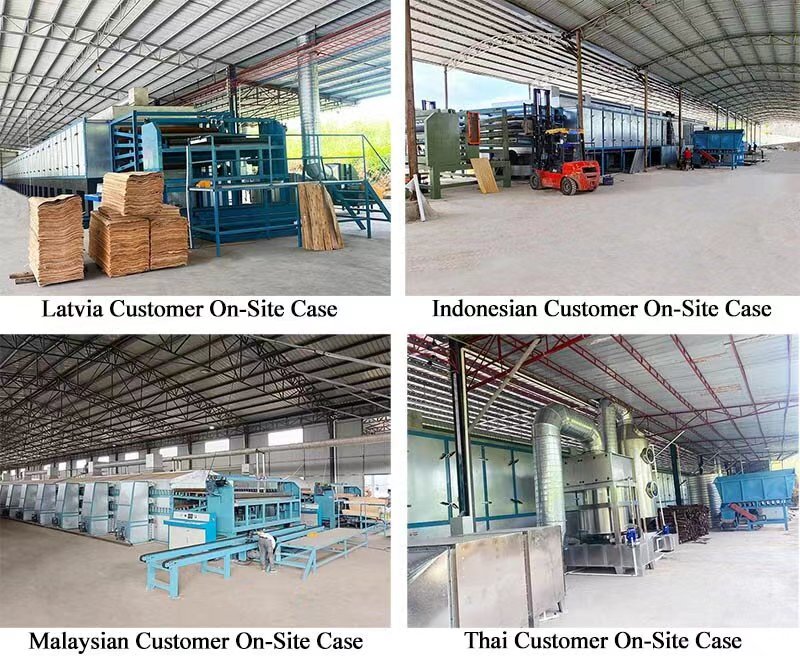

Customer Case

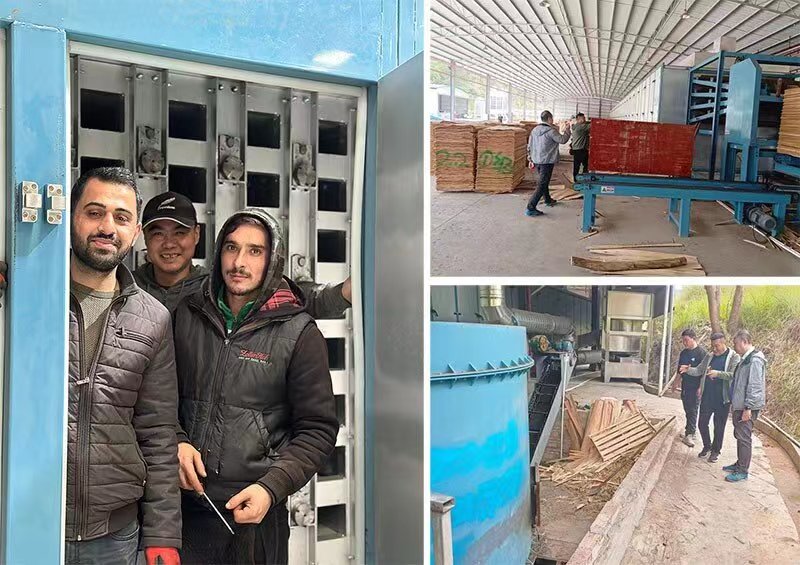

The Installation

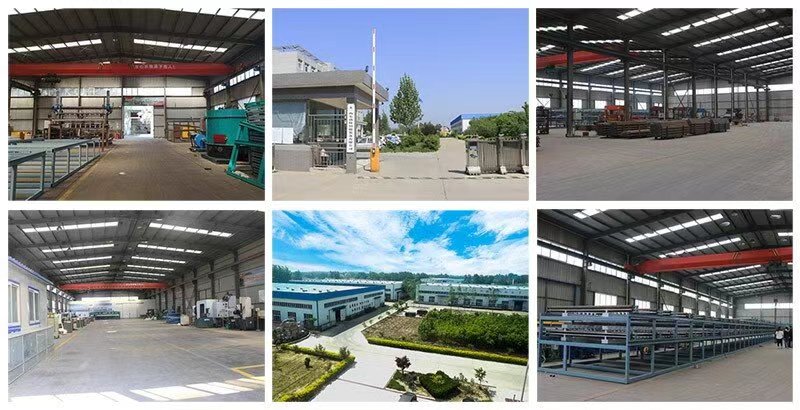

The factory

Packaging and Shipping
