2-Deck 44 Roller Veneer Dryer

Energy saving. Using a 4KW axial flow fan, the overall power has decreased by over 35%.

Low card rate, easy to maintain. The upper roller is easy to disassemble and easy to maintain in case of jamming.

The fan adopts a high-temperature resistant design, which avoids the occurrence of short circuits and even fires caused by high temperature, and has high safety.

Contact Now

Product Details

Product Introduction of 2-Deck 44m Wood Veneer Dryer Machine

The 2-Deck 44m Roller Veneer adopts 3.75m working width and can accommodate 5 pieces of 67cm wide veneer at a time.It can dry 80-90 cubic meters per day.Due to the good drying effect and high flatness of the veneer, our equipment has received high praise from customers and has become one of the sites visited by potential customers.

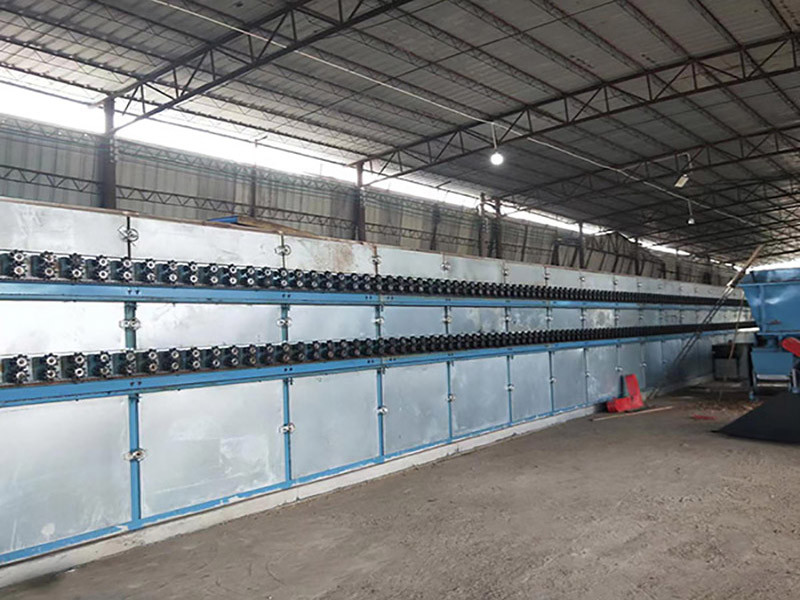

Roller Veneer Dryer.png

Product Parameters of 2-Deck 44m Wood Veneer Dryer Machine

Model No	GTH375-44
Working Width	3.75m
Deck	2
Heating area length	40m
Cooling area length	4m
Veneer thickness and size	0.8-8mm
Veneer water moisture	Fresh veneer to about 8-10%
Heating material & drying temperature	Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.
Drying capacity (m³/day)	Around 85 m³
Veneer transport speed	5-22m/min，16A chain
Hot air blower	Power: 5.5KW（8pc）
Traction motor	Power: KW，7.5frequency control（2pc）
Cold air blower	Power: 5.5KW（1pc）
Air intake fan	Power: 11KW（2pc）
Total power	86.5KW
Actual electricity consumption	About 60kwh per hour
