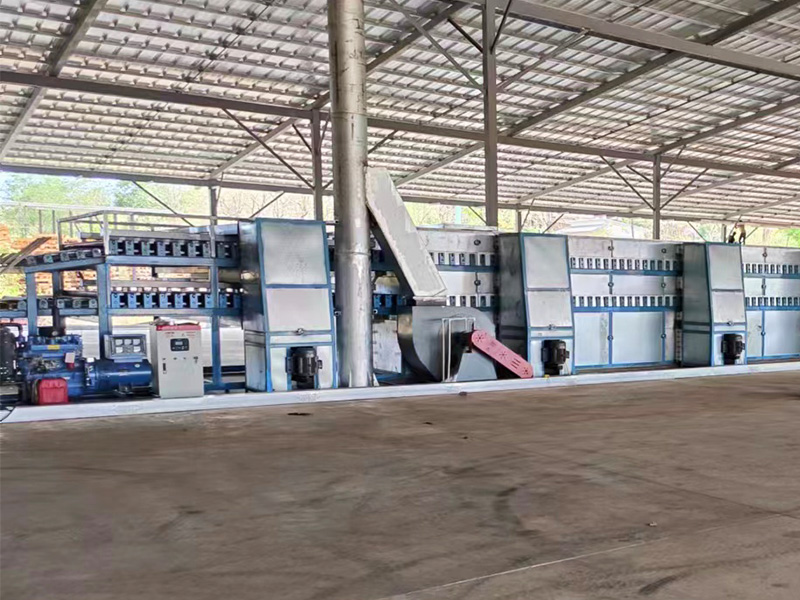

2-Deck 48m Roller Veneer Dryer in Thailand
Adopting an inverted trapezoidal serrated structure, while ensuring uniform distribution of hot air on both sides of the veneer, the probability of veneer jaming occurrence is reduced.
Provide customized services. The working width can be adjusted according to the drying output and veneer size, and the number of cold and hot air zones and cold and hot air fans can be flexibly adjusted according to different countries and regions.
Product Details
Product Introduction of 2-30 m Wood Veneer Dryer Machine
We not only have rich experience in drying rubber wood veneer but also have rich technical accumulation in the field of eucalyptus drying.As is well known, eucalyptus has a high moisture content and is a relatively difficult wood species to dry.We have adopted a 6-ton biomass burner for this, which can directly burn waste wood, providing sufficient heat while reducing drying costs.Meanwhile, the variable frequency motor and temperature control system provide the desired speed and temperature for eucalyptus drying.The double-layer 48 meter configuration ensures that it can dry about 60 cubic meters of eucalyptus veneer in 24 hours.
Product Parameters of 40 m Wood Veneer Dryer Machine
Model No | GTH45-48 |
Working Width | 4.5m |
Deck | 4 |
Heating area length | 44m |
Cooling area length | 4m |
Veneer thickness and size | 0.8-8mm |
Veneer water moisture | Fresh veneer to about 8-10% |
Heating material & drying temperature | Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) | Around 230 m³ |
Veneer transport speed | 5-22m/min，16A chain |
Hot air blower | Power: 4KW（44pc） |
Traction motor | Power: KW，7.5frequency control（4pc） |
Cold air blower | Power: 4KW（4pc） |
Air intake fan | Power: 15KW（2pc） |
10 ton biomass burner | Power: 16.5KW |
Total power | 268.5 KW |
Actual electricity consumption | About 175kwh per hour |
Certificate
Transportation
Our Serivce
1.According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
2.Welcome to visit our factory.
3.Inspect the machine before leaving the factory.
4.Oversea install and debug the equipment.
5.Train the first-line operator.
6.Provide the VIDEO with Install and debug the equipment.
7.Provide technical exchanging.
8.Door to door service is possible.
