4-Deck 40m Roller Veneer Dryer

The use of independently developed biomass combustion furnaces can directly burn wet bark, reducing drying costs.

High precision roller, with a straightness of no more than 0.5 millimeters and an ellipticity of no more than 0.1 millimeters, reduces the occurrence of jamming.

Contact Now

Product Details

Product Introduction of 2-30 m Wood Veneer Dryer Machine

The 4-Deck 40m Roller Veneer Dryer is equipped with a 15 ton biomass burner, with a working width of 4.5 meters, and can dry about 190 cubic meters of veneer in 24 hours. The automatic waste wood feeding machine can control the feeding speed based on the temperature control system, thereby controlling the single board transmission speed and moisture content.

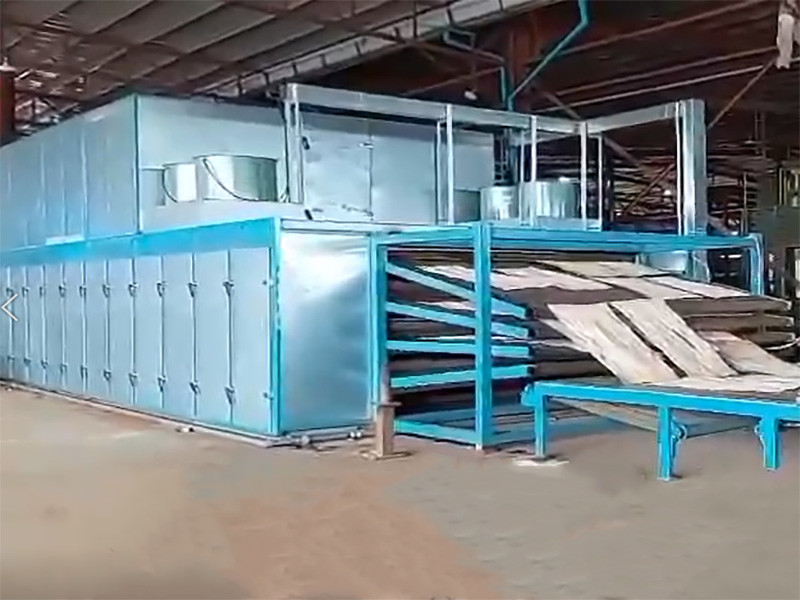

Roller Veneer Dryer.png

Product Parameters of 40 m Wood Veneer Dryer Machine

Model No	GTH45-40
Working Width	4.5m
Deck	4
Heating area length	36m
Cooling area length	4m
Veneer thickness and size	0.8-8mm
Veneer water moisture	Fresh veneer to about 8-10%
Heating material & drying temperature	Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.
Drying capacity (m³/day)	Around 190 m³
Veneer transport speed	5-22m/min，16A chain
Hot air blower	Power: 4KW（36pc）
Traction motor	Power: KW，5.5requency control（4pc）
Cold air blower	Power: 4KW（4pc）
Air intake fan	Power: 15KW（2pc）
15 ton biomass burner	Power: 16.5KW
Total power	228.5 KW
Actual electricity consumption	About 160kwh per hour
