2-Deck 30m Roller Veneer Dryer

Low veneer Jaming Rate:Firstly, we adopted high-precision rollers with a straightness of no more than 0.5 millimeters and an ellipticity of no more than 0.1 millimeters. Secondly, our air duct adopts an inverted trapezoidal serrated structure, which reduces the jamming rate. Meanwhile, we use high-temperature resistant stainless steel bearings for smooth and smooth operation.

Contact Now

Product Details

Product Introduction of 2-30 m Wood Veneer Dryer Machine

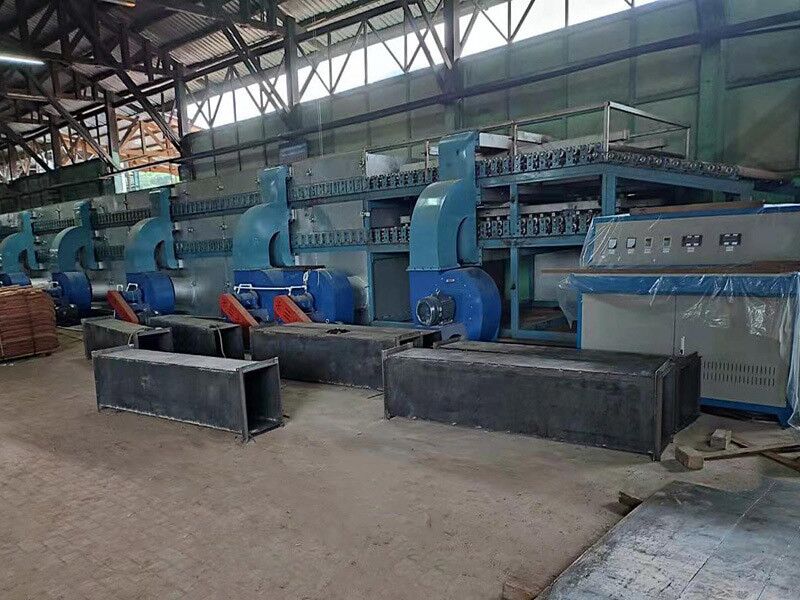

We provide not just one device, but a complete set of services. This device was installed in 2023 and is currently in the trial operation phase. Due to the absence of a crusher installed on site, the waste wood is currently mainly purchased from the market, resulting in a shortage of fuel. In view of this, we recommended the crusher manufacturer to the customer and believe that the equipment will be able to operate normally soon.

Roller Veneer Dryer.jpg

Product Parameters of 2-Deck 30m Wood Veneer Dryer Machine

Model No	GTH30-30
Working Width	3m
Deck	2
Heating area length	28m
Cooling area length	2m
Veneer thickness and size	0.8-8mm
Veneer water moisture	Fresh veneer to about 8-10%
Heating material & drying temperature	Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.
Drying capacity (m³/day)	Around 50 m³
Veneer transport speed	5-22m/min，16A chain
Hot air blower	Power: 5.5KW（7pc）
Traction motor	Power: KW，5.5frequency control（2pc）
Cold air blower	Power: 5.5KW（1pc）
Air intake fan	Power: 11KW（1pc）
4 ton biomass burner	Power: 16.5KW
Total power	82.5KW
Actual electricity consumption	About 60kwh per hour
